ENGINE TUNE-UP PROCEDURE

B-5prose procedure
Continued from B-4

PREPARATION

SST

ENGINE OIL

Inspection

  1. 1
    Be sure the vehicle is on level ground.
  2. 2
    Warm up the engine to normal operating temperature and stop it.
  3. 3
    Wait for five minutes.
  4. 4
    Remove the oil level gauge and check the oil level and condition.

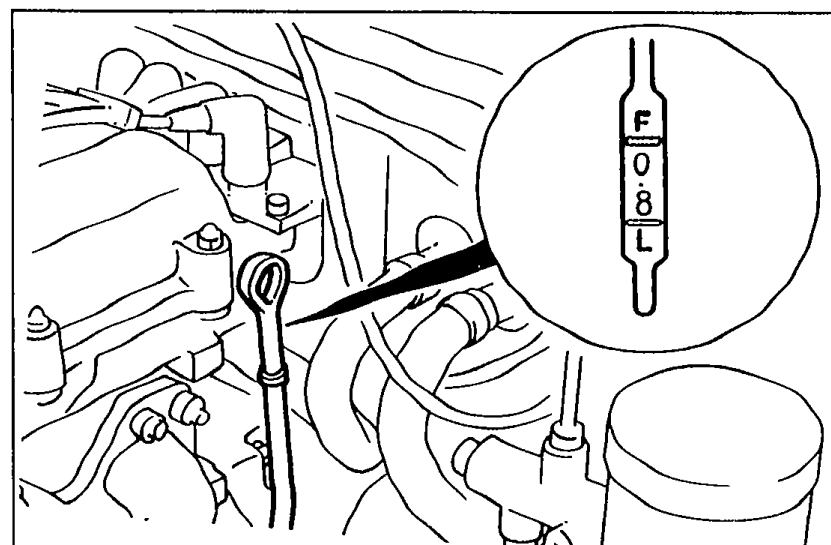

    Engine oil dipstick removed from engine bay with inset close-up showing oil level gauge marked F (Full) and L (Low).
    05U0BX-006
  5. 5
    Add or replace oil if necessary.
    The distance between the L and F marks on the level gauge represents 0.8 liter (0.85 US qt, 0.70 Imp qt).

ENGINE COOLANT

Inspection

Coolant level (engine cold)

Coolant level (engine cold)

  1. 1
    Verify that the coolant level is near the radiator filler neck.

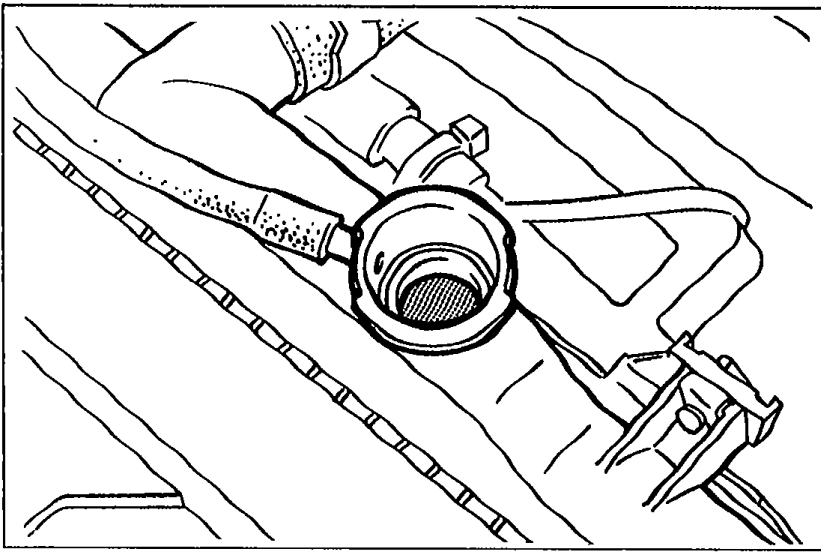

    Engine bay view showing radiator filler neck/cap area for checking coolant level.
    05U0BX-007
  2. 2
    Verify that the coolant level in the coolant reservoir is between the FULL and LOW marks.

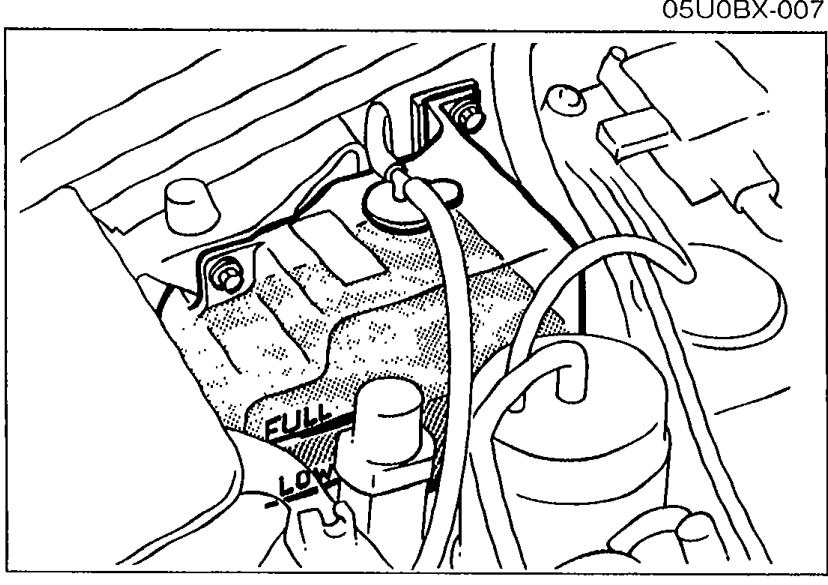

    Engine bay view showing coolant reservoir tank with FULL and LOW level marks visible.
    05U0BX-008
  3. 3
    Add coolant if necessary.

Coolant quality

  1. 1
    Verify that there is no buildup of rust or scale around the radiator cap or radiator filler neck.
  2. 2
    Verify that the coolant is free of oil.
  3. 3
    Replace the coolant if necessary.

DRIVE BELT

Inspection

  1. 1
    Remove the air intake pipe.
  2. 2
    Check the drive belts for wear, cracks, and fraying. Replace if necessary.

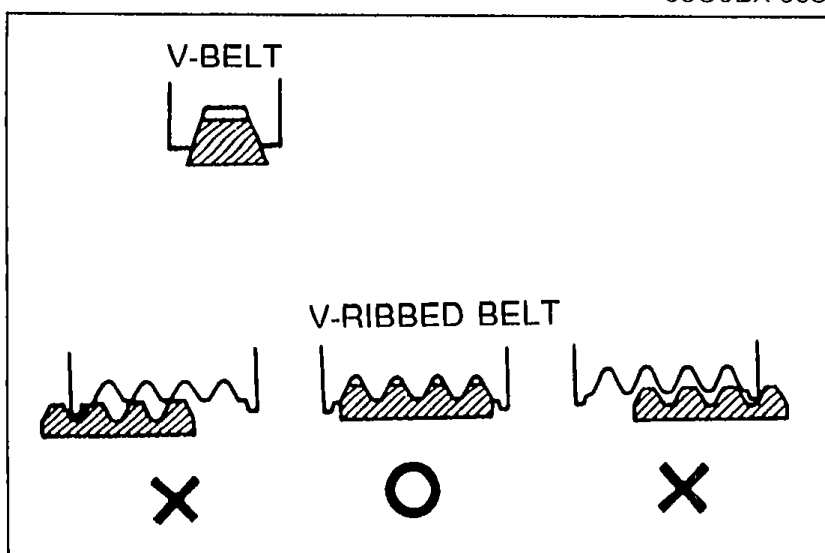

    Drive belt cross-section/inspection illustration. Top: V-BELT cross-section profile. Bottom: V-RIBBED BELT with three examples marked X (wrong), O (correct), X (wrong) showing acceptable wear patterns.
    05U0BX-009
  3. 3
    Verify that the drive belts are correctly mounted on the pulleys.
