Cylinder Head Cover

  1. 1
    Apply silicone sealant to the shaded areas shown in the figure.

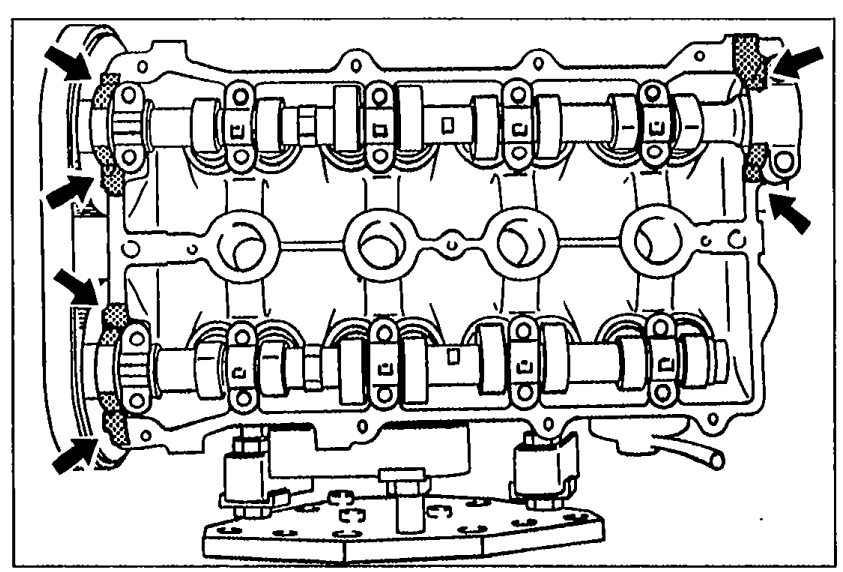

    Top view of the cylinder head with the cover removed, showing the camshafts. Shaded areas with arrows at the corners indicate where silicone sealant should be applied before installing the cylinder head cover.
    05U0BX-232
  2. 2
    Install the cylinder head cover.
Tightening torque (cylinder head cover)
4.9 - 8.8N·m

Crankshaft Pulley

Crankshaft Pulley

  1. 1
    Install the timing belt inner guide plate.

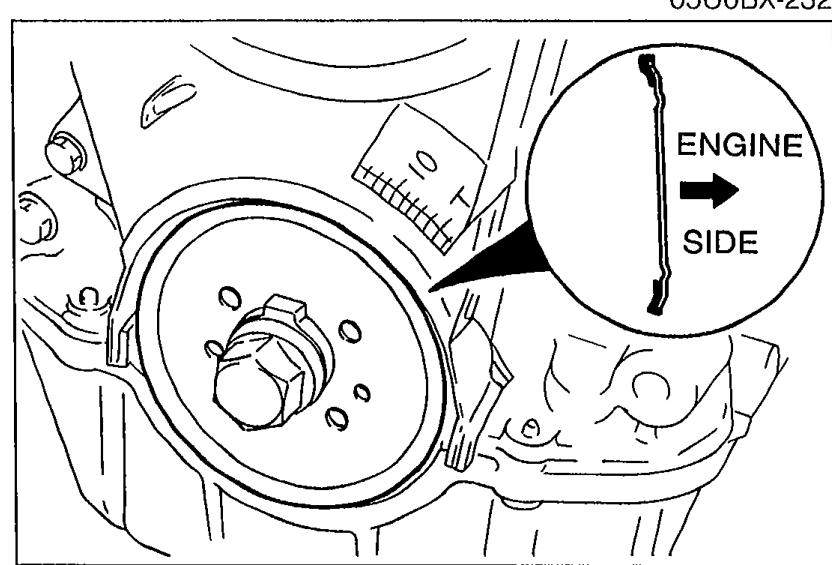

    Timing belt inner guide plate installed at the crankshaft. An 'ENGINE SIDE' label with arrow shows the proper orientation of the guide plate.
    05U0BX-233
  2. 2
    Install the timing belt outer guide plate.
  3. 3
    Install the crankshaft pulley.

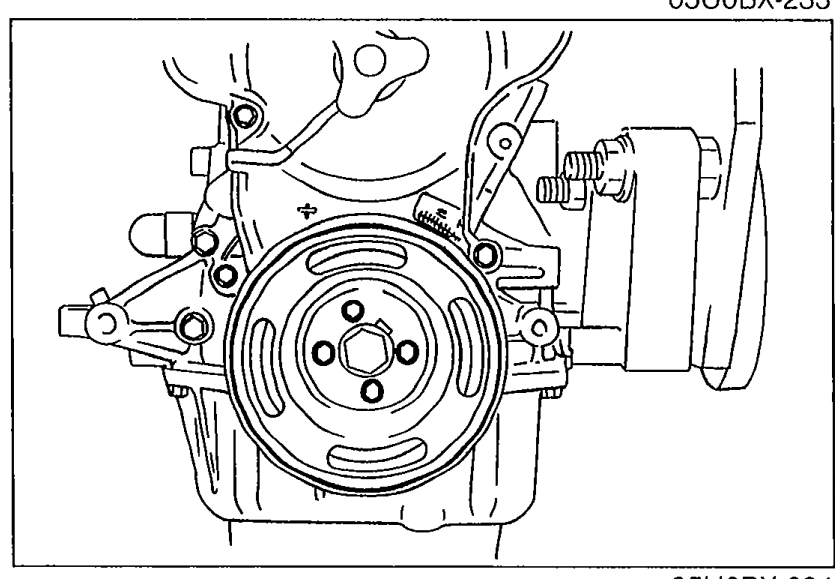

    Crankshaft pulley installed on the engine. Front view of the pulley with belt grooves visible.
    05U0BX-234
  4. 4
    Install the plate.
  5. 5
    Tighten the lock bolts with the SST.

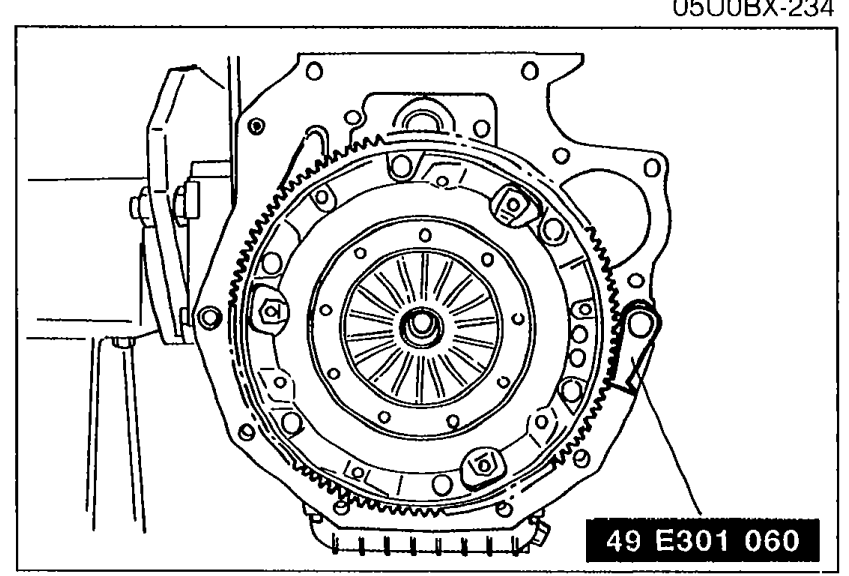

    SST (49 E301 060) installed on the flywheel/crankshaft pulley area to hold it while tightening the lock bolts. Tool number label '49 E301 060' visible at the bottom.
    05U0BX-235
  6. 6
    Remove the SST.
Tightening torque (lock bolts with SST)SST
12 - 17N·m

Water Pump Pulley

  1. 1
    Install the water pump pulley.

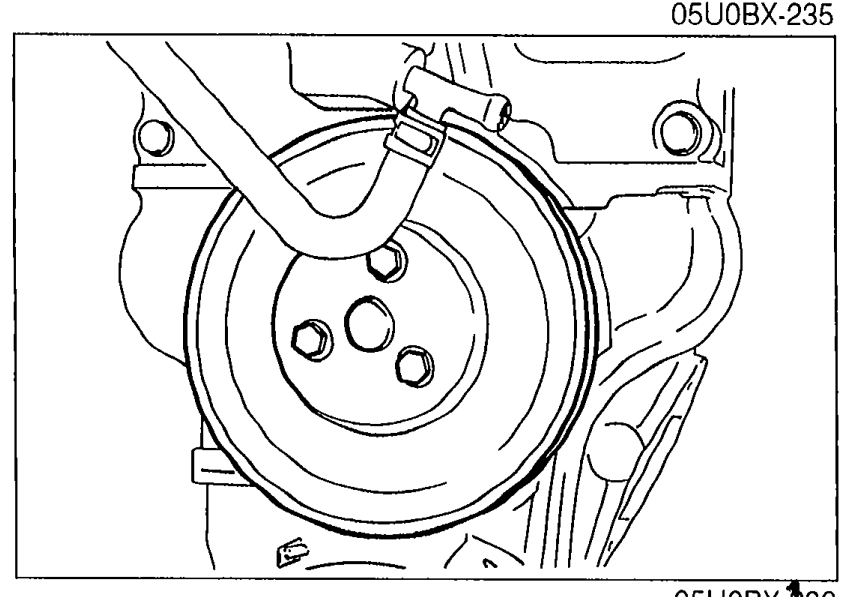

    Water pump pulley installed on the front of the engine.
    05U0BX-236
Tightening torque (water pump pulley)
7.8 - 11N·m
