Mazda MX-5 NA silhouetteMX-5 NA

DISASSEMBLY

B-42prose procedure
Continued from B-41

Valve seal

  1. 1

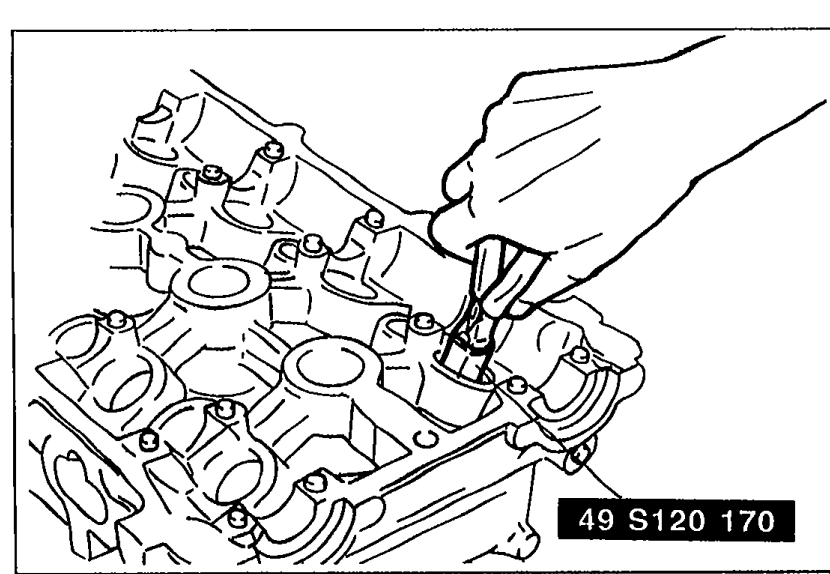

    Remove the valve seal with the SST.
    Cylinder head shown with a hand using SST 49 S120 170 (valve seal remover) pliers to grip and remove a valve seal from the valve guide.
    05U0BX-102
