Mazda MX-5 NA silhouetteMX-5 NA

ASSEMBLY

B-68prose procedure
Continued from B-67

Oil Pump Installation (continued)

  1. 5

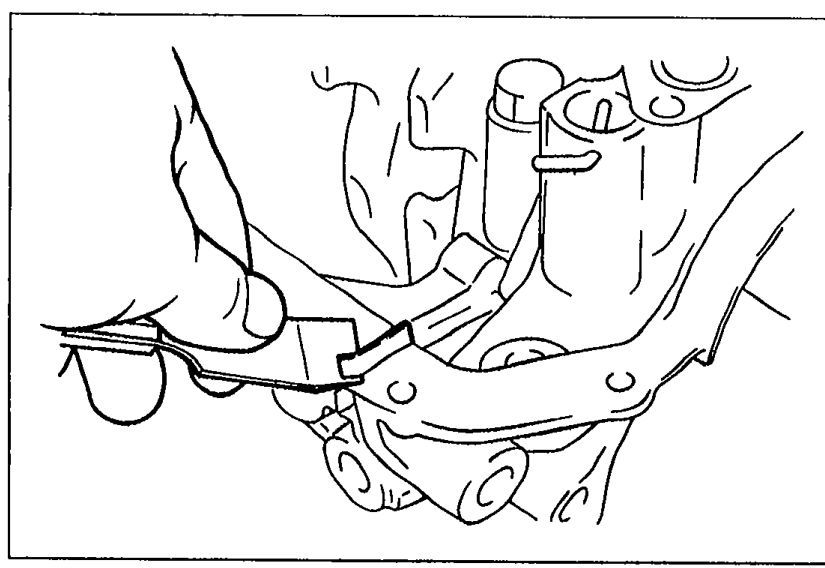

    Cut away the portion of the gasket that projects from the body toward the oil pan side.
    A hand using a cutting tool to trim the excess oil pump gasket protruding from the body toward the oil pan side.
    05U0BX-204

Water Pump

Water Pump Installation

  1. 1
    Remove all foreign material from the water pump mounting surface.

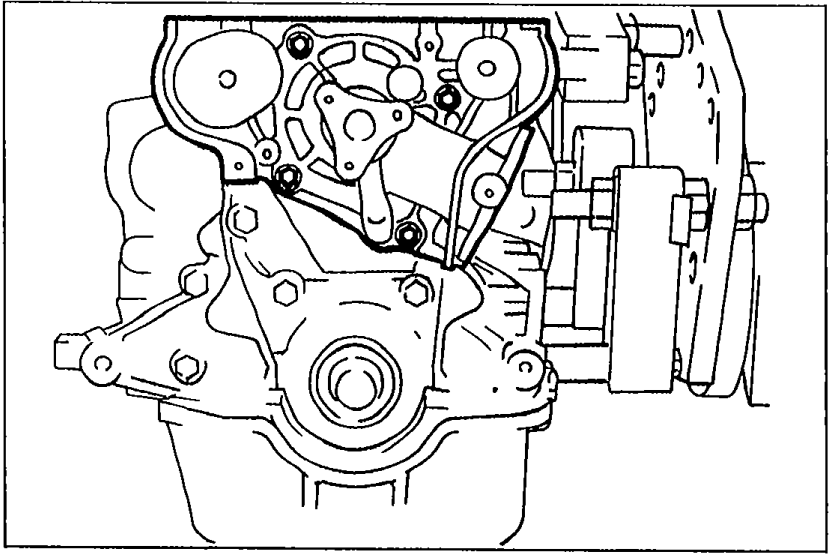

    Water pump installed on the cylinder block front showing the pump body, mounting bolts and gasket interface.
    05U0BX-205
  2. 2
    Install the water pump and a new gasket.
water pump
186 - 245N·m

Oil Pan Baffle

Oil Pan Baffle Installation

  1. 1
    Remove all foreign material from the contact surfaces.

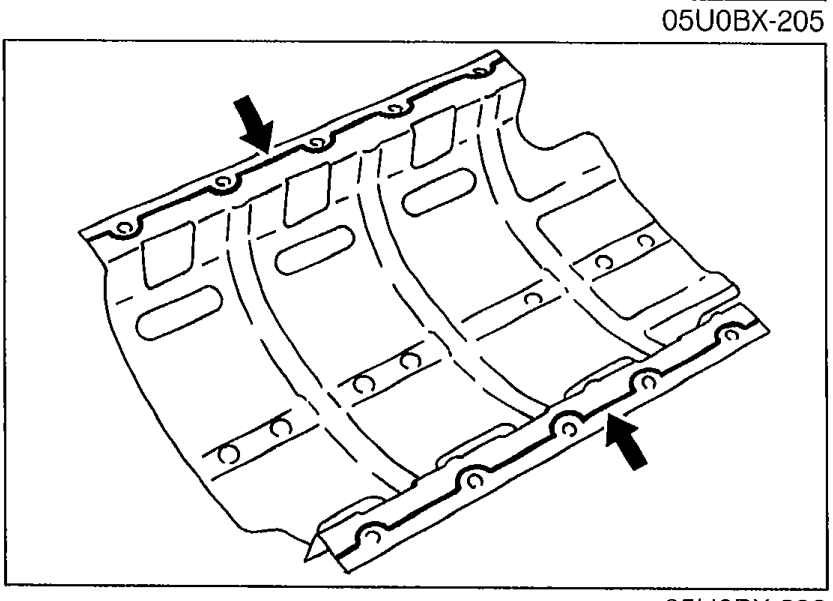

    Oil pan baffle plate showing mounting holes with arrows pointing to where silicone sealant is applied along the inside of the bolt holes.
    05U0BX-206

Oil Pan Baffle Installation (continued)

  1. 2
    Apply a continuous bead of silicone sealant to the baffle along the inside of the bolt holes.
  2. 3
    Install the baffle.

Oil Strainer

Oil Strainer Installation

  1. 1

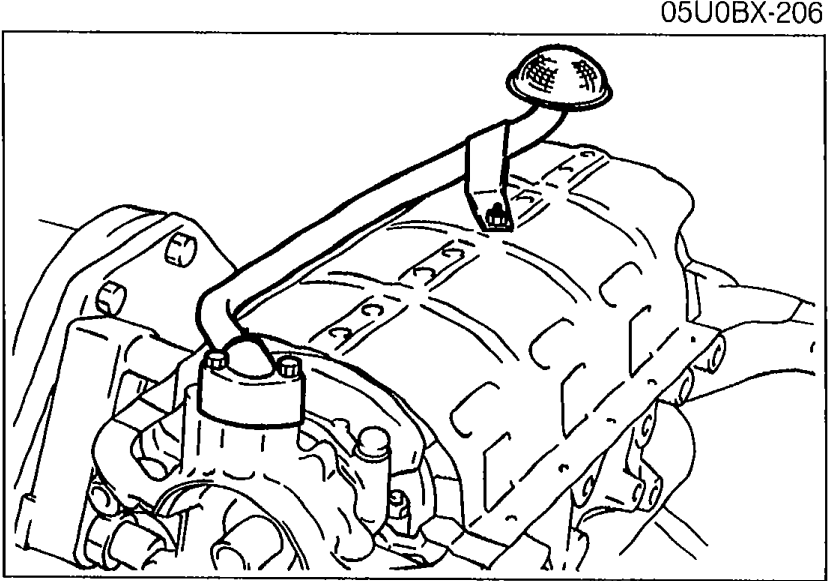

    Install the oil strainer and a new gasket.
    Oil strainer installed on the bottom of the engine block, with the strainer tube and mounting flange visible.
    05U0BX-207
oil strainer
76 - 108N·m

Oil Pan

Oil Pan Installation

  1. 1
    Remove all foreign material from the contact surfaces.

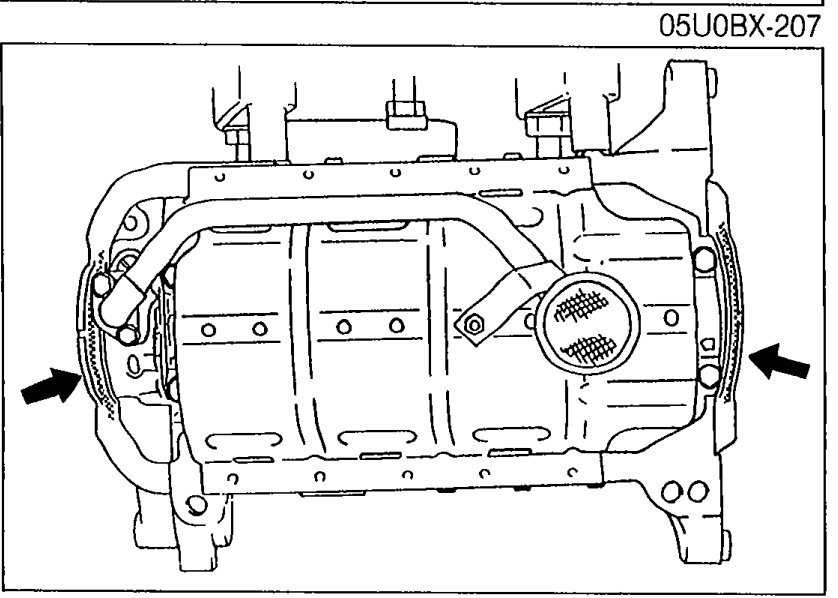

    Oil pan viewed from below with arrows pointing to shaded areas where silicone sealant is to be applied to the mating surface.
    05U0BX-208
  2. 2
    Apply silicone sealant to the shaded areas shown in the figure.
