INSTALLATION

B-86prose procedure
Continued from B-85

Power plant frame

  1. 1
    Install the power plant frame. (Refer to page J-45.)

Engine mount nut

  1. 1
    Tighten the engine mount nuts.
    Tightening torque: 57—78 N·m (5.8—8.0 m-kg, 42—58 ft-lb)

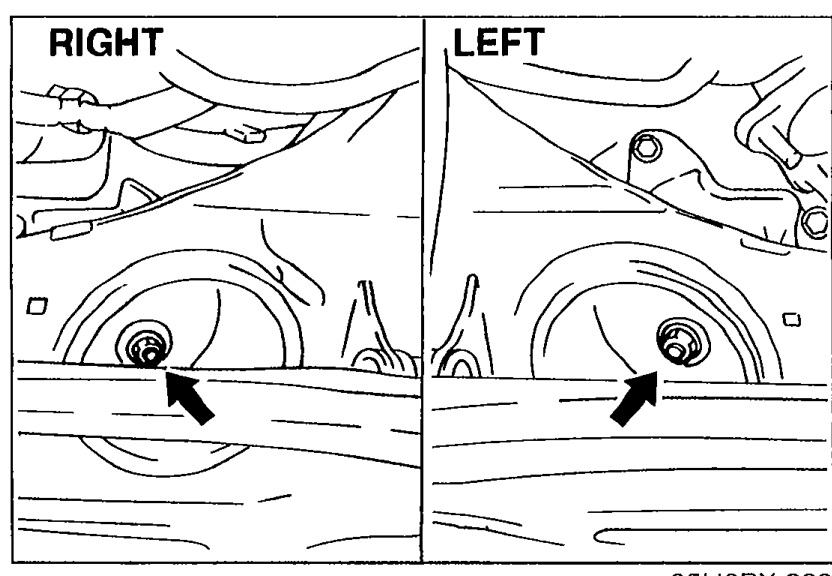

    Split-pane underbody view of the engine mount locations labelled 'RIGHT' (left half) and 'LEFT' (right half). Arrows in each pane point to the engine mount nut location.
    05U0BX-263

Propeller shaft, speedometer cable, and shift knob

  1. 1
    Install the propeller shaft, speedometer cable, and shift knob. (Refer to page J-45.)

Transmission harness

  1. 1
    Connect the transmission harness.

Clutch release cylinder

  1. 1
    Install the clutch release cylinder.
    Tightening torque: 19—25 N·m (1.9—2.6 m-kg, 14—19 ft-lb)

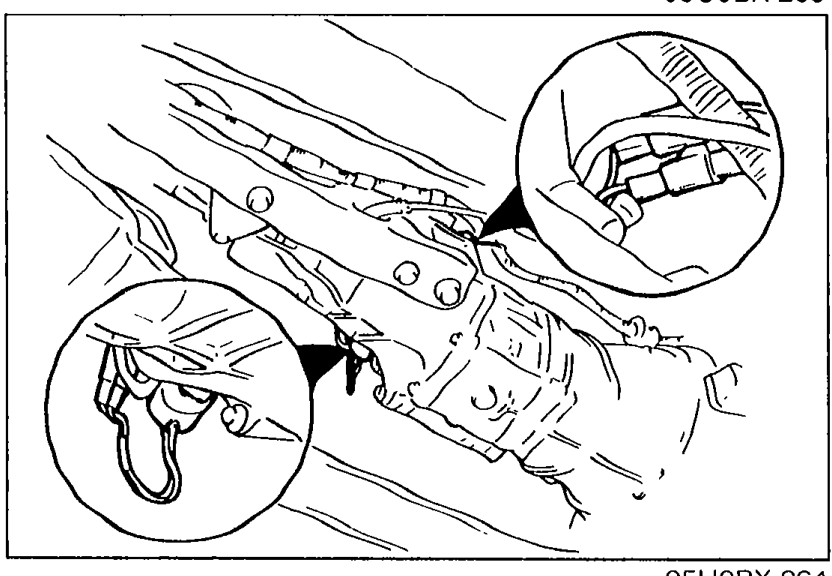

    View of the clutch release cylinder area on the transmission with a magnified inset circle highlighting the cylinder mounting on the bell-housing.
    05U0BX-264

Exhaust pipe

  1. 1
    Install the exhaust pipe assembly. (Refer to page F-115.)
