ENGINE STAND DISMOUNTING
B-83prose procedureP/S Oil Pump Bracket

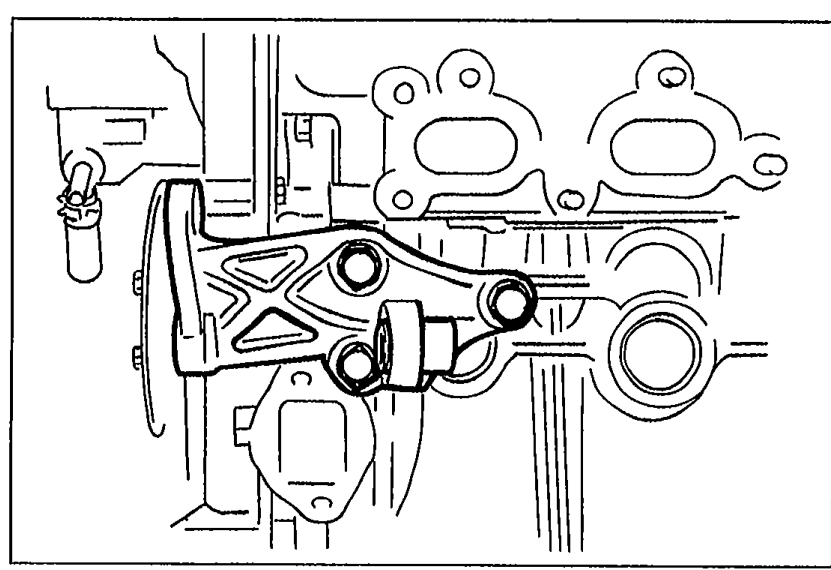

- 1Install the P/S oil pump bracket.
05U0BX-253
| Specification | Value |
|---|---|
| Tightening torque (P/S oil pump bracket) | 37 - 52N·m |
Tightening torque (P/S oil pump bracket)
37 - 52N·m
Idler
- 1Install the A/C idler.
| Specification | Value |
|---|---|
| Tightening torque (A/C idler) | 37 - 52N·m |
Tightening torque (A/C idler)
37 - 52N·m
Water Inlet Pipe and Bypass Pipe

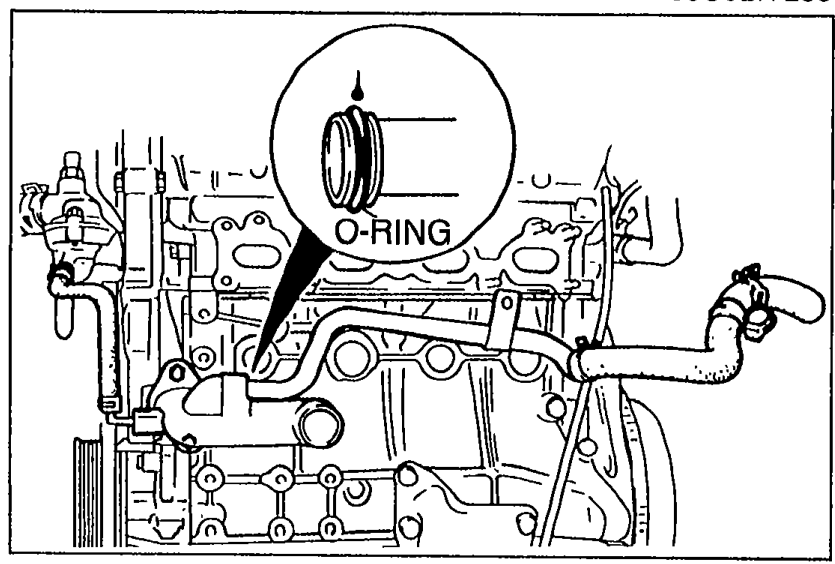

- 1Remove all foreign material from the water inlet pipe mounting surface.
05U0BX-254 - 2Install a new gasket and the water inlet pipe.
- 3Apply a small amount of engine coolant to the new O-ring.
- 4Install the water bypass pipe.
| Specification | Value |
|---|---|
| Tightening torque (water inlet pipe) | 19 - 25N·m |
Tightening torque (water inlet pipe)
19 - 25N·m
A/C Compressor Bracket

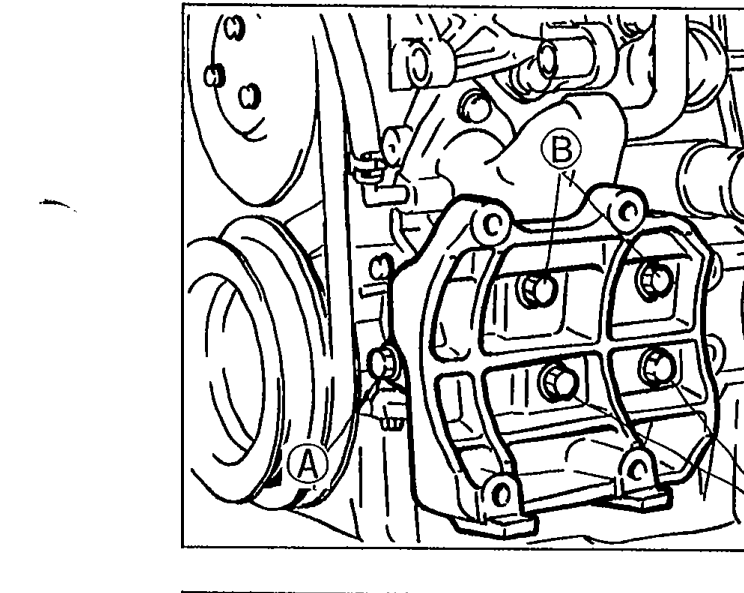

- 1Install the A/C compressor bracket.
05U0BX-255
| Specification | Value |
|---|---|
| Tightening torque (A): A/C compressor bracket boltsA | 19 - 25N·m |
| Tightening torque (B): A/C compressor bracket boltsB | 37 - 52N·m |
Tightening torque (A): A/C compressor bracket boltsA
19 - 25N·m
Tightening torque (B): A/C compressor bracket boltsB
37 - 52N·m
Exhaust Manifold

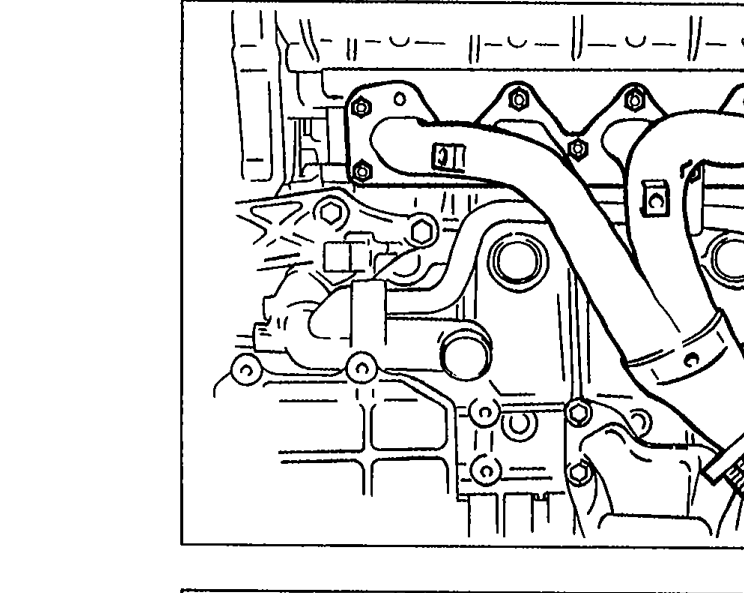

- 1Remove all foreign material from the exhaust manifold contact surface.
05U0BX-256 - 2Install a new gasket and the exhaust manifold.
| Specification | Value |
|---|---|
| Tightening torque (exhaust manifold) | 38 - 46N·m |
Tightening torque (exhaust manifold)
38 - 46N·m
Exhaust Manifold Insulator

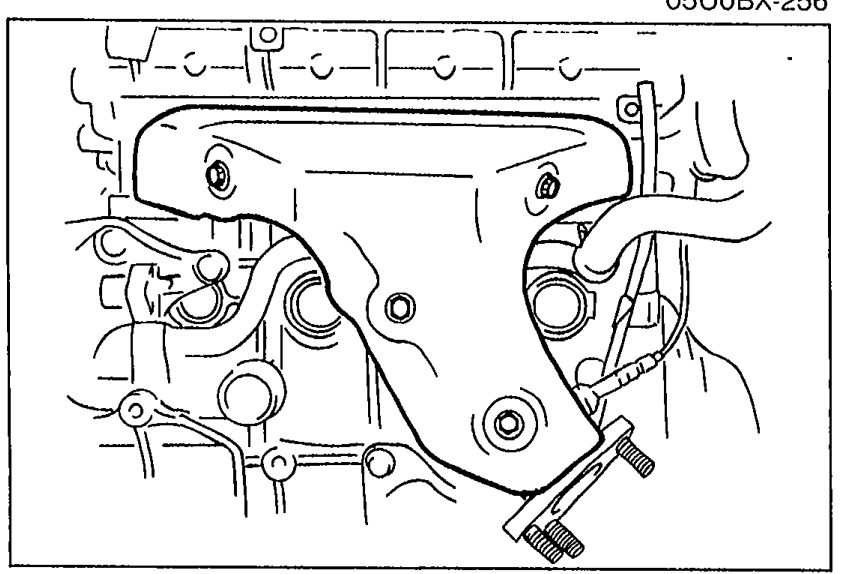

- 1Install the exhaust manifold insulator.
05U0BX-257
| Specification | Value |
|---|---|
| Tightening torque (exhaust manifold insulator) | 7.8 - 11N·m |
Tightening torque (exhaust manifold insulator)
7.8 - 11N·m
