ENGINE STAND DISMOUNTING
B-82parts diagramPROCEDURE
Engine Stand Dismounting Procedure
- 1Remove the engine from the SST (engine stand).
- 2Remove the SST (engine hanger) from the engine.

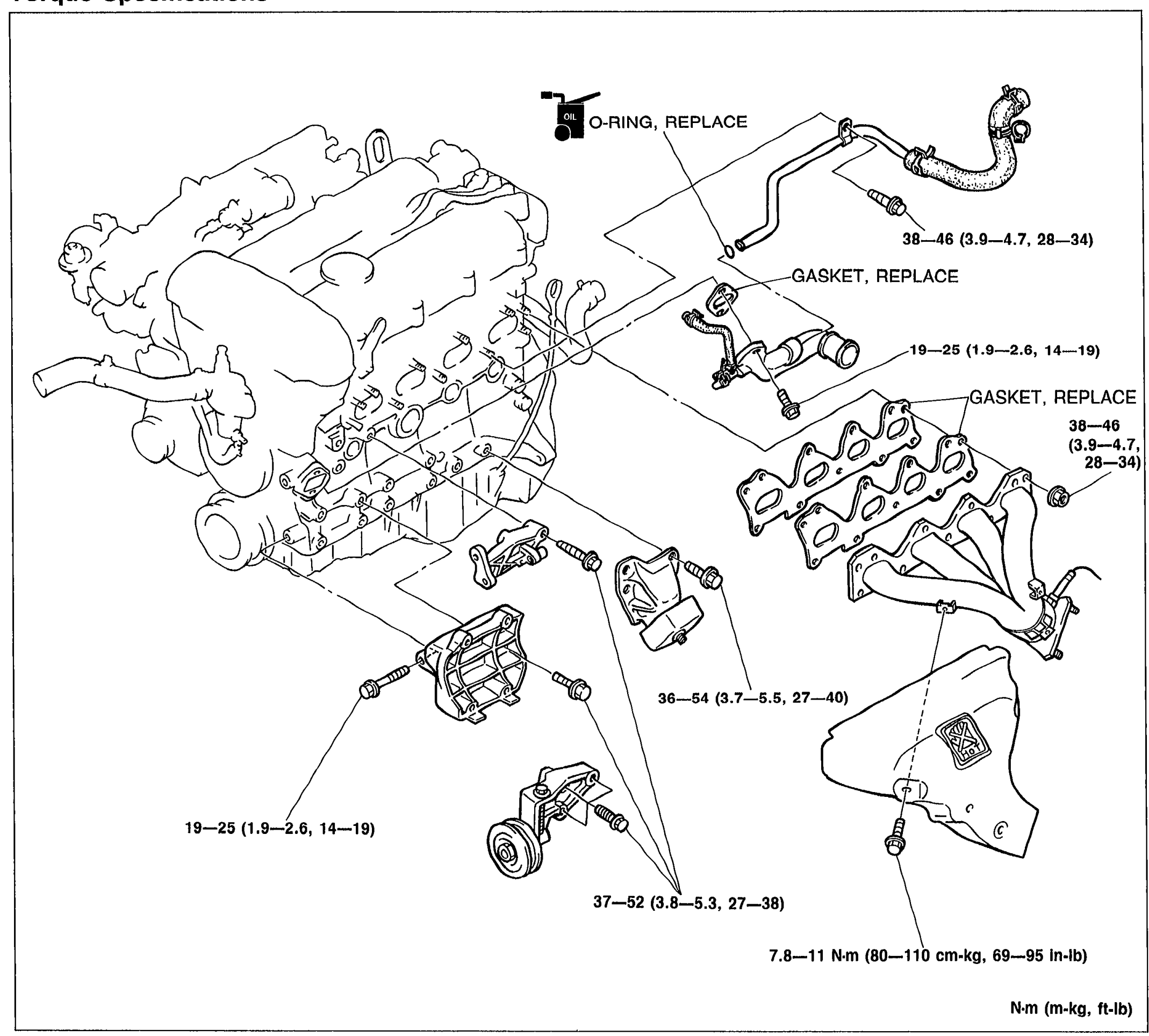

- 3Install the parts shown in the figure.
05U0BX-251
Torque Specifications
| Specification | Value |
|---|---|
| Exhaust pipe / connector flange bolts | 38 - 46N·m |
| Small connector / manifold-to-pipe bolts | 19 - 25N·m |
| Exhaust manifold mounting bolts | 38 - 46N·m |
| Mount/bracket bolts | 36 - 54N·m |
| Tensioner / pulley bolts | 37 - 52N·m |
| Heat shield bolts | 7.8 - 11N·m |
Exhaust pipe / connector flange bolts
38 - 46N·m
Small connector / manifold-to-pipe bolts
19 - 25N·m
Exhaust manifold mounting bolts
38 - 46N·m
Mount/bracket bolts
36 - 54N·m
Tensioner / pulley bolts
37 - 52N·m
Heat shield bolts
7.8 - 11N·m
NOTE
Replace gaskets and O-rings where indicated in the figure.

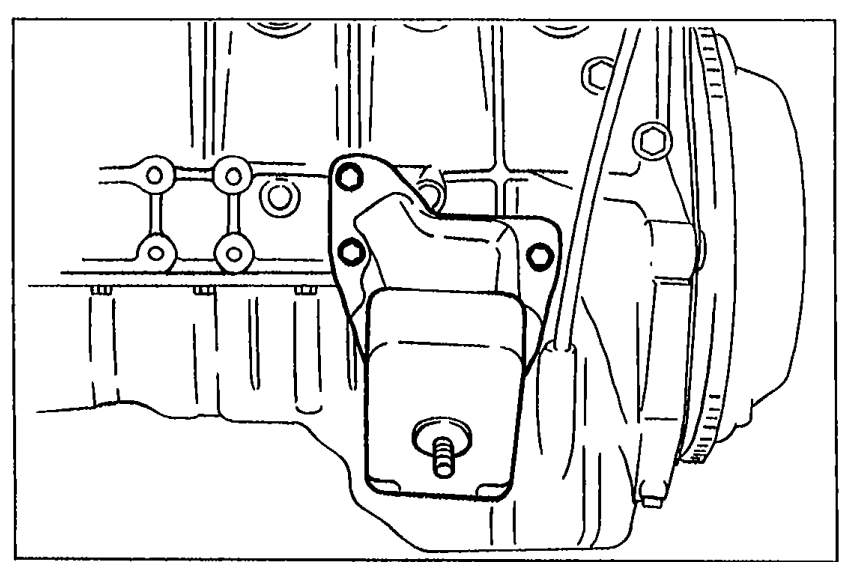

Left Engine Mount
- 1Install the left engine mount.
05U0BX-252
| Specification | Value |
|---|---|
| Tightening torque (left engine mount) | 36 - 54N·m |
Tightening torque (left engine mount)
36 - 54N·m
