ASSEMBLY

B-66parts diagram

5
Apply a liberal amount of clean engine oil to the crankpin journals and connecting rod bearings.
05U0BX-197
6

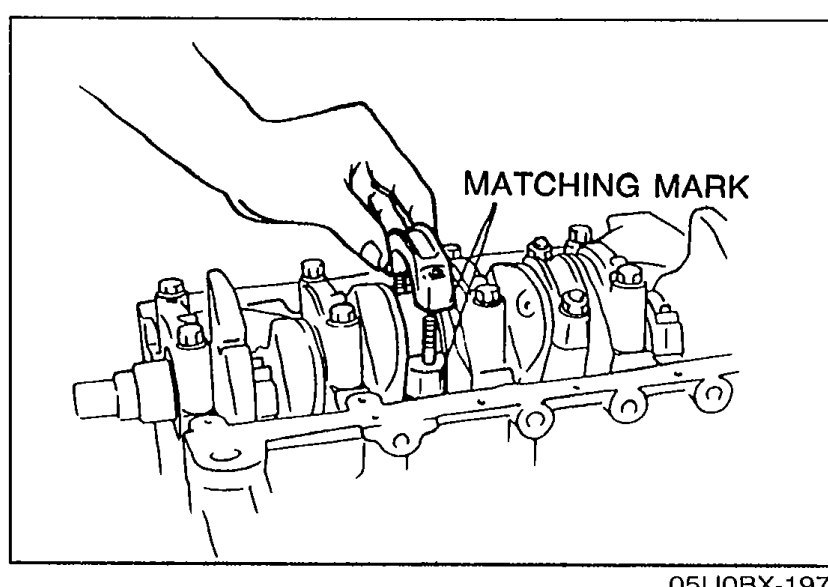

Install the connecting rod caps with the matching marks aligned.
7
Tighten the connecting rod cap nuts in two or three steps.

Specification	Value
connecting rod cap nuts	≈490 - 530N·m

connecting rod cap nuts

490 - 530N·m

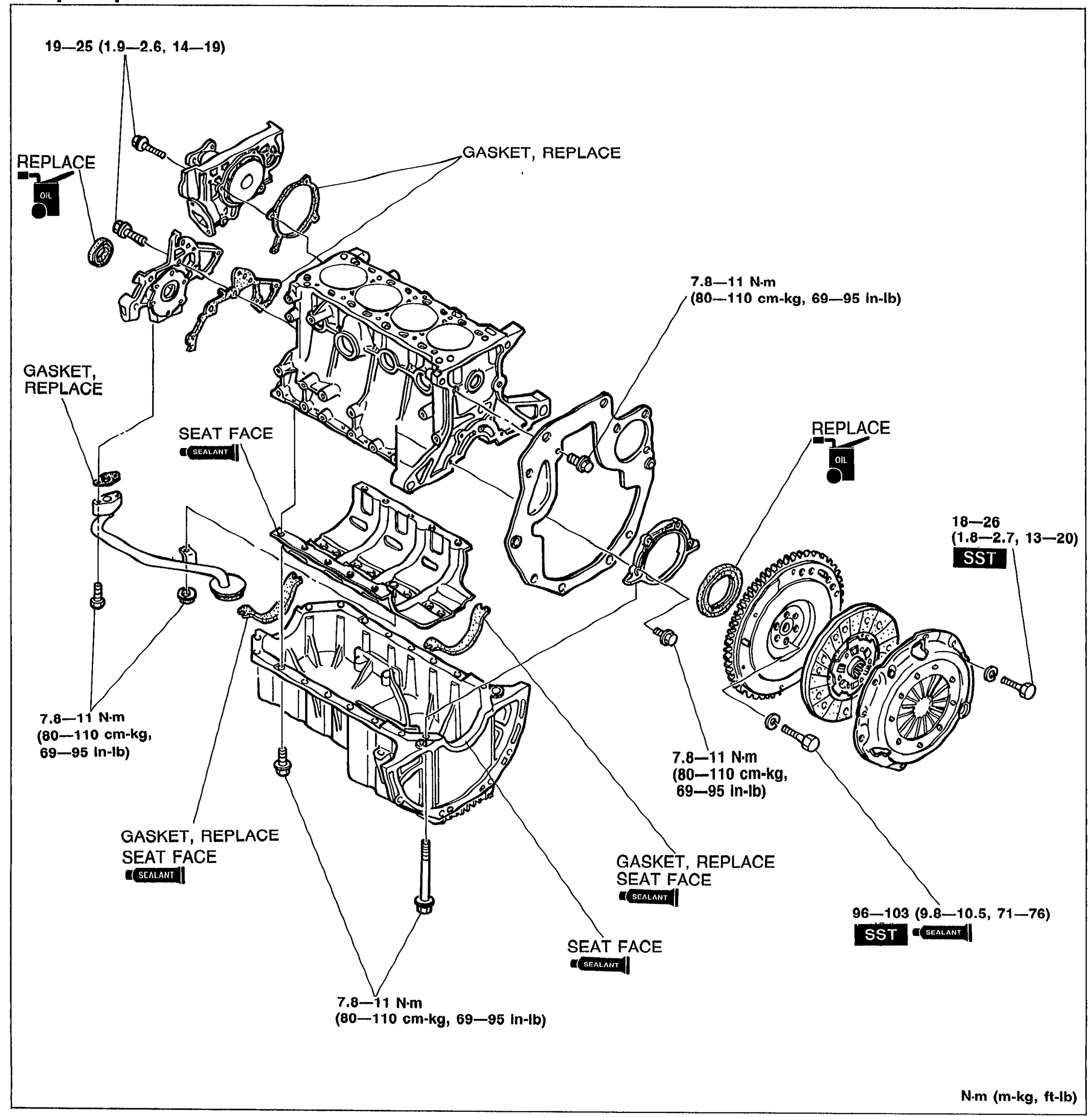

CYLINDER BLOCK (EXTERNAL PARTS)

Parts DiagramFig. fig2

Part Name	Notes

Location / Fastener	Tightening Torque	Note
Top front cover bolts	19—25 N·m (1.9—2.6 m-kg, 14—19 ft-lb)	—
Front cover / oil pump bolts	7.8—11 N·m (80—110 cm-kg, 69—95 in-lb)	—
Oil pan bolts	7.8—11 N·m (80—110 cm-kg, 69—95 in-lb)	Gasket replace, seat face sealant
Clutch pressure plate bolts	18—26 N·m (1.9—2.7 m-kg, 13—20 ft-lb)	SST required
Flywheel bolts	96—103 N·m (9.8—10.5 m-kg, 71—76 ft-lb)	SST required

Top front cover bolts

Tightening Torque19—25 N·m (1.9—2.6 m-kg, 14—19 ft-lb)

Note—

Front cover / oil pump bolts

Tightening Torque7.8—11 N·m (80—110 cm-kg, 69—95 in-lb)

Note—

Oil pan bolts

Tightening Torque7.8—11 N·m (80—110 cm-kg, 69—95 in-lb)

NoteGasket replace, seat face sealant

Clutch pressure plate bolts

Tightening Torque18—26 N·m (1.9—2.7 m-kg, 13—20 ft-lb)

NoteSST required

Flywheel bolts

Tightening Torque96—103 N·m (9.8—10.5 m-kg, 71—76 ft-lb)

NoteSST required
