INSTALLATION
B-85prose procedureStep 2
WARNING
Be sure the vehicle is securely supported on safety stands.
Torque Specifications
| Specification | Value |
|---|---|
| Torque (lower-left callout) | 19 - 25N·m |
| Torque (lower-center callout) | 57 - 78N·m |
Torque (lower-left callout)
19 - 25N·m
Torque (lower-center callout)
57 - 78N·m

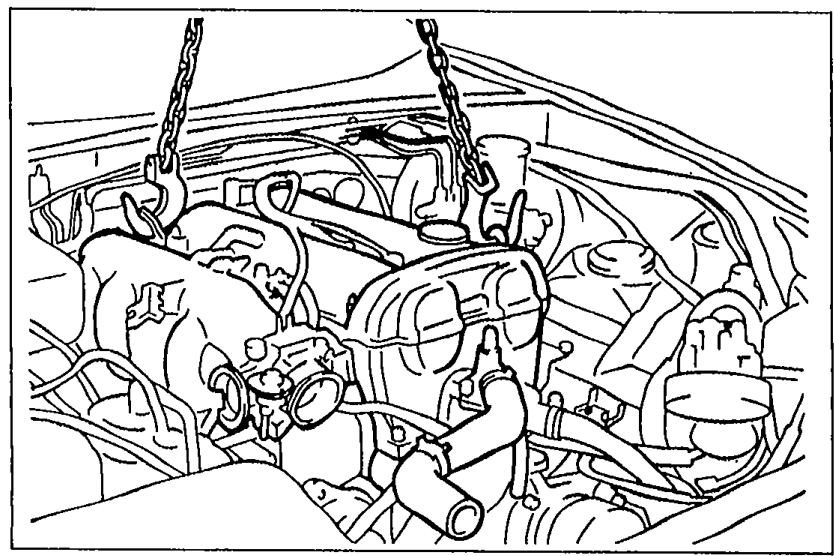

Engine and transmission assembly
- 1Suspend the engine and transmission assembly.Caution: Do not damage any components in the engine compartment.
05U0BX-262 - 2Install the engine with the transmission tilting downward.
- 3Align the engine mounts with the crossmember mounting holes.
- 4Support the transmission with a transmission jack.
- 5Install the engine mount nuts and loosely tighten them.
