Mazda MX-5 NA silhouetteMX-5 NA

ASSEMBLY

B-79prose procedure
Continued from B-78

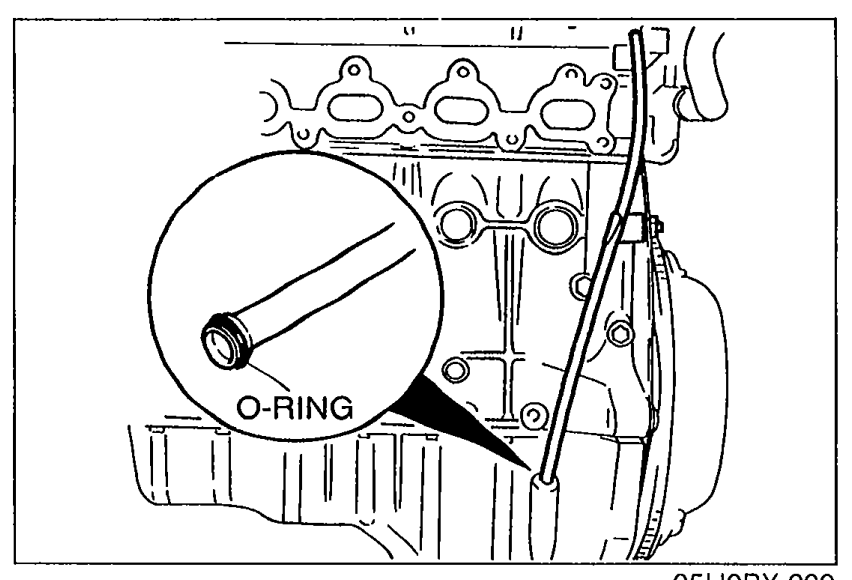

Oil Level Gauge Pipe

  1. 1
    Apply a small amount of clean engine oil to the new O-ring.
    Oil level gauge pipe installed on the engine with a magnified inset showing the O-RING at the bottom of the pipe.
    05U0BX-239
  2. 2
    Push the level gauge pipe into the oil pan.
  3. 3
    Tighten the level gauge pipe bracket nut.
  4. 4
    Install the level gauge.
Tightening torque (level gauge pipe bracket nut)
7.8 - 11N·m

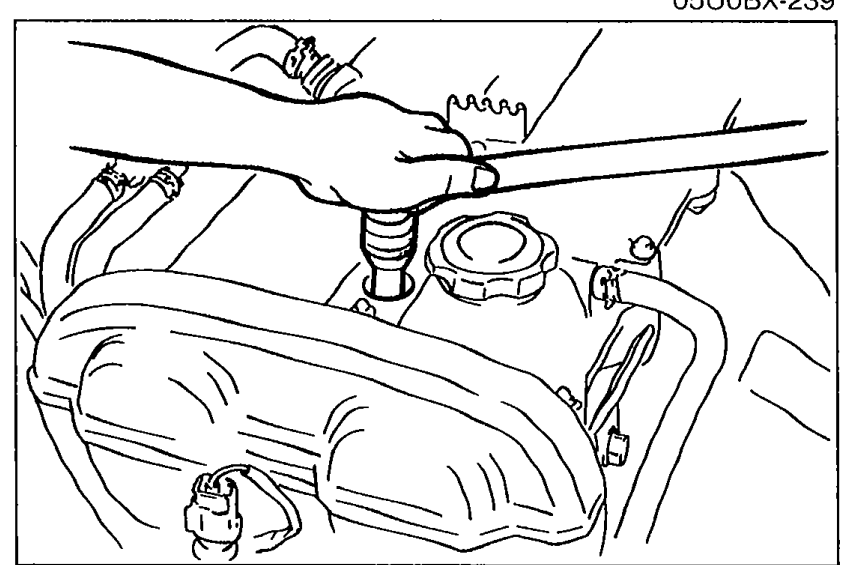

Spark Plug

  1. 1
    Apply antiseize compound or molybdenum-based lubricant to the spark plug threads.
    Top of engine showing spark plug installation area with cylinder head visible.
    05U0BX-240
  2. 2
    Install the spark plugs.
Tightening torque (spark plug)
15 - 23N·m

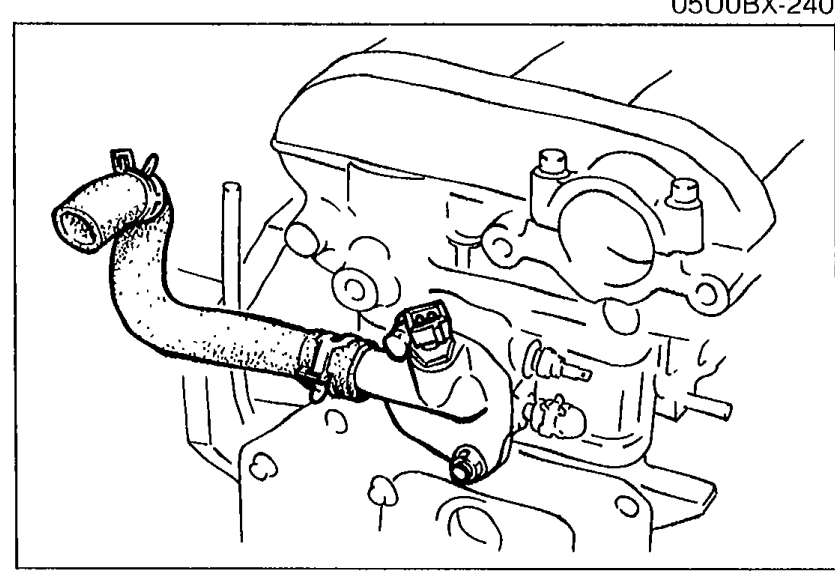

Water Outlet Pipe

  1. 1
    Remove all foreign material from the water outlet pipe mounting surface.
    Water outlet pipe installed on the cylinder head with mounting flange visible.
    05U0BX-241
  2. 2
    Install a new gasket and the water outlet pipe.
Tightening torque (water outlet pipe)
19 - 25N·m

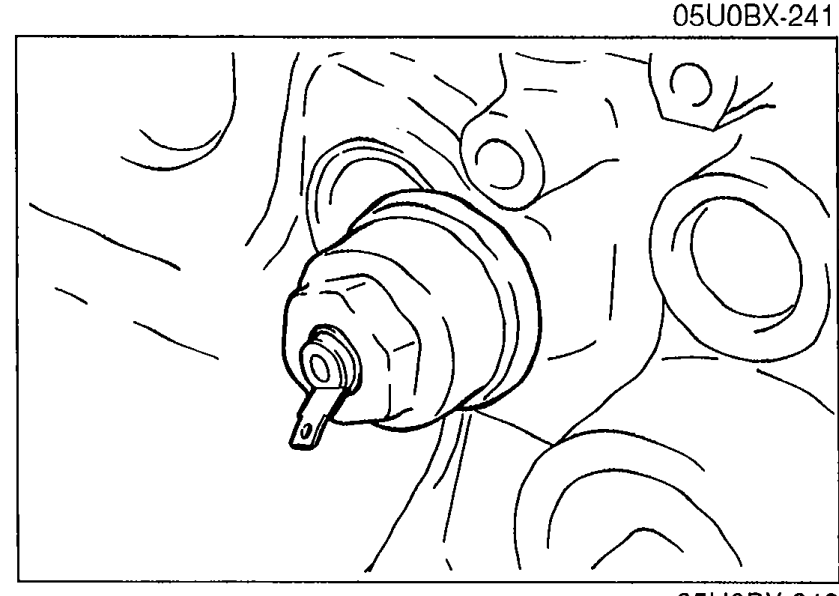

Oil Pressure Gauge Sender Unit

  1. 1
    Install the oil pressure gauge sender unit.
    Oil pressure gauge sender unit installed on the engine block.
    05U0BX-242
Tightening torque (oil pressure gauge sender unit)
12 - 18N·m

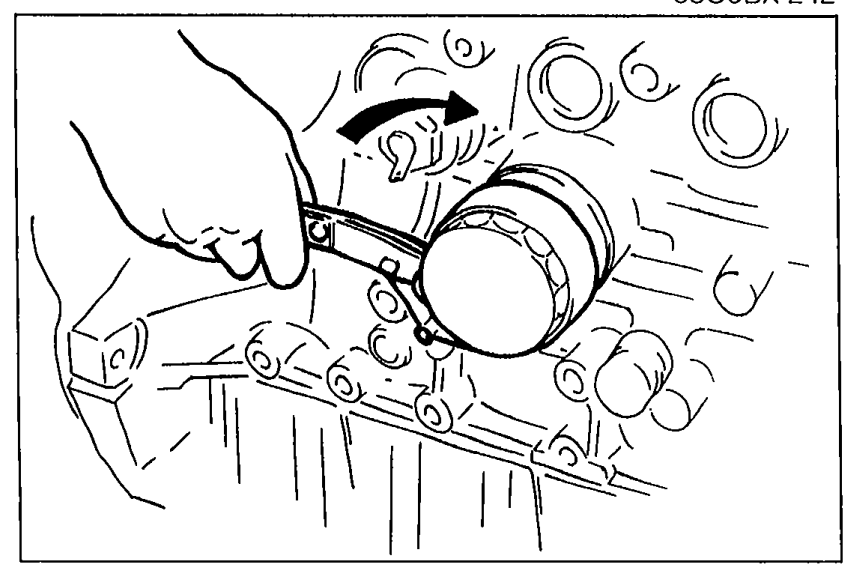

Oil Filter

  1. 1
    Remove all foreign material from the oil filter mounting surface.
    Hand installing the oil filter onto the engine block with a curved arrow showing the tightening rotation.
    05U0BX-243
  2. 2
    Apply a small amount of clean engine oil to the rubber seal of the oil filter.
  3. 3
    Install the oil filter and tighten it by hand until the rubber seal contacts the base.
  4. 4
    Tighten the filter 1 and 1/6 turn with a filter wrench.
