REMOVAL — Removal Note / Step 2

B-29prose procedure

P/S pressure switch (1) only on P/S-equipped vehicles.

Continued from B-28

Removal note

P/S oil pump

P/S oil pump removal

  1. 1

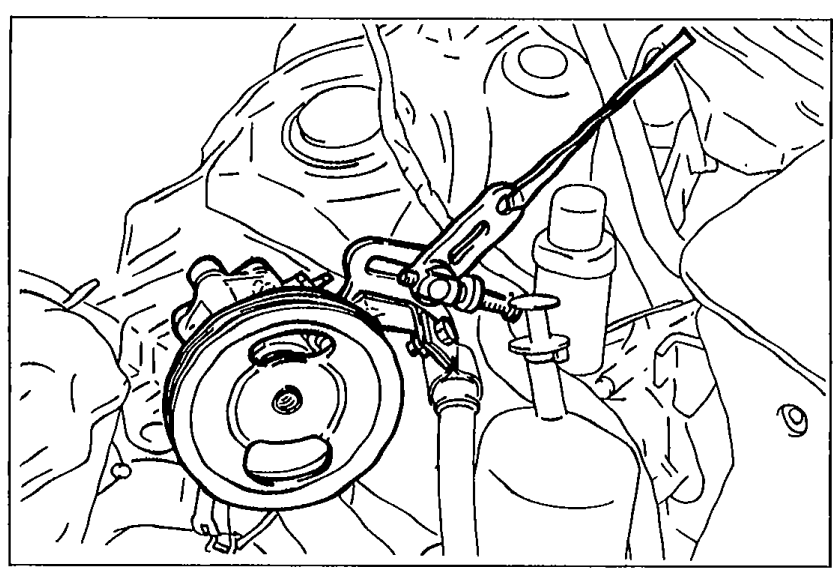

    Remove the P/S oil pump with the hoses still connected.
    P/S oil pump photo showing the pump still attached with hoses connected, viewed from the engine bay.
    05U0BX-074
  2. 2
    Position the pump away from the engine and affix it with wire.

A/C compressor

A/C compressor removal

  1. 1

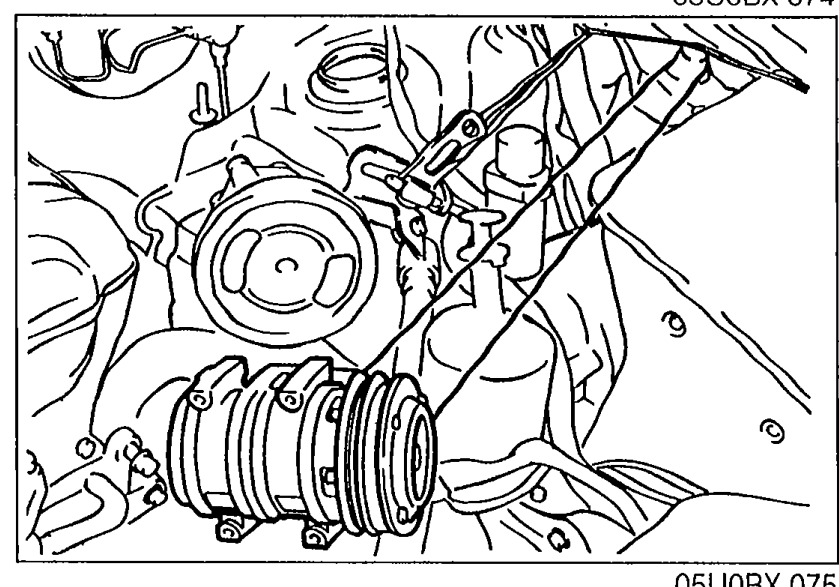

    Remove the A/C compressor with the hoses still connected.
    A/C compressor photo showing the compressor mounted with its drive belt, hoses still connected.
    05U0BX-075
  2. 2
    Position the compressor away from the engine and affix it with wire.

Step 2

Step 2 — Harness connectors

  1. 1

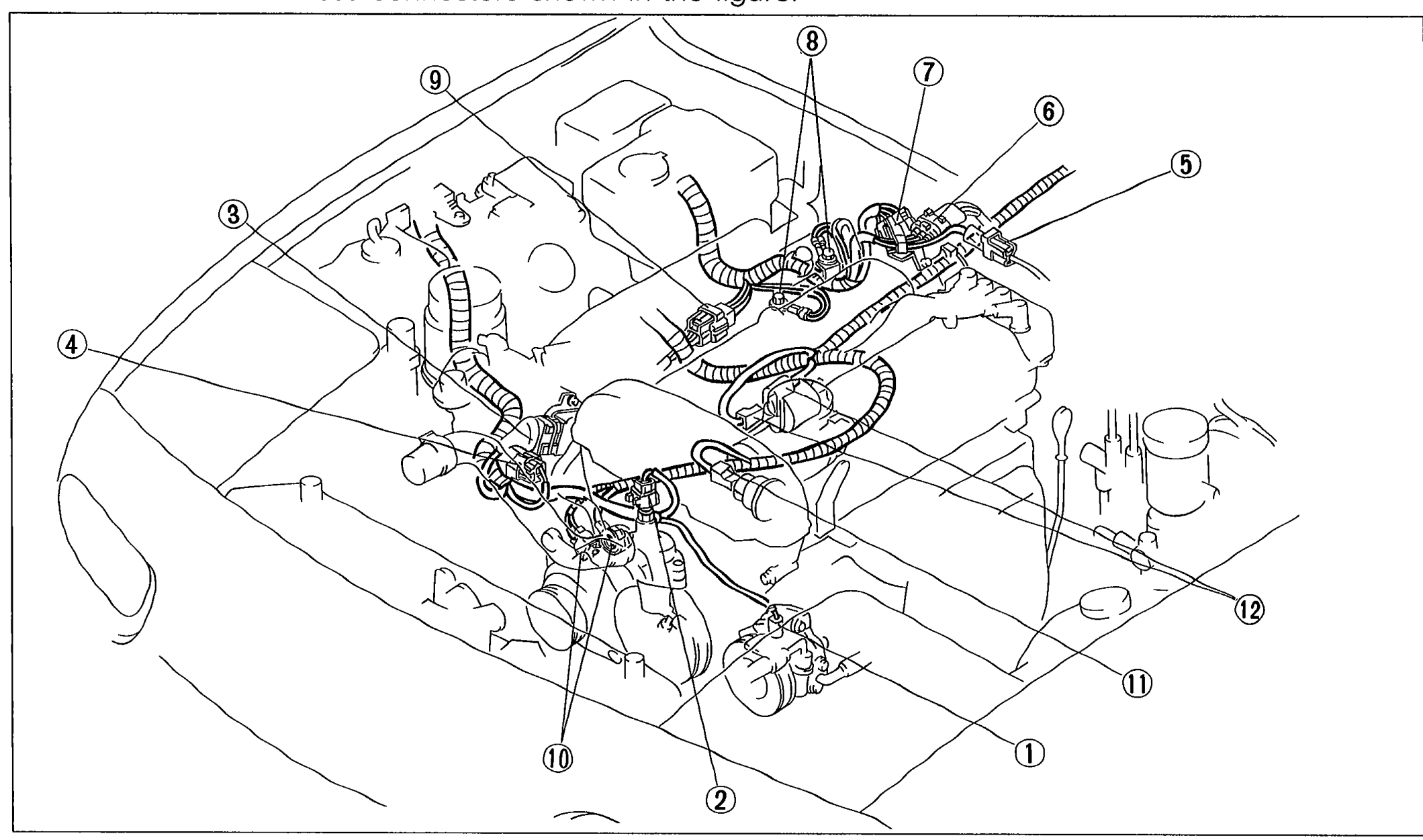

    Disconnect the harness connectors shown in the figure.
    Engine bay overview marking 12 harness connector locations to disconnect: P/S pressure switch (1), water thermoswitch (2), throttle sensor (3), ISC (4), oxygen sensor (5), ignition coil (6), crank angle sensor (7), ground (8), injector (9), alternator (10), oil pressure gauge (11), starter (12).
    05U0BX-076

Step 2 harness connectors (from figure)

1
ComponentP/S pressure switch
2
ComponentWater thermoswitch
3
ComponentThrottle sensor
4
ComponentISC
5
ComponentOxygen sensor
6
ComponentIgnition coil
7
ComponentCrank angle sensor
8
ComponentGround
9
ComponentInjector
10
ComponentAlternator
11
ComponentOil pressure gauge
12
ComponentStarter
