CRUISE CONTROL SYSTEM

T-106prose procedure
Continued from T-105

ACTUATOR CABLE

Removal

Actuator Cable Removal

  1. 1

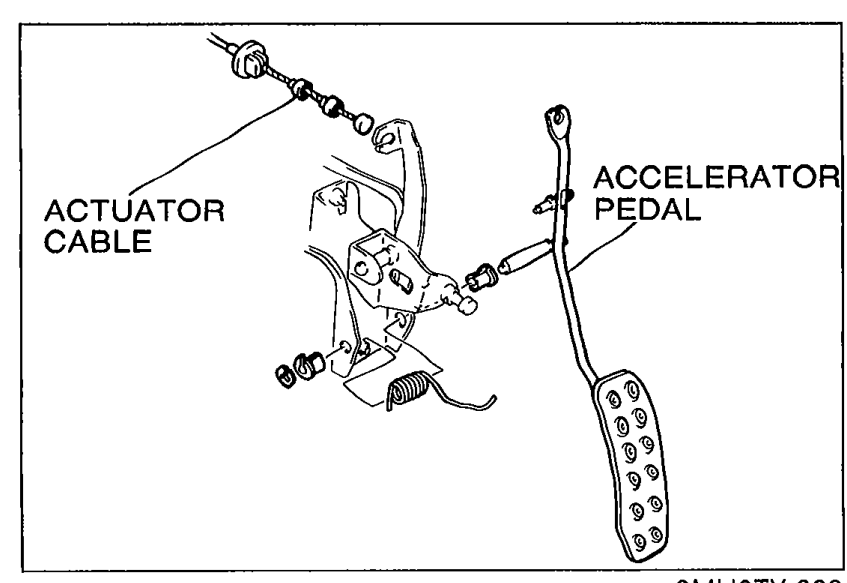

    Disconnect the actuator cable from the accelerator pedal.
    Illustration of the actuator cable connected to the accelerator pedal inside the vehicle. Labels point to ACTUATOR CABLE and ACCELERATOR PEDAL.
    9MU0TX-263
  2. 2
    Remove the clamp at the inside of the firewall.
  3. 3

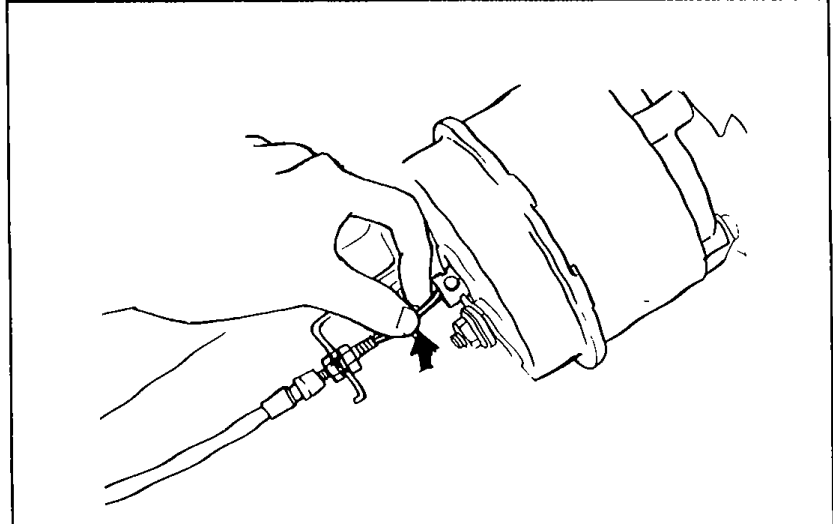

    Disconnect the actuator cable from the actuator.
    Illustration of actuator showing the actuator cable attachment with arrows pointing to the cable connection point and clamps.
    9MU0TX-264
  4. 4
    Remove the clamps and the actuator cable.

Installation

Install in the reverse order of removal.

Adjustment

Remove the clamp and adjust the nut so that actuator cable free play is as shown when the cable is pressed lightly.
Cable play
1—3mm (0.04—0.12 in)

CLUTCH SWITCH

Removal

Loosen the locknut and remove the switch.

Installation

Install in the reverse order of removal.

Adjustment

Adjust the switch to set the specified pedal height.
Pedal height
175—185mm (6.89—7.82 in)
Pedal freeplay
0.6—3.1mm (0.02—0.12 in)

Inspection

Clutch Switch Inspection

  1. 1

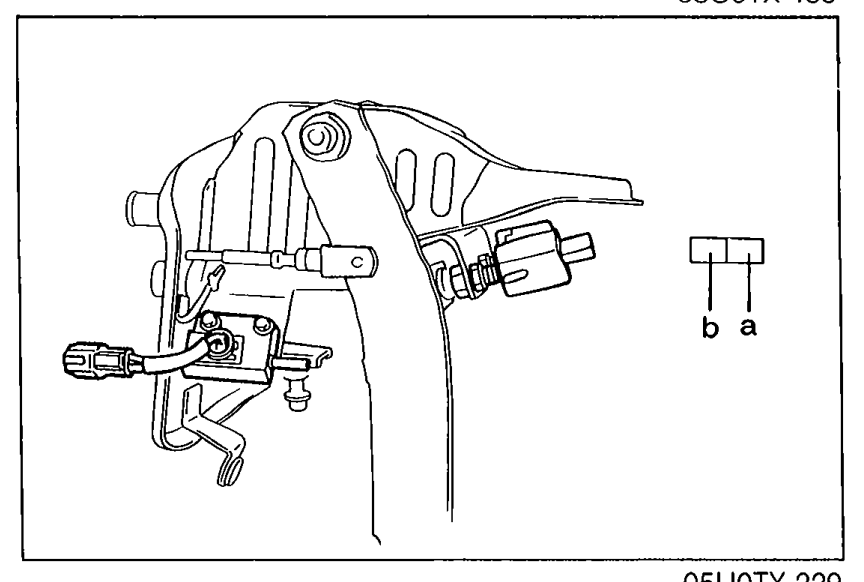

    Disconnect the clutch switch connector.
    Illustration of clutch pedal area showing the clutch switch with its connector being disconnected by a hand. A small connector diagram shows terminals b and a.
    05U0TX-229
  2. 2
    Check continuity between terminals of the switch.
  3. 3
    If not as specified, replace the clutch switch.

Clutch switch continuity

Pedal released
Terminal a
Terminal b
Pedal depressed
Terminal aO
Terminal bO
