LIGHTING SYSTEM

T-70prose procedure

Turn and hazard warning flasher unit

1

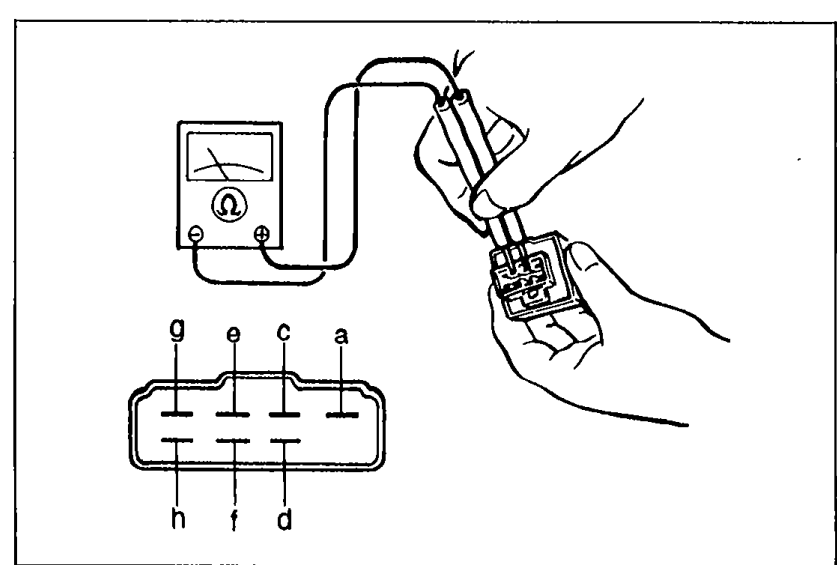

Check continuity between terminals of the flasher unit.
Set the ohmmeter to ×1000Ω range.
05U0TX-143
2
If not as specified, replace the flasher unit.

Flasher unit terminal continuity

Terminal (+ / -)	Continuity
a - c	X
a - d	X
a - e	O
a - f	O
a - g	X
a - h	X
c - a	O
c - d	O
c - e	O
c - f	O
c - g	O
c - h	O
d - a	X
d - c	X
d - e	X
d - f	X
d - g	X
d - h	X
e - a	X
e - c	X
e - d	X
e - f	X
e - g	X
e - h	X
f - a	X
f - c	X
f - d	X
f - e	X
f - g	X
f - h	X
g - a	X
g - c	X
g - d	X
g - e	X
g - f	X
g - h	X
h - a	O
h - c	O
h - d	O
h - e	O
h - f	O
h - g	O

a - c

ContinuityX

a - d

ContinuityX

a - e

ContinuityO

a - f

ContinuityO

a - g

ContinuityX

a - h

ContinuityX

c - a

ContinuityO

c - d

ContinuityO

c - e

ContinuityO

c - f

ContinuityO

c - g

ContinuityO

c - h

ContinuityO

d - a

ContinuityX

d - c

ContinuityX

d - e

ContinuityX

d - f

ContinuityX

d - g

ContinuityX

d - h

ContinuityX

e - a

ContinuityX

e - c

ContinuityX

e - d

ContinuityX

e - f

ContinuityX

e - g

ContinuityX

e - h

ContinuityX

f - a

ContinuityX

f - c

ContinuityX

f - d

ContinuityX

f - e

ContinuityX

f - g

ContinuityX

f - h

ContinuityX

g - a

ContinuityX

g - c

ContinuityX

g - d

ContinuityX

g - e

ContinuityX

g - f

ContinuityX

g - h

ContinuityX

h - a

ContinuityO

h - c

ContinuityO

h - d

ContinuityO

h - e

ContinuityO

h - f

ContinuityO

h - g

ContinuityO

NOTE

O: Indicates continuity X: No continuity
