AIR BAG SYSTEM
T-135prose procedureService Precaution (continued)

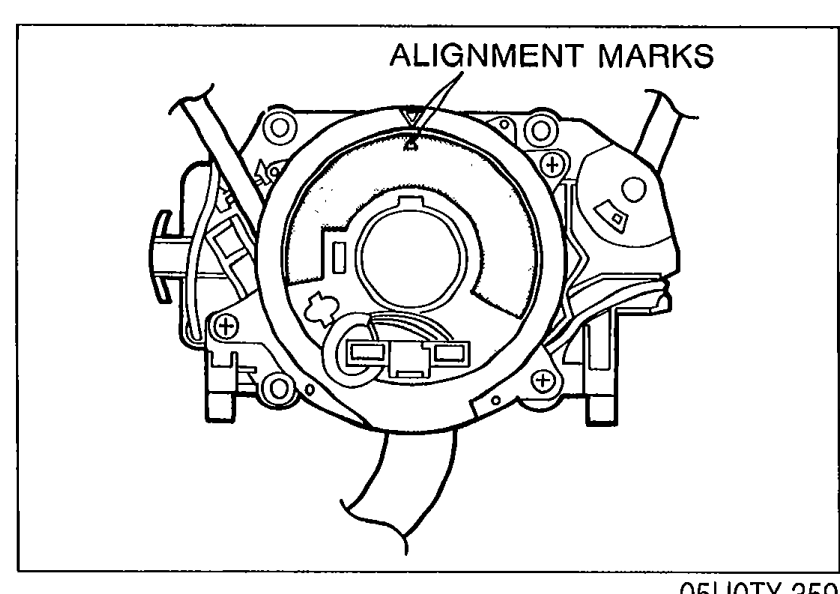

- 4Align the marks on the clock spring connector and the outer housing.

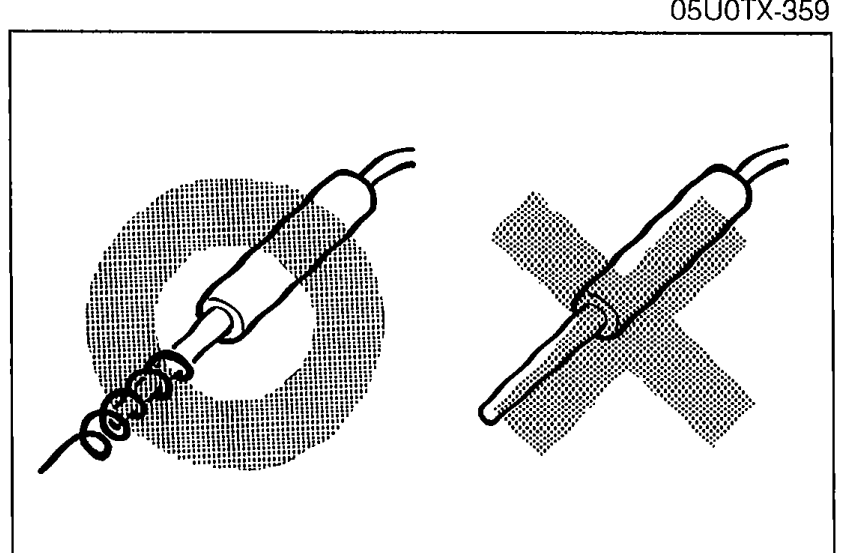

05U0TX-359 - 6When Using Test Lead • When using a test lead for testing, use a fine needle to prevent damage to the terminal.

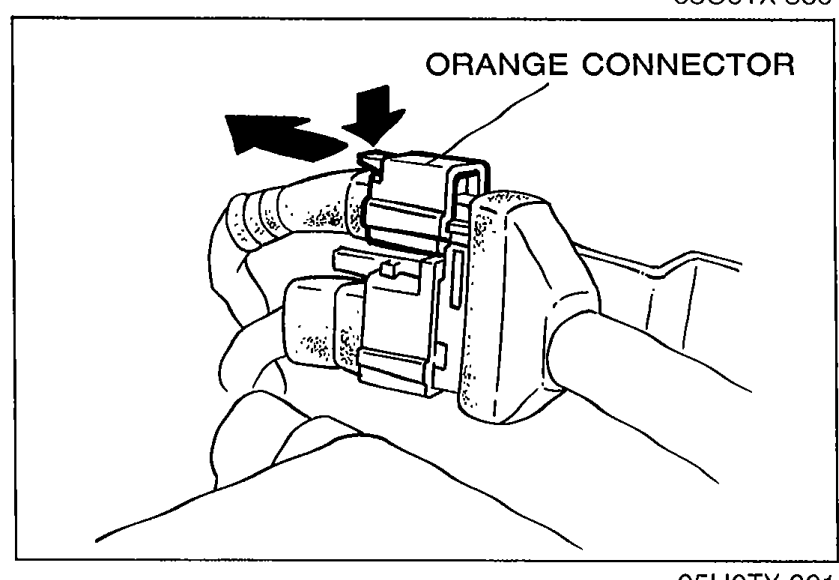

05U0TX-360 - 7Disconnecting Double Lock Type Connector • The connectors in the air bag system use a double lock type connector. • These connectors are disconnected as below. 1) Press the orange knob and disconnect the orange connector. 2) Press the blue knob and disconnect the blue connector. 3) Connect the connectors in the reverse order of disconnecting.

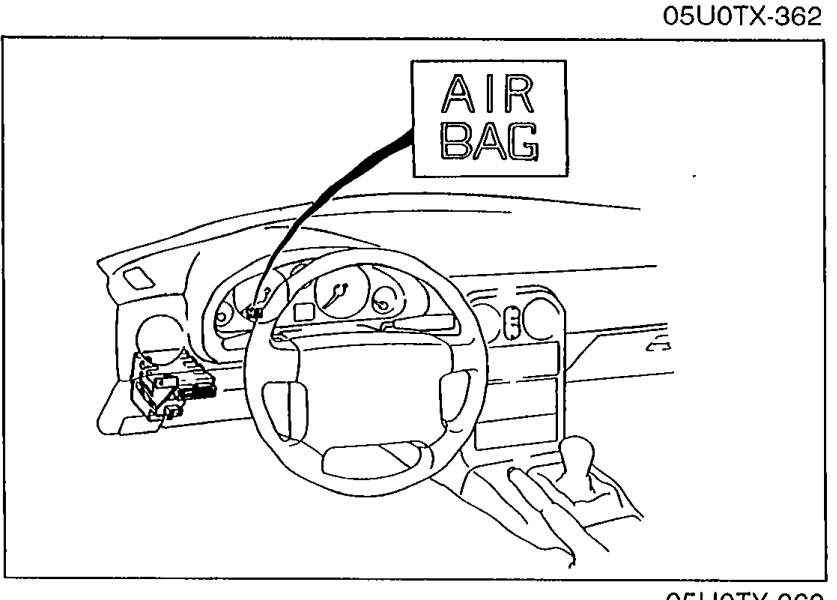

05U0TX-361 - 8After System Service • After system service verify system operation by checking with the air bag system warning lamp. If the system is operating normally, the warning lamp will come on when the ignition switch is turned ON, then go off after approximately 6 seconds. • Check if the horn sounds. If the horn does not sound, remove the air bag module and check the connections of the air bag module and horn switch connectors.
