FUSE

T-14prose procedure

REPLACEMENT

NOTE

If a fuse again fails after it has been replaced, there is probably a short in the circuit. Check the circuit which is protected by the failed fuse, referring to the specifications table.

Plate type

Plate type fuse replacement

1
Disconnect the negative battery cable.
2

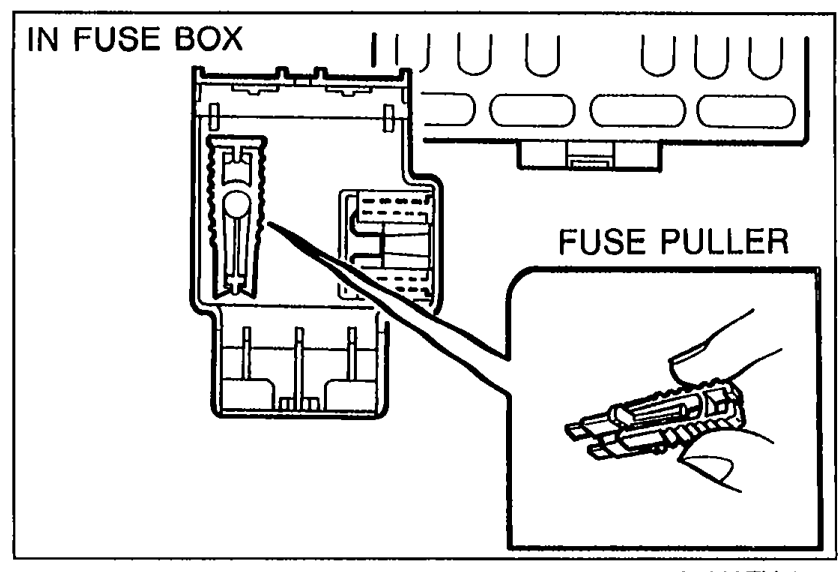

Using the fuse puller supplied in the fuse box, removed replace the failed fuse.
05U0TX-013
3
Reconnect the negative battery cable.

Cartridge-type 80A fuse (Black)

Cartridge-type 80A fuse (Black) replacement

1
Disconnect the negative battery cable.
2

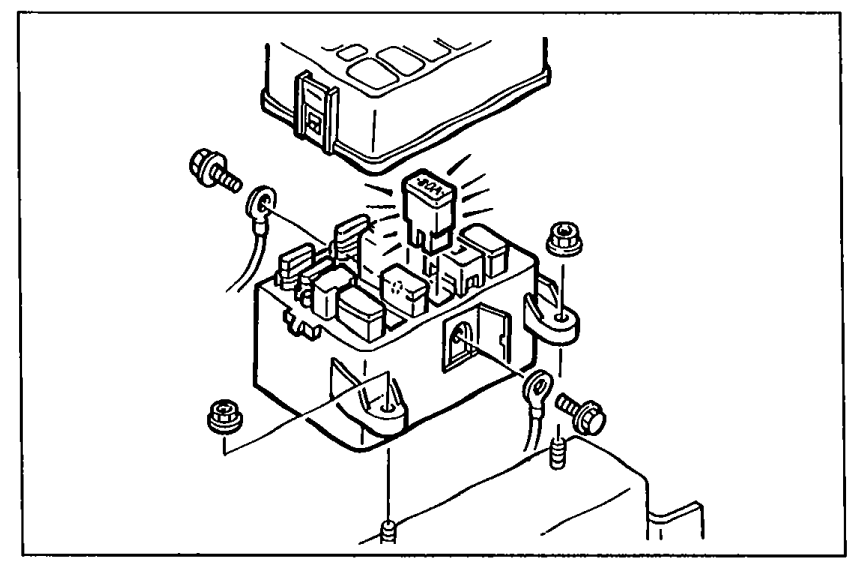

Remove the fuse block mounting nuts, and remove the service cover.
05U0TX-015
3
Remove the fuse installation bolts, and pull out the fuse.
4
Install the new fuse and the fuse installation bolts.
5
Install the main fuse block.
6
Reconnect the negative battery cable.
