AIR BAG SYSTEM

T-154prose procedure

D-sensor (RH)

D-sensor (RH) Removal/Installation

  1. 1
    Disconnect the negative battery cable.
  2. 2
    Remove the knee protector, and disconnect the clock spring connectors (Orange and blue).

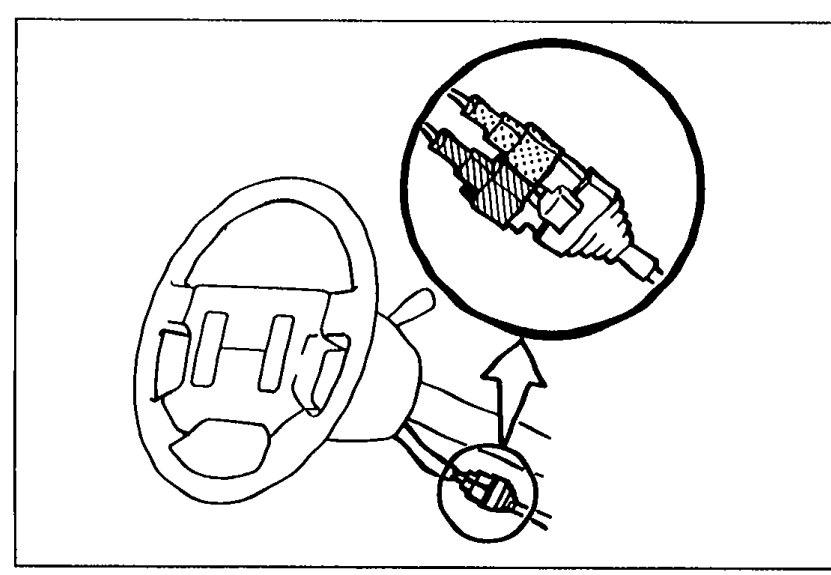

    Steering wheel with a circular detail callout showing the clock spring connectors (Orange and blue) being disconnected after knee protector removal.
    05U0TX-425
  3. 3
    Remove the nuts and the main fuse block.
  4. 4
    Disconnect the D-sensor (RH) connectors.
  5. 5
    Remove the undercover.

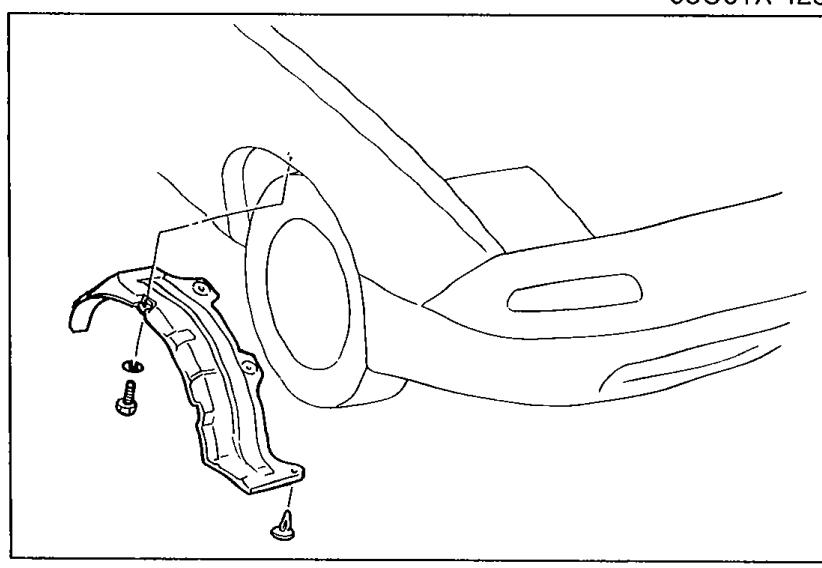

    Front right corner of the vehicle with the wheel removed, showing the undercover and its mounting clips/bolts to be removed.
    05U0TX-426
  6. 6
    Remove the clips and remove the bolts and the D-sensor (RH).

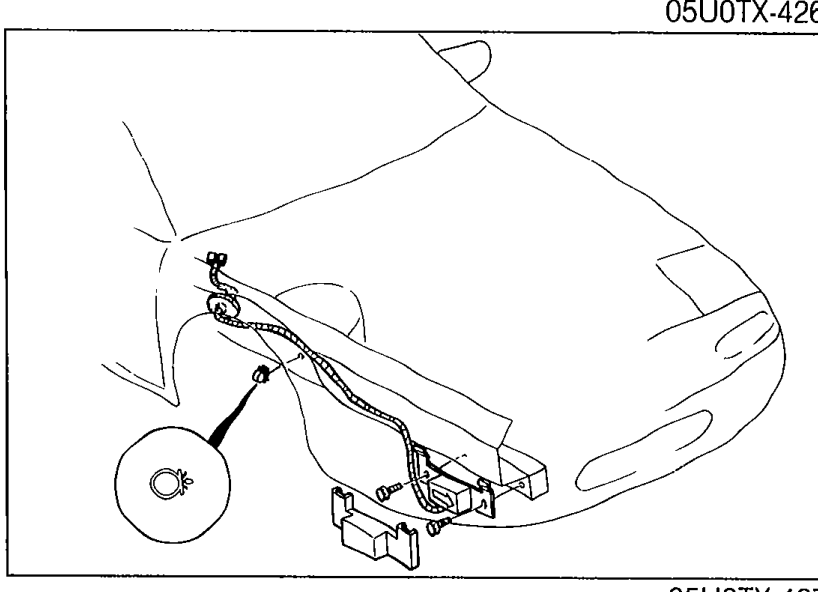

    Inner front fender area showing the D-sensor (RH) mounted with clips and bolts to be removed.
    05U0TX-427
  7. 7
    Install the D-sensor (RH), in the reverse order of removal, referring to the Installation Note.

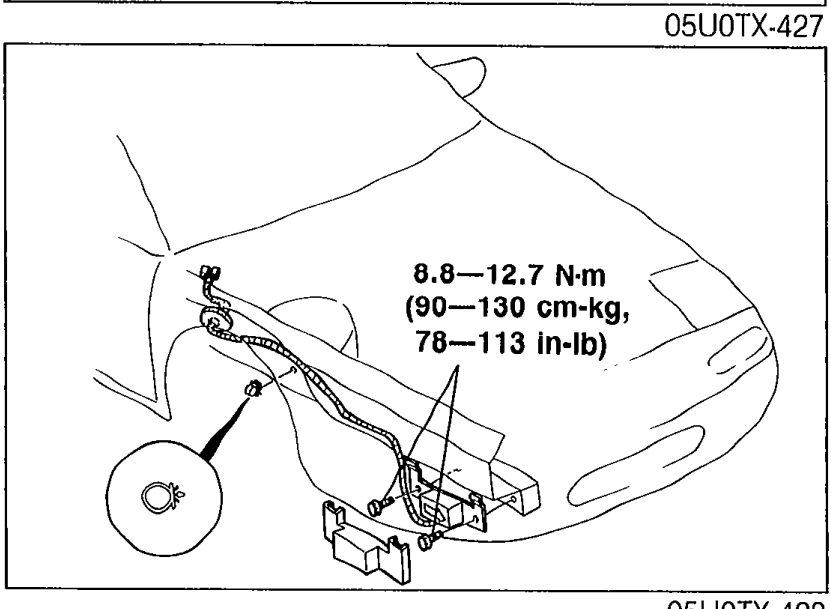

    D-sensor (RH) installation view with a torque callout label '8.8—12.7 N·m (90—130 cm-kg, 78—113 in-lb)' pointing to the mounting bolts. Shows the sensor orientation with the arrow toward the front of the vehicle.
    05U0TX-428

Installation note

D-sensor (RH) mounting bolts
8.8 - 12.7N·m
