SWITCH
T-20component photoCombination Switch description specific to U.S. specification vehicles.
STRUCTURAL VIEW

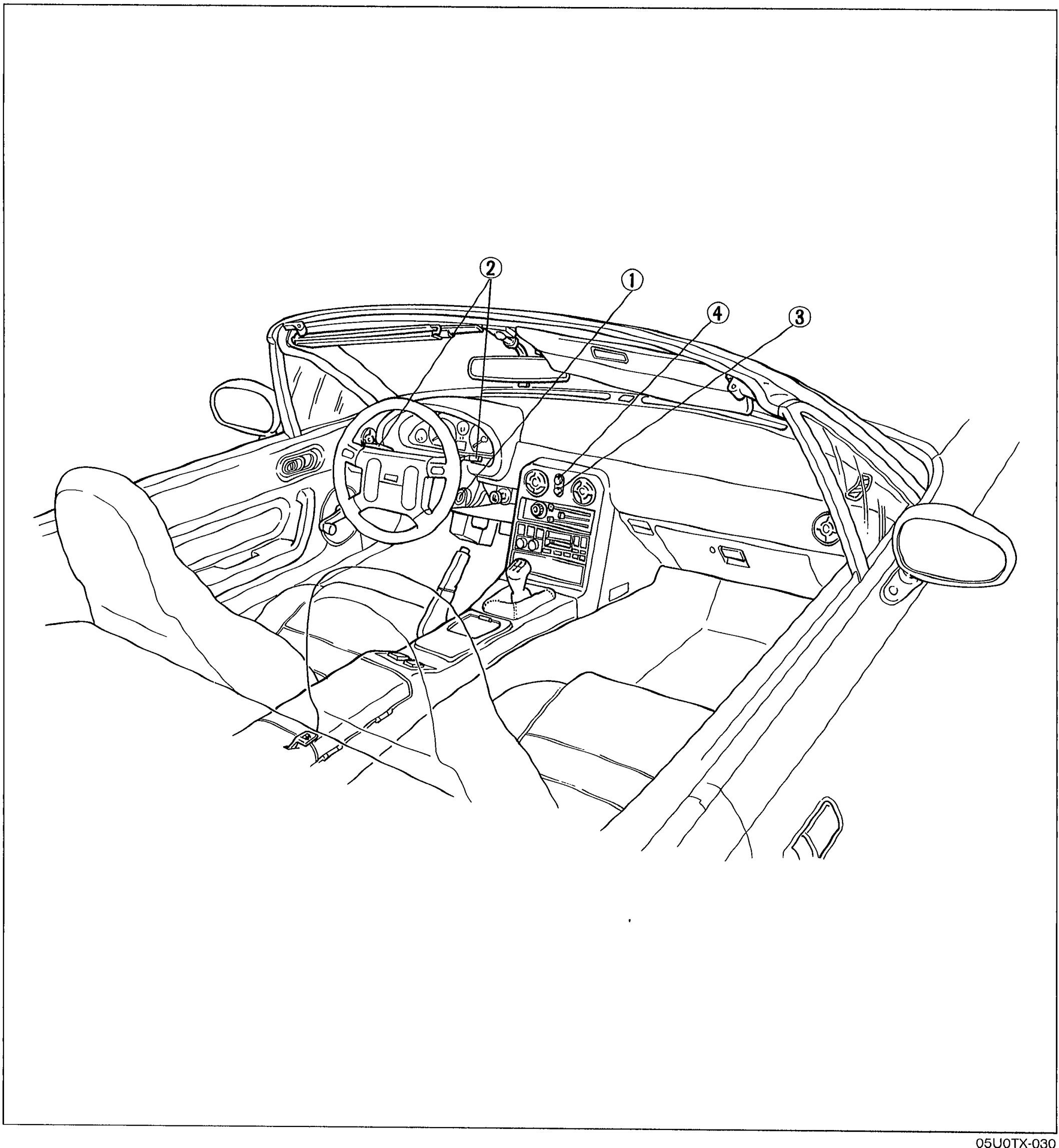

Component LocationFig. fig1
Locations of switches in the MX-5 interior.
05U0TX-030
11(Ignition switch)
22(Combination switch)
33(Headlight retractor switch)
44(Hazard warning switch)
DESCRIPTION
Combination Switch (U.S. spec.)
The combination switch equipped for U.S. specification vehicles includes a clock spring type electrical connector for supplying electrical current to the air bag module and horn switches.
When installing the combination switch, make sure the clock spring connector is properly aligned. If it is not, it may be broken or the steering wheel may not turn fully. (Refer to page T-22.)
