WARNING LAMP AND SENDER UNIT

T-41prose procedure

Continued from T-40

IMPORTANT

Symptom: Brake warning lamp does not come on when parking brake on. (Ignition switch ON.)

Remedy

Remedy — Brake warning lamp not on with parking brake

1
Disconnect the parking brake switch connector.
05U0TX-291
2

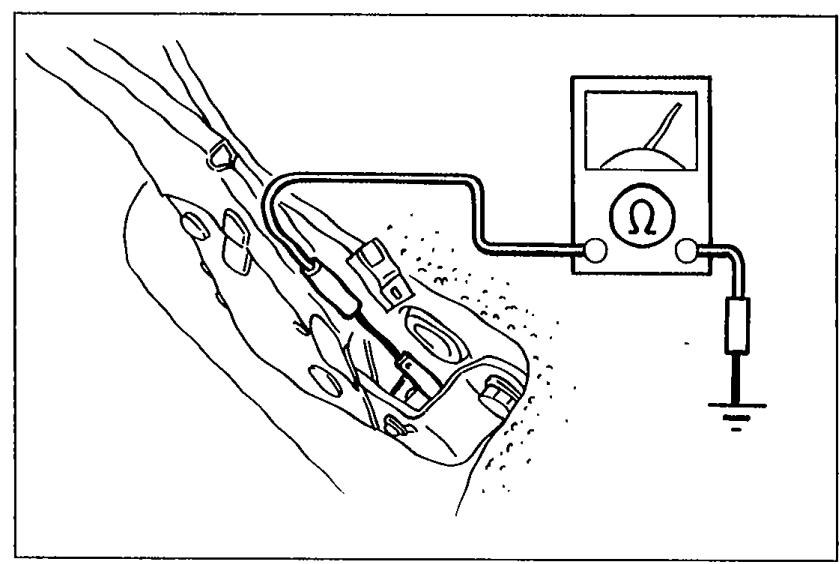

Check continuity between the terminal of the switch and a body ground.
3
If not as specified, adjust or replace the parking brake switch.
4
If the switch is OK, repair the wiring harness.

Parking brake switch continuity

Lever	Continuity
Pulled one notch	Yes
Released	No

Pulled one notch

ContinuityYes

Released

ContinuityNo

IMPORTANT

Symptom: Brake warning lamp does not come on when brake fluid in reservoir tank below MIN.

Remedy

Remedy — Brake warning lamp not on with low fluid

1
Disconnect the brake fluid level sensor connector.
05U0TX-293
2

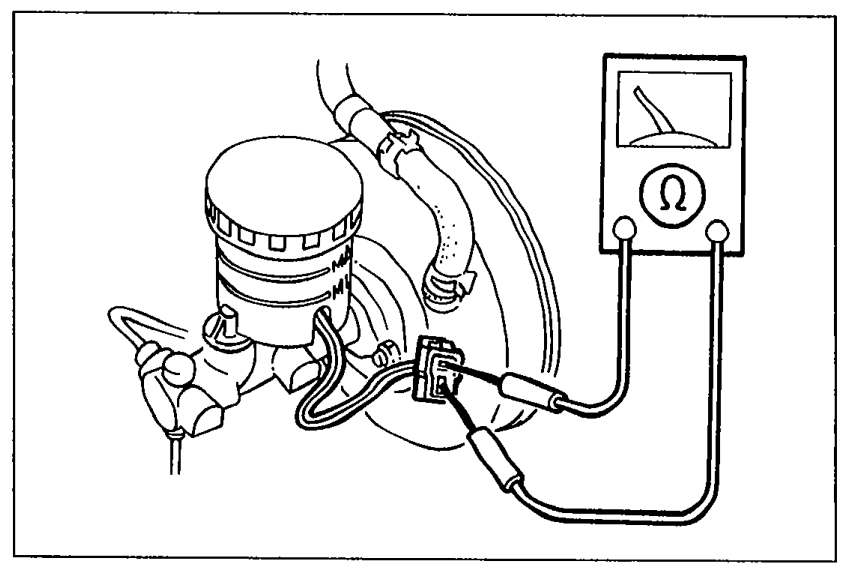

Check continuity of the brake fluid level sensor.
3
If not as specified, replace the level sensor.
4
If the sensor is OK, repair the wiring harness.

Brake fluid level sensor continuity

Brake fluid level	Continuity
Below MIN	Yes
Above MIN	No

Below MIN

ContinuityYes

Above MIN

ContinuityNo
