T-22parts diagram

U.S. spec. — applies to vehicles equipped with air bag module.

Continued from T-21

U.S. spec.

Clock spring connector adjustment

  1. 1
    Set the front wheels straight ahead.
  2. 2
    Turn the clock spring connector clockwise until it stops. Do not force it.
    Do not force it.

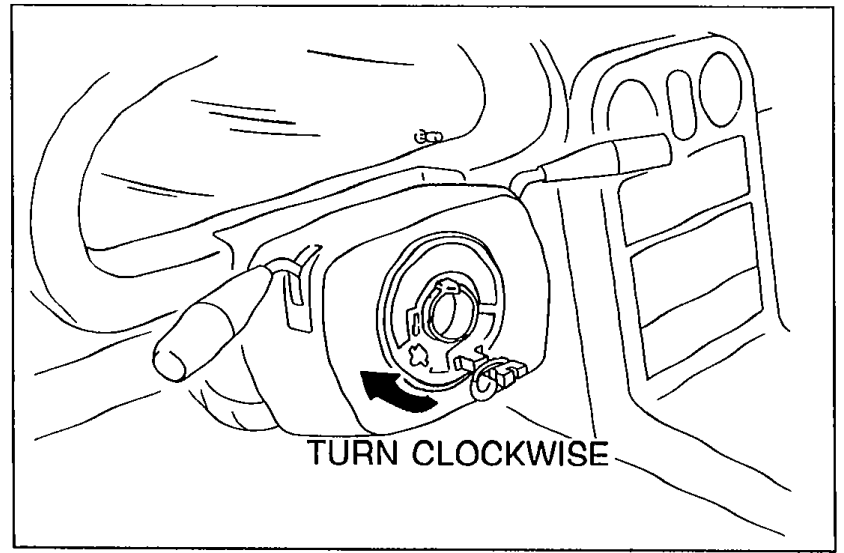

    Photo showing technician's hand turning clock spring connector clockwise. Caption 'TURN CLOCKWISE'.
    05U0TX-036
  3. 3
    Return the connector 2.75 turns.

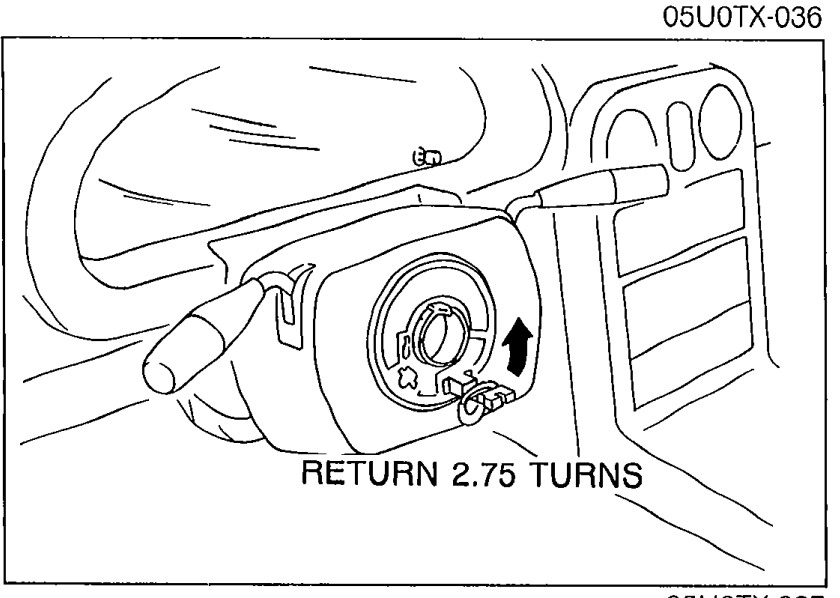

    Photo showing clock spring connector being returned 2.75 turns with an arrow. Caption 'RETURN 2.75 TURNS'.
    05U0TX-037
  4. 4
    Align the marks on the clock spring connector and the outer housing.
