INSTRUMENT CLUSTER (METER)

T-26component photo

Speedometer main scale differs by region: U.S. = MPH (0—130), Canada = KM/H (0—210).

Continued from T-25

STRUCTURAL VIEW

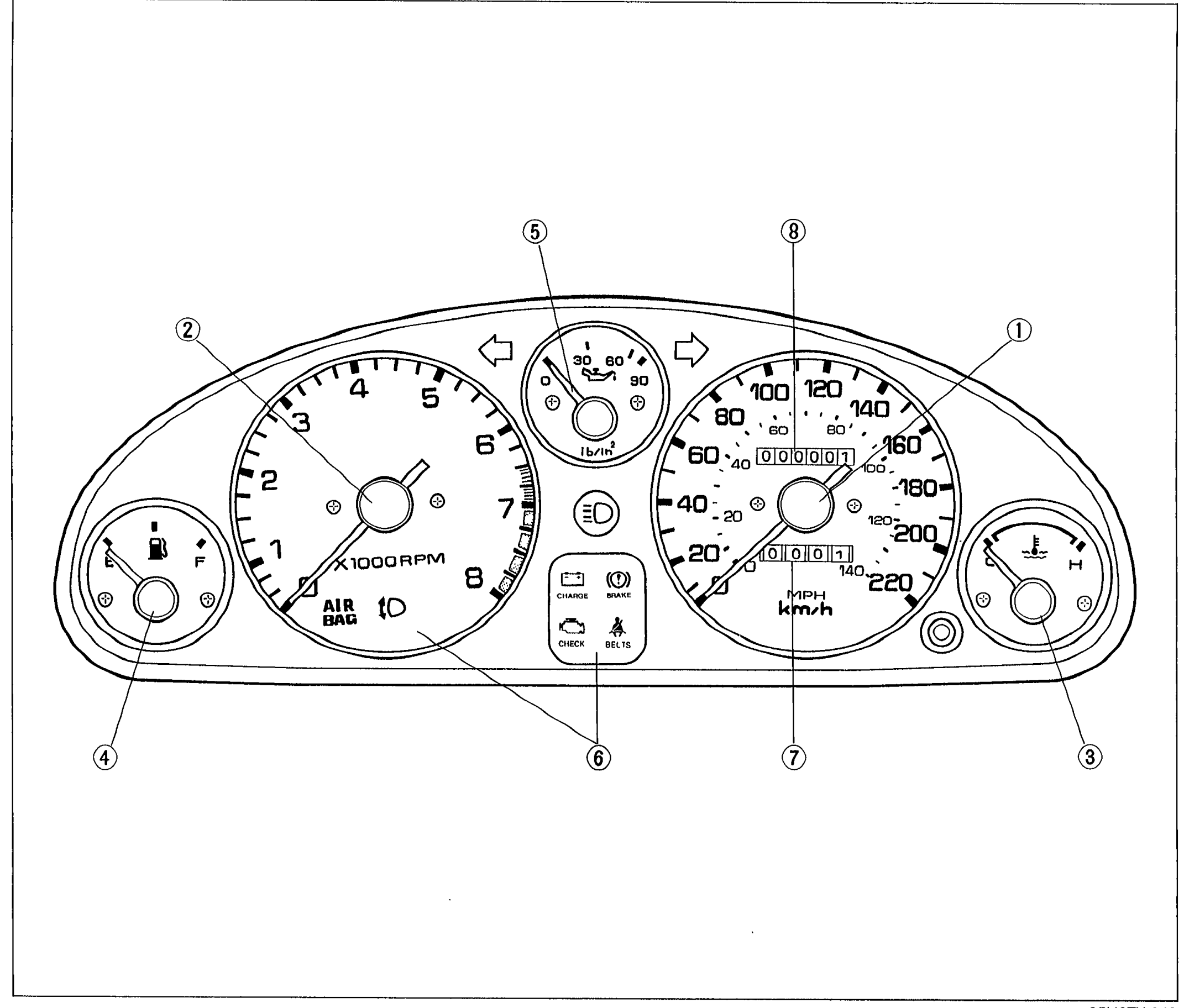

Component LocationFig. fig1

Instrument cluster components.

Instrument cluster face showing tachometer (left, x1000 RPM), turn-signal indicators, oil pressure gauge (center top), speedometer (right, MPH/km/h with odometer and trip meter), fuel gauge (right side), water temperature gauge (left side), AIR BAG indicator, warning indicators (CHARGE, CHECK, BELT, headlight, brake). Numbered callouts 1-8 mark cluster items.

05U0TX-049

11(Speedometer)

22(Tachometer)

33(Water temperature gauge)

44(Fuel gauge)

55(Oil pressure gauge)

66(Warning and indicator lamps)

77(Trip meter)

88(Odometer)

DESCRIPTION

Speedometer

Two scales are shown on the speedometer face. The main scale for U.S. specification vehicles is MPH (0—130 MPH); the main scale for Canada specification vehicles is KM/H (0—210 KM/H). The odometer indication is the same as the main scale.

Tachometer

The tachometer has a RED STRIPED ZONE (6,500—7,000 rpm) that indicates momentary allowable engine speed. The engine should not be operated in the RED ZONE (7,000—8,000 rpm).

Fuel Gauge

The fuel gauge continues to indicate the amount of fuel remaining in the fuel tank after the ignition switch has been turned OFF.
