LIGHTING SYSTEM

T-61prose procedure

Adjustment

Stoplight switch

Stoplight switch adjustment

  1. 1
    Adjust the brake pedal height. (Refer to Section P.)

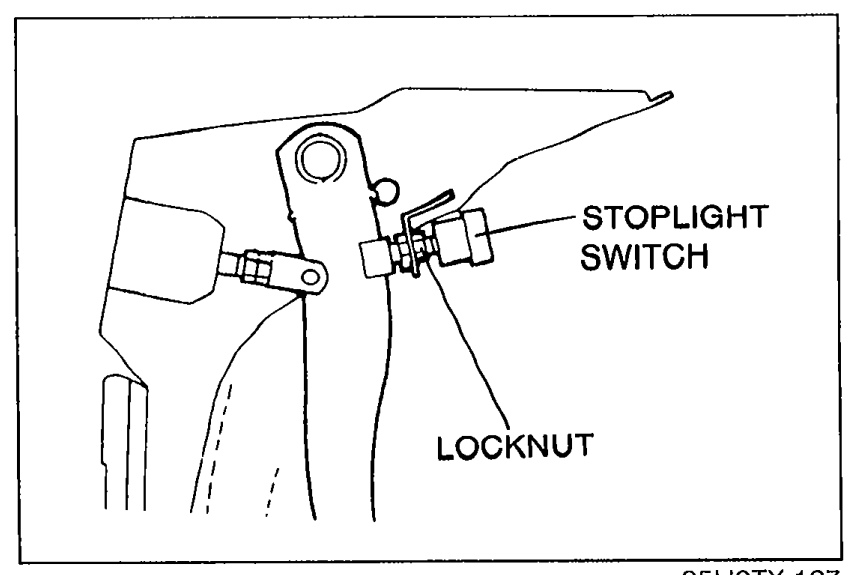

    Illustration of the stoplight switch mounted on the brake pedal bracket, with callouts labeling STOPLIGHT SWITCH and LOCKNUT.
    05U0TX-127
  2. 2
    Disconnect the stoplight switch connector.
  3. 3
    Loosen the stoplight switch locknut.
  4. 4
    Turn the stoplight switch until it contacts the pedal arm. Turn an additional 1/2 turn.
  5. 5
    Tighten the locknut.
Locknut
14 - 18N·m

Inspection

Stoplight switch

Stoplight switch inspection

  1. 1
    Disconnect the stoplight switch connector.

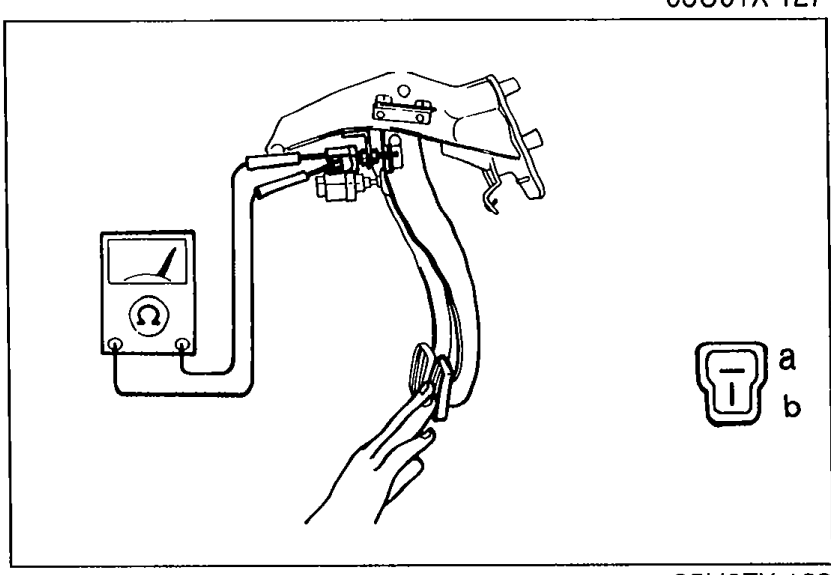

    Illustration of stoplight switch with the brake pedal and a 2-terminal connector. Terminal labels 'a' and 'b' shown on the switch end view.
    05U0TX-128
  2. 2
    Check continuity between terminals of the switch.
  3. 3
    If not as specified, replace the stoplight switch.

Stoplight switch continuity

Brake pedal depressed
Terminal aO
Terminal bO (continuous)
Brake pedal released
Terminal a
Terminal b
