WARNING LAMP AND SENDER UNIT

T-38component photo

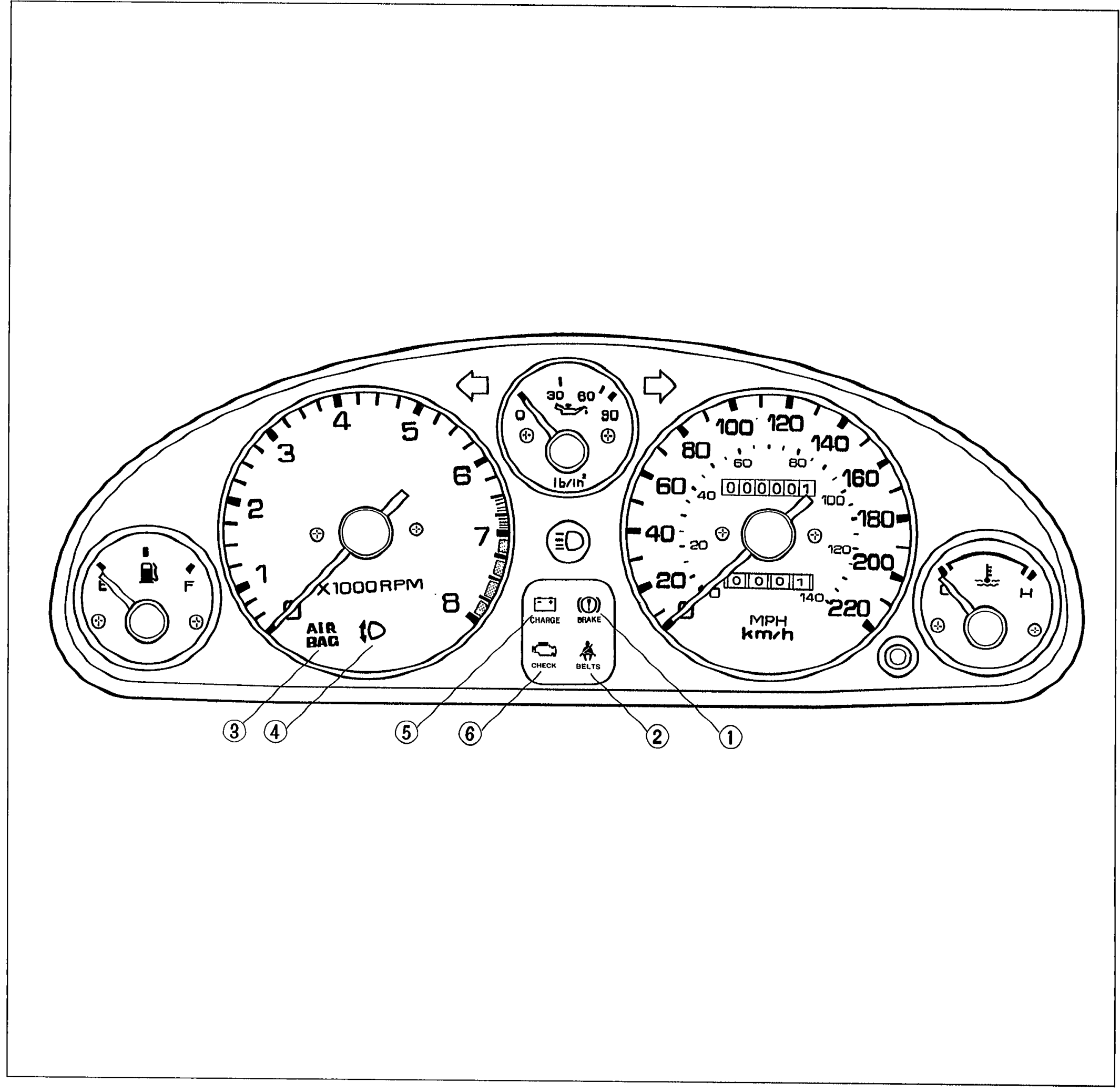

STRUCTURAL VIEW

Component LocationFig. fig1

Warning lamps located on the instrument cluster

05U0TX-073

11(Brake warning lamp)

22(Seat belt warning lamp)

33(Air bag warning lamp)

44(Headlight retractor motor indicator lamp)

55(Alternator warning lamp)

66(MIL (Malfunction indicator lamp))

NOTE

Refer to the following tables concerning warning lamps information.

Warning indicator lamp	Reference page and Section
Air bag	T-138
Headlight retractor	T-53
Alternator	Section G
MIL (Malfunction indicator lamp)	Section F

Air bag

Reference page and SectionT-138

Headlight retractor

Reference page and SectionT-53

Alternator

Reference page and SectionSection G

MIL (Malfunction indicator lamp)

Reference page and SectionSection F
