AIR BAG SYSTEM

T-142prose procedure

Item	Description
Flowchart No.	3
Fault indication	Warning lamp flashes five times or nine times
Possible cause	Faulty D-sensor (CNT, LH or RH)

Flowchart No.

Description3

Fault indication

DescriptionWarning lamp flashes five times or nine times

Possible cause

DescriptionFaulty D-sensor (CNT, LH or RH)

CAUTION

Before troubleshooting, read SERVICE PRECAUTION on page T-133.

1
Disconnect the negative battery cable.
05U0TX-378
2

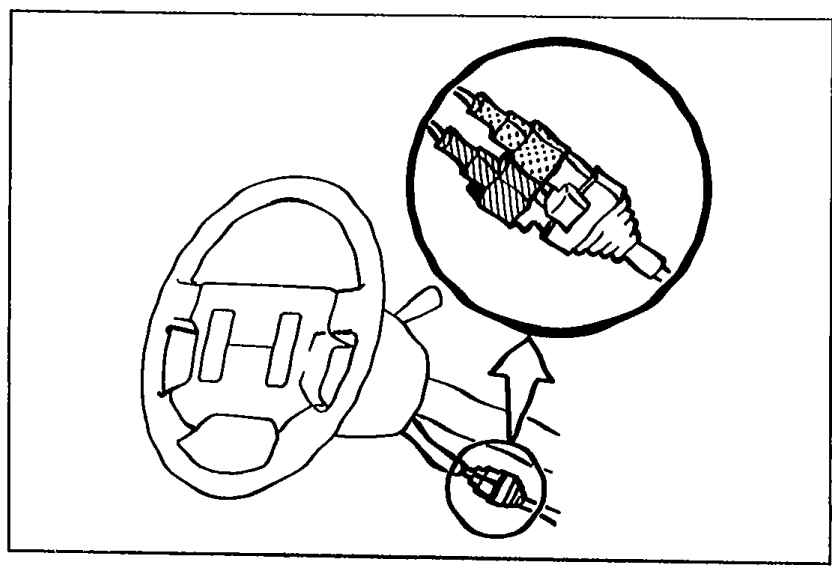

Remove the knee protector, and disconnect the clock spring connectors (Orange and blue).
3

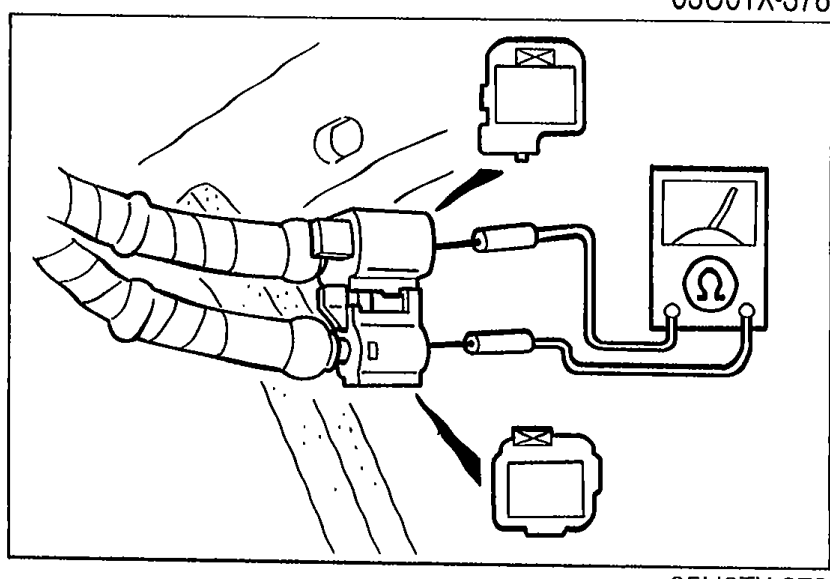

Disconnect all D-sensor (CNT, LH and RH) connectors, and measure the resistance of each sensor.
Resistance: Approx. 1.2 kΩ
05U0TX-379
4
If not as specified, replace the sensor.
5
If correct, go to Step 2.

1
Reconnect all D-sensor connectors.
05U0TX-380
2

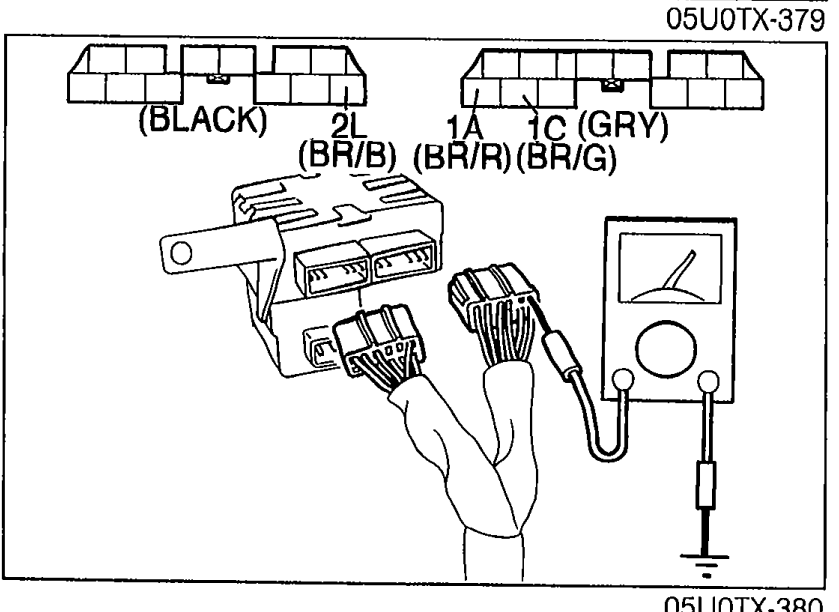

Disconnect the diagnostic module connector.
3
Measure the resistance between the following terminal-wire of the diagnostic module connector and a body ground.

Terminal-wire	Resistance	Action
1C (BR/G)	Approx. 1.2 kΩ	Next, check terminal-wire 1A (BR/R)
1C (BR/G)	Other 1.2 kΩ	Replace wire harness
1A (BR/R)	Approx. 1.2 kΩ	Next, check terminal-wire 2L (BR/B)
1A (BR/R)	Other 1.2 kΩ	Replace wire harness
2L (BR/B)	Approx. 1.2 kΩ	Replace diagnostic module
2L (BR/B)	Other 1.2 kΩ	Replace wire harness

1C (BR/G)

ResistanceApprox. 1.2 kΩ

ActionNext, check terminal-wire 1A (BR/R)

1C (BR/G)

ResistanceOther 1.2 kΩ

ActionReplace wire harness

1A (BR/R)

ResistanceApprox. 1.2 kΩ

ActionNext, check terminal-wire 2L (BR/B)

1A (BR/R)

ResistanceOther 1.2 kΩ

ActionReplace wire harness

2L (BR/B)

ResistanceApprox. 1.2 kΩ

ActionReplace diagnostic module

2L (BR/B)

ResistanceOther 1.2 kΩ

ActionReplace wire harness
