LIGHTING SYSTEM
T-76prose procedureCanada spec.
IMPORTANT
Symptom: No lights illuminate (taillights, side marker lights, and license plate lights). (Canada spec.)
No lights illuminate — Canada spec

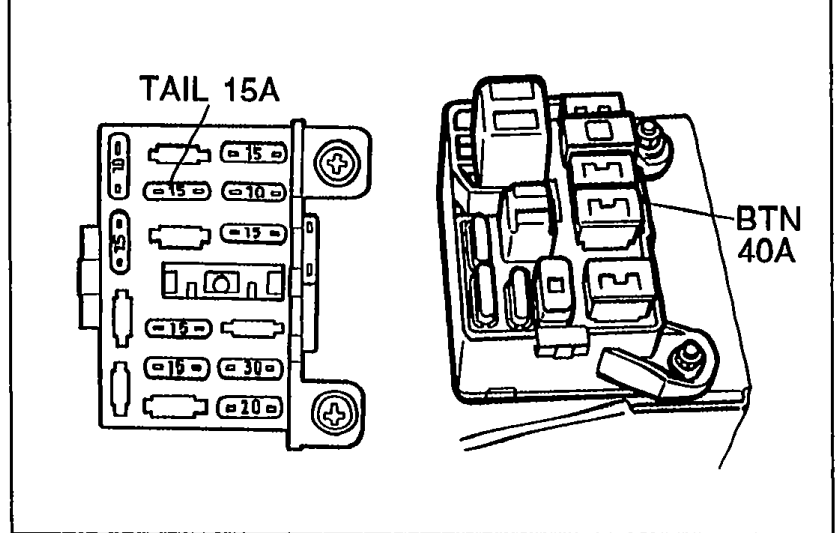

- 11. Check 15A and A fuses. 2. If the fuse is burned, replace it. Check and, if necessary, repair the wiring harness. 3. If the fuses are OK, go to Step 2.

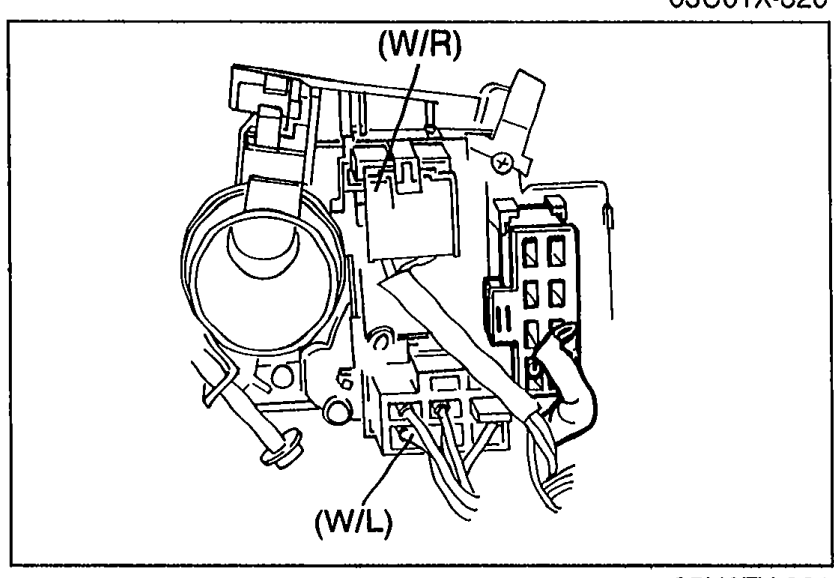

05U0TX-320 - 21. Turn the headlight switch ON. 2. Measure the voltage at the following terminal-wires of the combination switch connector.
05U0TX-321
Step 2 — Combination switch connector voltage check (Canada spec)
(W/R)
Voltage12V
ActionNext check wire (W/L)
(W/R)
Voltage0V
ActionRepair wire (W/R) (TAIL 15A fuse — combination switch)
(W/L)
Voltage12V
ActionRepair the wiring harness (Combination switch — body ground of each light)
(W/L)
Voltage0V
ActionReplace headlight switch
