AIR BAG SYSTEM

T-140prose procedure

Flowchart No. 2

Flowchart No.
Description2
Fault indication
DescriptionWarning lamp flashes three times
Possible cause
DescriptionOpen circuit or poor connection of power source circuit

Step 1

  1. 1

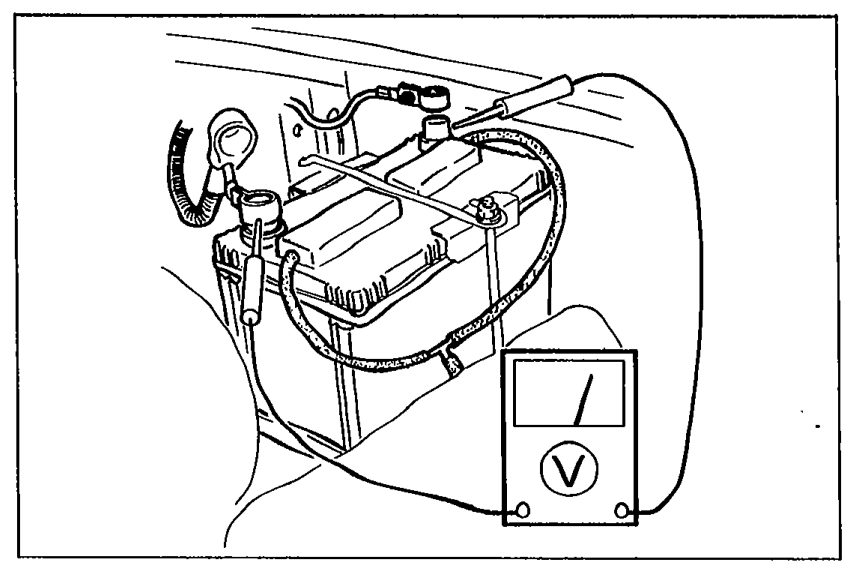

    Measure the battery voltage.
    Photo showing measurement of battery voltage with a voltmeter in the engine bay. A voltmeter (with V symbol) is connected to the battery terminals.
    05U0TX-371

Step 1 Battery voltage action

More than 9V
ActionGo to Step 2
Less than 9V
ActionCharge battery by recomended procedure (Refer to Section G)

Step 2

  1. 1

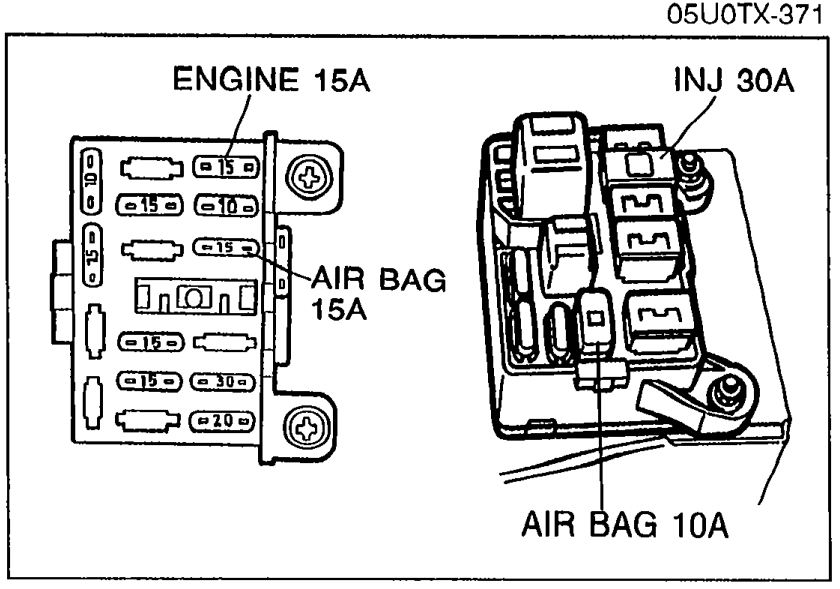

    Check the following fuses.
    Photo showing the fuse box and main fuse block with labels: ENGINE 15A, INJ 30A, AIR BAG 15A, AIR BAG 10A. Arrows point to the fuses to check.
    05U0TX-372
  2. 2
    If a fuse burned, replace it.
  3. 3
    If the fuses are OK, go to Step 3.

Step 2 Fuse locations

INJ 30A
LocationMain fuse block
AIR BAG 15A
LocationFuse box
AIR BAG 10A
LocationMain fuse block
ENGINE 15A
LocationFuse box

Step 3

  1. 1
    Disconnect the negative battery cable.
    Photo showing the steering wheel with knee protector area. An arrow points to the clock spring connectors (orange and blue) that need to be disconnected.
    05U0TX-373
  2. 2

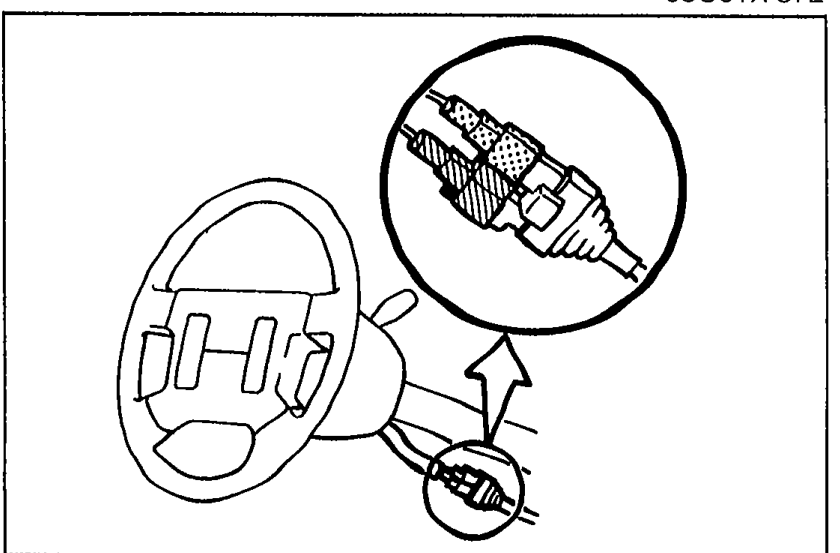

    Remove the knee protector, and disconnect the clock spring connectors (Orange and blue).
  3. 3

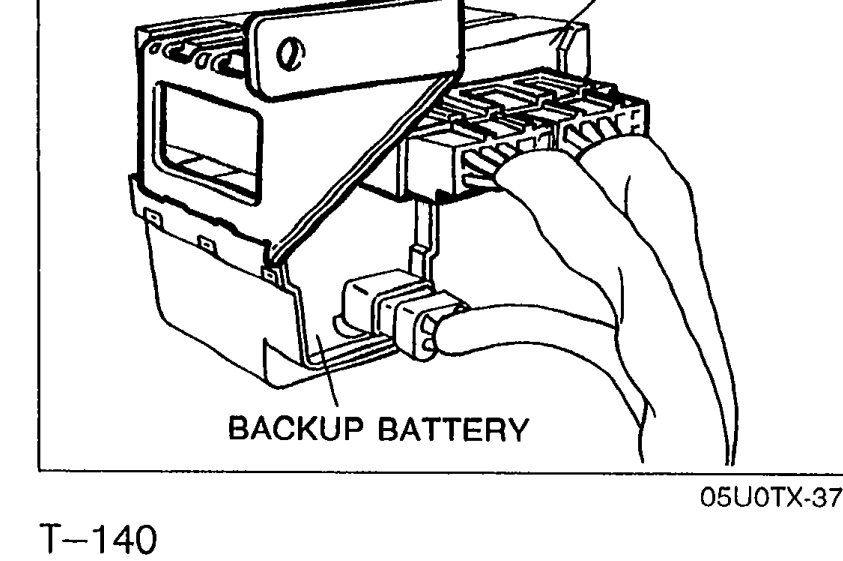

    Check for proper connection of the backup battery connector.
    Photo showing the diagnostic module with backup battery connector. Labels point to DIAGNOSTIC MODULE and BACKUP BATTERY.
    05U0TX-374
  4. 4
    If the connector is loose or disconnected, reconnect it.
  5. 5
    If the connection is OK, go to Step 4.
