STRUCTURAL VIEW

Component LocationFig. fig1

Main fuse block and fuse box locations

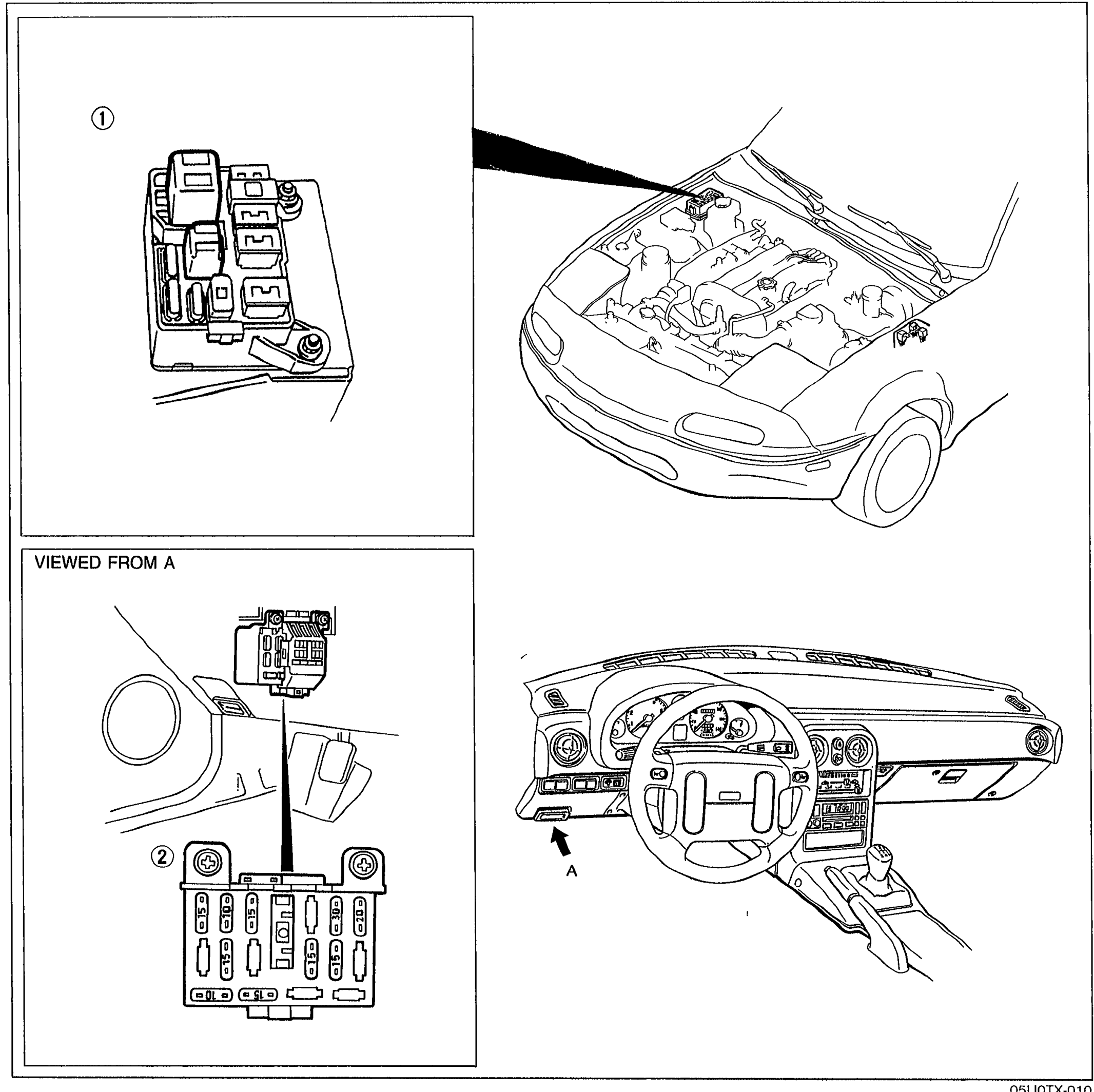

Structural view of fuse locations. Top: main fuse block (callout 1) shown in close-up at left and located in engine compartment view at right. Bottom (VIEWED FROM A): fuse box (callout 2) close-up at left and its location above the dead pedal on the driver side, shown in dashboard interior view at right with arrow A pointing to access location.
05U0TX-010
11(Main fuse block)
22(Fuse box)

DESCRIPTION

Main Fuse Block

The main fuse block is located on the right side of the engine compartment and it contains nine fuses and two relays.

Fuse Box

The fuse box is located above the dead pedal of the driver side. The fuse box cover shows the specified fuse locations.
A circuit breaker is contained in the fuse box for protection of the heater blower motor circuit.
