LIGHTING SYSTEM

T-48prose procedure

Canada spec.

Continued from T-47

IMPORTANT

Symptom: Headlights do not operate. (Canada spec.)

Step 1

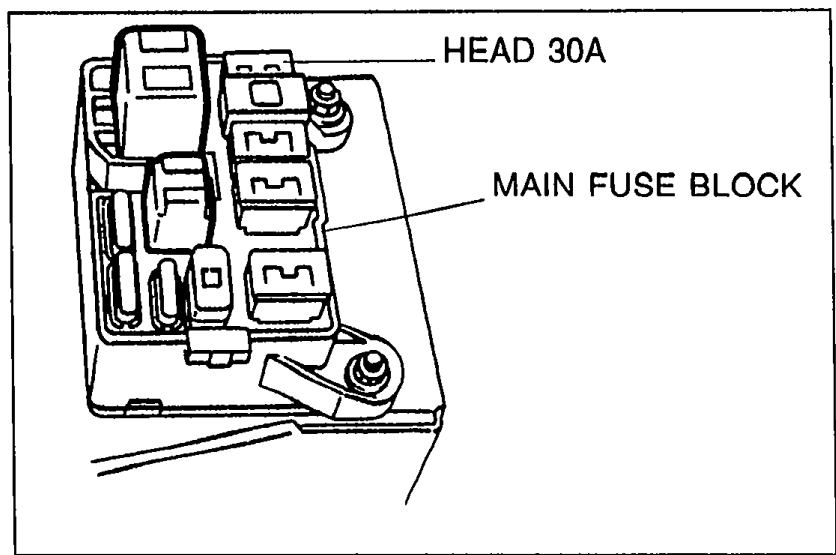

Step 1 — Check HEAD 30A fuse

1
Check HEAD 30A fuse in the main fuse block.
05U0TX-296
2
If the fuse is burned, replace it. Check and repair the wiring harness, if necessary.
3
If the fuse is OK, go to Step 2.

Step 2

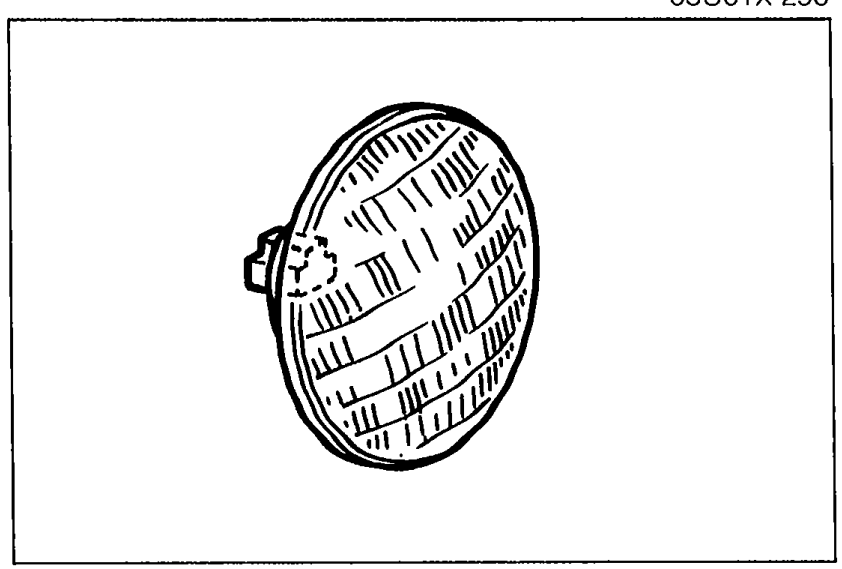

Step 2 — Check headlight bulbs

1
Check the headlight bulbs.
05U0TX-297
2
If a bulb is burned, replace it.
3
If the bulbs are OK, go to Step 3.

Step 3

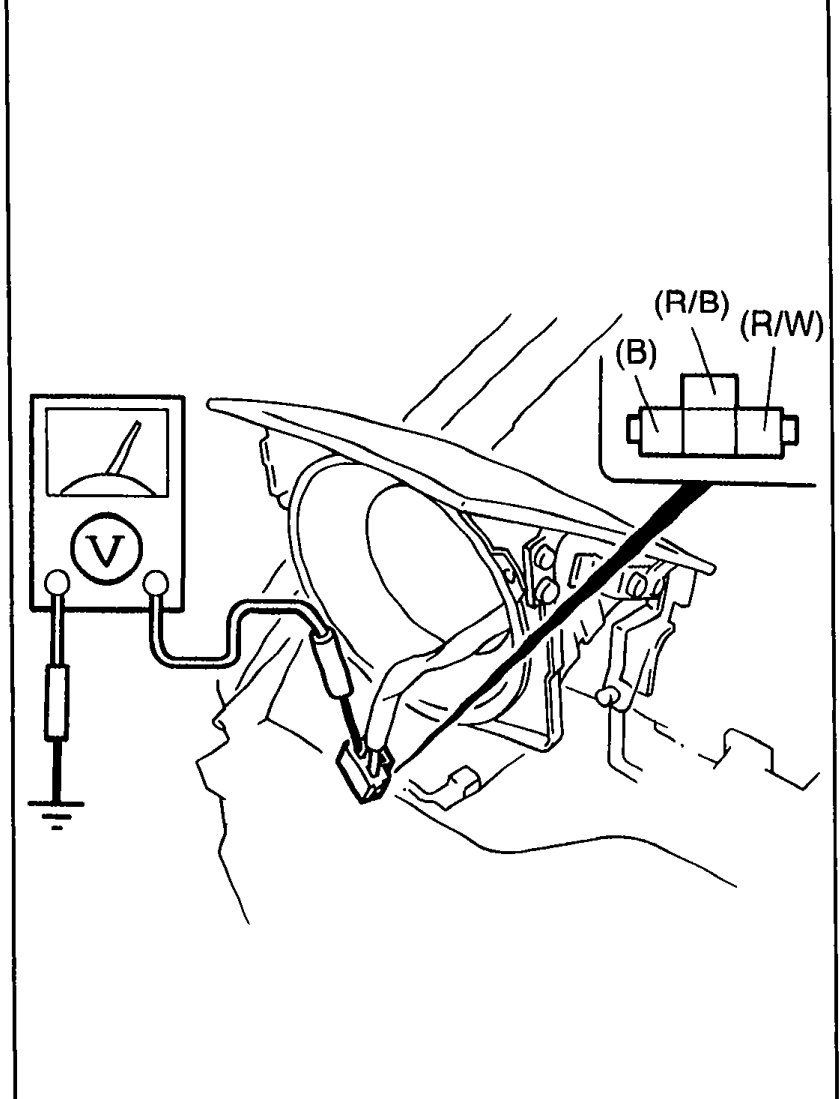

Step 3 — Headlight connector voltages

1
Turn the headlight switch ON.
05U0TX-298
2
Disconnect the headlight connector, and measure the voltage at the following terminal-wires as shown.

Step 3 — Headlight connector voltages

Headlight	Wire	Headlight switch	Voltage	Action
Left	(R/W)	High beam	12V	Next, check wire (R/B)
Left	(R/W)	High beam	0V	Go to Step 4
Left	(R/B)	Low beam	12V	Next, check wire (B)
Left	(R/B)	Low beam	0V	Go to Step 4
Left	(B)	Any position	0V	Next, check right side
Left	(B)	Any position	12V	Repair ground wire (B)
Right	(R/W)	High beam	12V	Next, check wire (R/B)
Right	(R/W)	High beam	0V	Go to Step 4
Right	(R/B)	Low beam	12V	Next, check wire (B)
Right	(R/B)	Low beam	0V	Go to Step 4
Right	(B)	Any position	0V	Check for poor connection of headlight connector
Right	(B)	Any position	12V	Go to Step 4

Left

Wire(R/W)

Headlight switchHigh beam

Voltage12V

ActionNext, check wire (R/B)

Left

Wire(R/W)

Headlight switchHigh beam

Voltage0V

ActionGo to Step 4

Left

Wire(R/B)

Headlight switchLow beam

Voltage12V

ActionNext, check wire (B)

Left

Wire(R/B)

Headlight switchLow beam

Voltage0V

ActionGo to Step 4

Left

Wire(B)

Headlight switchAny position

Voltage0V

ActionNext, check right side

Left

Wire(B)

Headlight switchAny position

Voltage12V

ActionRepair ground wire (B)

Right

Wire(R/W)

Headlight switchHigh beam

Voltage12V

ActionNext, check wire (R/B)

Right

Wire(R/W)

Headlight switchHigh beam

Voltage0V

ActionGo to Step 4

Right

Wire(R/B)

Headlight switchLow beam

Voltage12V

ActionNext, check wire (B)

Right

Wire(R/B)

Headlight switchLow beam

Voltage0V

ActionGo to Step 4

Right

Wire(B)

Headlight switchAny position

Voltage0V

ActionCheck for poor connection of headlight connector

Right

Wire(B)

Headlight switchAny position

Voltage12V

ActionGo to Step 4
