LIGHTING SYSTEM
T-51prose procedureIMPORTANT
Symptom: Headlight retractor motors do not operate (both sides).
NOTE
Before troubleshooting verify the symptom by activating the headlight switch and retractor switch. Check the system using the appropriate troubleshooting below.
Symptom verification — Headlight retractor motors do not operate
Headlight switch ON
Retractor motor(s) operateYes
ActionBegin troubleshooting from Step 5
Headlight switch ON
Retractor motor(s) operateNo
ActionNext, turn ON retractor switch
Retractor switch ON
Retractor motor(s) operateYes
ActionBegin troubleshooting from Step 1
Retractor switch ON
Retractor motor(s) operateNo
ActionBegin troubleshooting from Step 1
Headlight retractor motors do not operate (both sides)

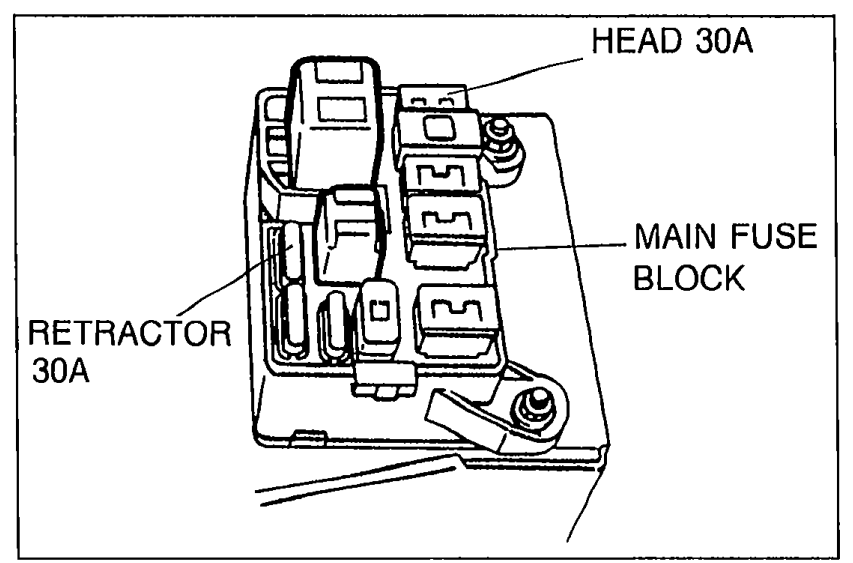

- 1Check RETRACT 30A and HEAD 30A fuses in the main fuse block. If a fuse is burned, replace it. Check and repair the wire harness, if necessary. If the fuses are OK, go to Step 2.

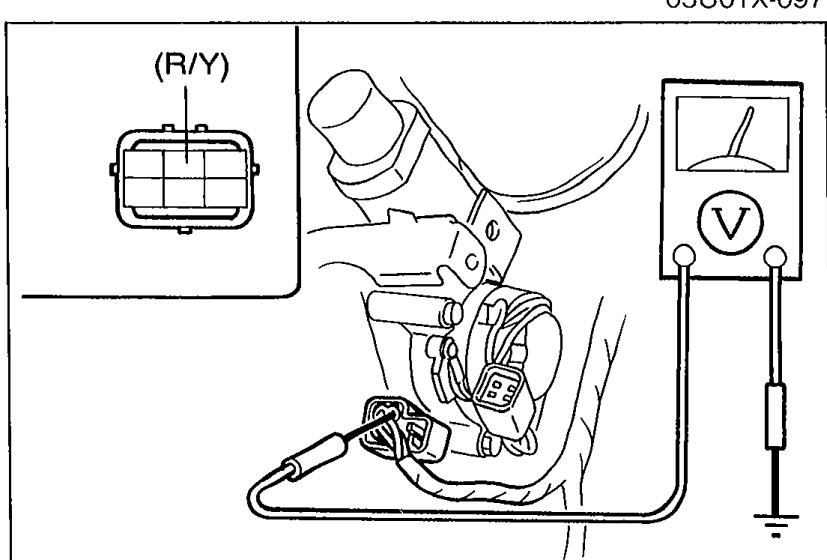

05U0TX-097 - 2Retract the headlights fully using the manual knobs. Disconnect the retractor motor connectors. Turn on the headlight switch and retractor switch. Measure the voltage at the following terminal-wires of the retractor motor connectors.

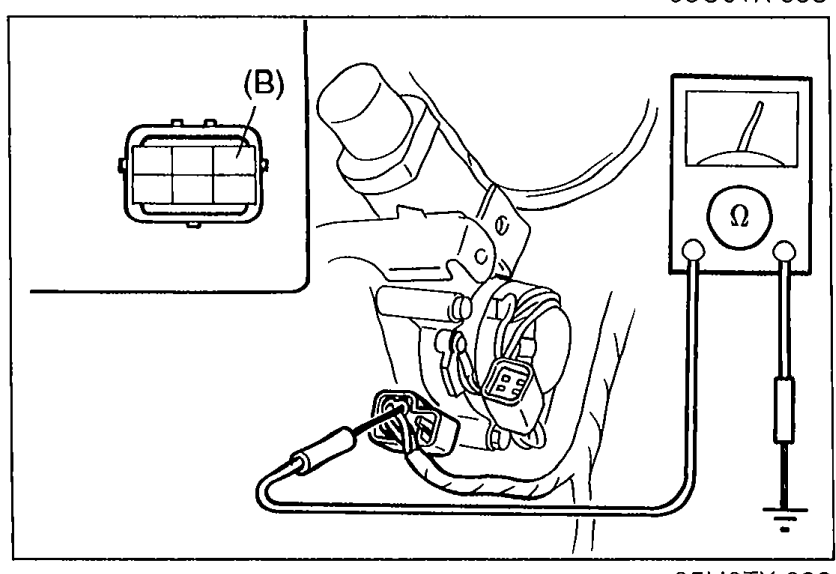

05U0TX-098 - 3Disconnect the retractor motor connectors. Check for continuity between terminal-wire (B) of the retractor motor connectors and a body ground.
05U0TX-099
Step 2 — Retractor motor voltage measurement
Left and Right
Wire(R/Y)
Voltage12V
ActionGo to Step 3
Left and Right
Wire(R/Y)
Voltage0V
ActionGo to Step 4
Step 3 — Retractor motor continuity check
Left and Right
ContinuityNo
ActionRepair wire (B)
Left and Right
ContinuityYes
ActionCheck retractor motor (Refer to page T—56)
