LIGHTING SYSTEM

T-81prose procedure
Continued from T-80

Step 4

  1. 1
    Turn on the ignition switch.

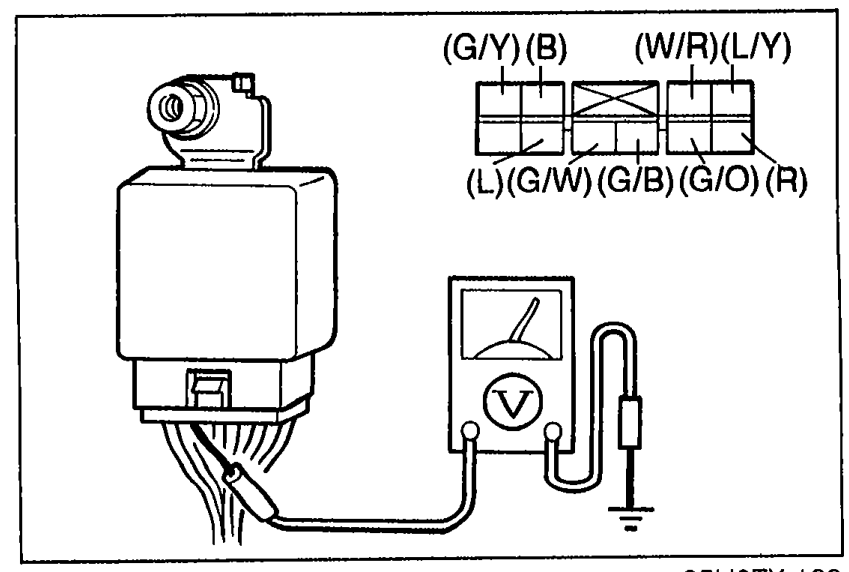

    DRL unit connector for Step 4: top row (G/Y)(B)(W/R)(L/Y); bottom row (L)(G/W)(G/B)(G/O)(R). A test lead/voltmeter probes the G/B and G/W terminals.
    05U0TX-166
  2. 2
    Turn on the headlight switch.
  3. 3
    Check the voltage at the following terminal-wires of the DRL unit connector.
  4. 4
    If not as specified, repair the wire harness. (Turn and hazard warning flasher unit — DRL unit)
  5. 5
    If correct, replace the DRL unit.

DRL unit terminal voltage (Step 4)

(G/B)
VoltageCycles 12V and 0V
(G/W)
VoltageCycles 12V and 0V

Step 5

  1. 1
    Turn on the ignition switch.

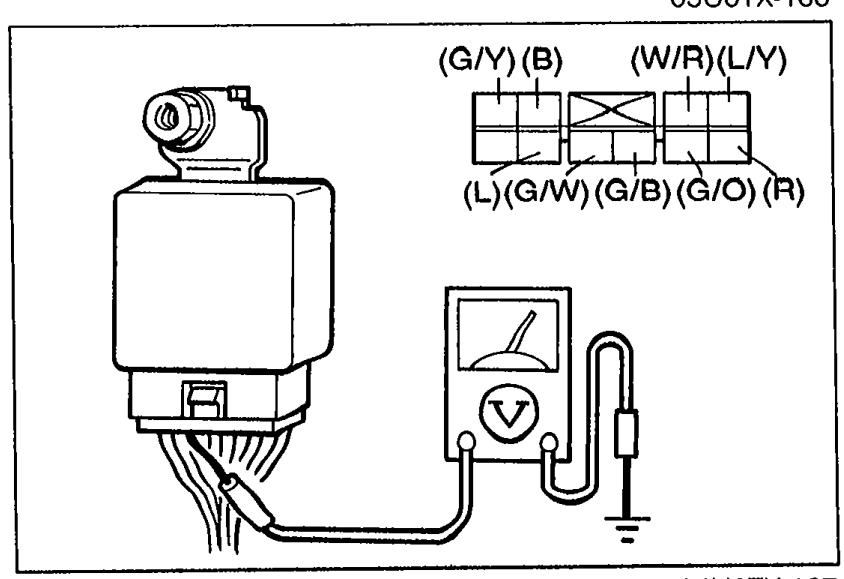

    DRL unit connector for Step 5: top row (G/Y)(B)(W/R)(L/Y); bottom row (L)(G/W)(G/B)(G/O)(R). Voltmeter probes the R terminal to check 0V at the parking-brake input.
    05U0TX-167
  2. 2
    Pull the parking brake lever more than one notch.
  3. 3
    Check the voltage at terminal-wire (R) of the DRL unit connector.
  4. 4
    If not as specified, go to Step 6.
  5. 5
    If correct, replace the DRL unit.

DRL unit terminal voltage (Step 5)

(R)
Voltage0V

Step 6

  1. 1
    Disconnect the parking brake switch connector.

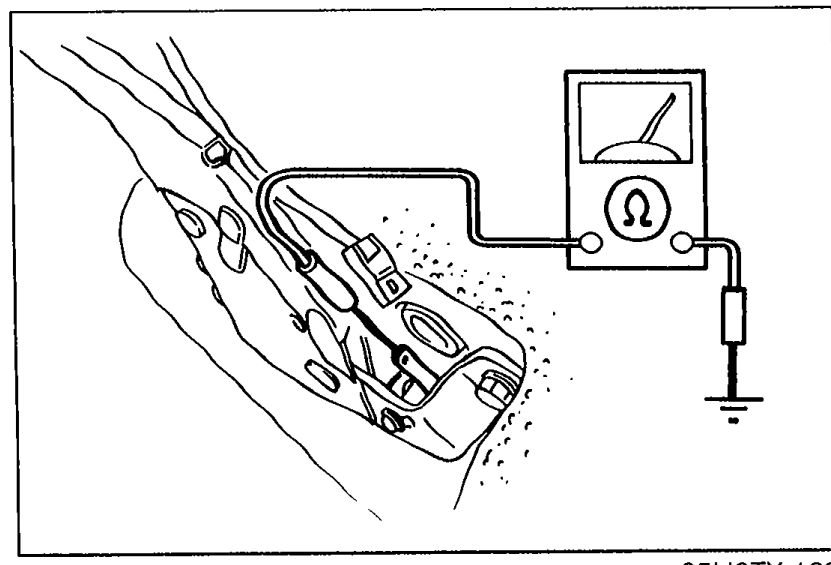

    Parking brake assembly with the parking-brake switch connector disconnected; an ohmmeter test lead is being attached to the switch terminal and a body ground for the continuity check.
    05U0TX-168
  2. 2
    Check continuity between the terminal of the switch and a body ground.
  3. 3
    If not as specified, adjust or replace the parking brake switch.
  4. 4
    If correct, repair wires (R) and (L/Y). (Parking brake switch — DRL unit)

Parking brake switch continuity (Step 6)

Pulled one notch
ContinuityYes
Released
ContinuityNo

Removal / Installation

Refer to the following pages:

Removal / Installation reference

Headlight switch (in combination switch)
Reference pageT-23
Hazard warning switch
Reference pageT-25
Turn signal switch (in combination switch)
Reference pageT-23
Daytime running lights (Front turn signal lights)
Reference pageT-69
