AIR BAG SYSTEM

T-153prose procedure
Continued from T-152

Clock Spring Connector Assembly Installation

  1. 7
    Install the clock spring connector assembly and combination switch in the reverse order of removal, referring to Installation Note.

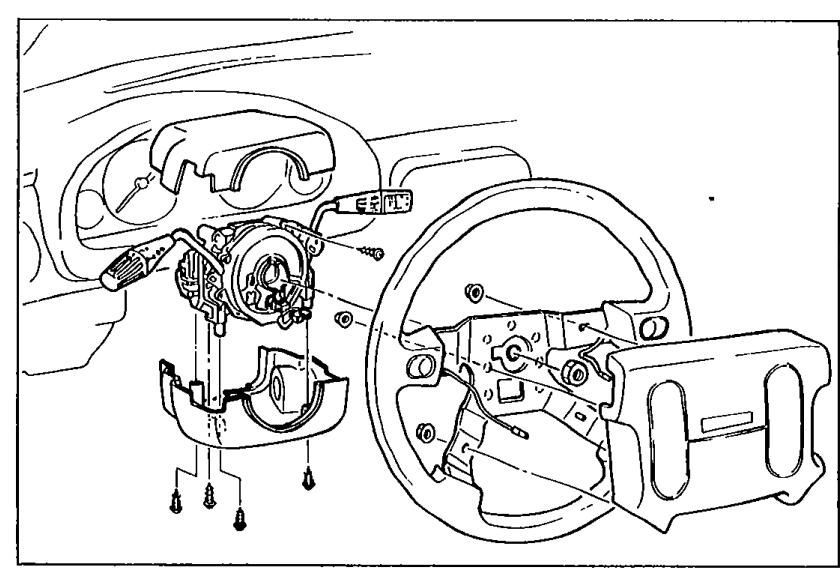

    Steering column with the clock spring connector assembly being installed in the steering column area; shows the assembly's position relative to the steering shaft.
    05U0TX-421

Installation note

Clock Spring Connector Setup

  1. 1
    Set the front wheels straight ahead.
  2. 2
    Turn the clock spring connector clockwise until it stops. (Do not force it.)

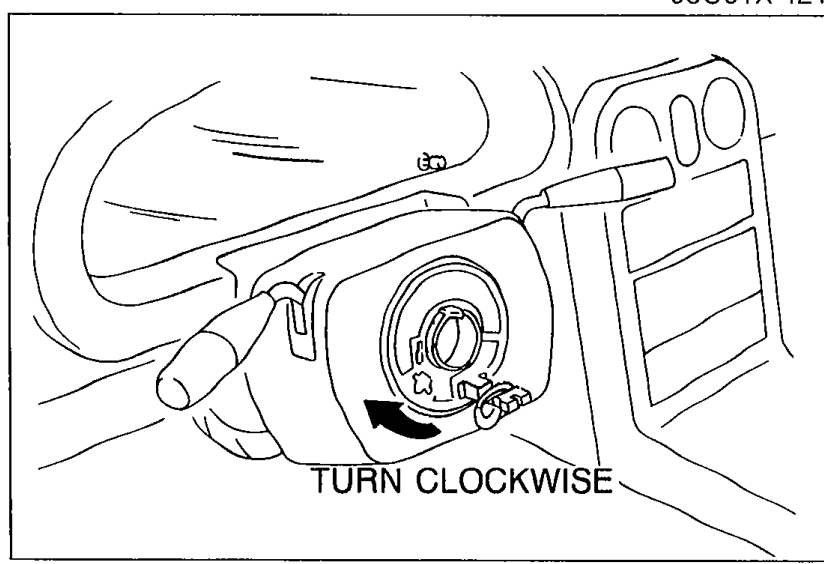

    Close-up of the clock spring connector with a rotational arrow and the label 'TURN CLOCKWISE'. Shows turning the clock spring connector clockwise until it stops.
    05U0TX-422
  3. 3
    Return the connector 2.75 turns.

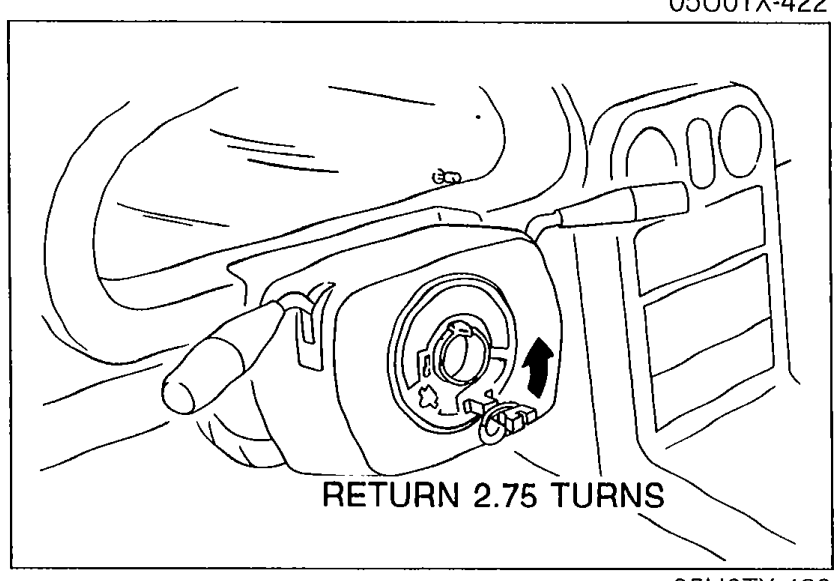

    Close-up of the clock spring connector with a counterclockwise rotational arrow and the label 'RETURN 2.75 TURNS'. Shows returning the connector by 2.75 turns.
    05U0TX-423
  4. 4
    Align the marks (counterclockwise) on the clock spring connector and the outer housing.

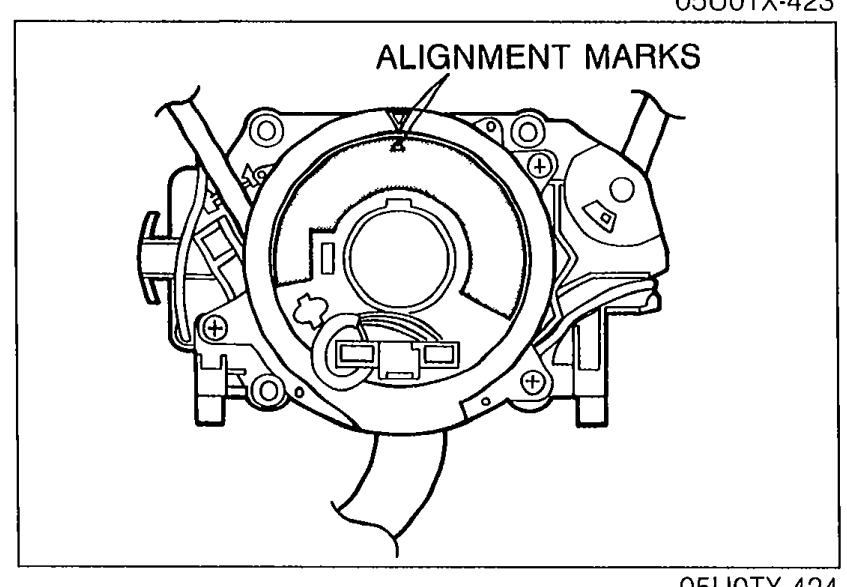

    Close-up of the clock spring connector with the label 'ALIGNMENT MARKS' pointing to alignment marks on the connector and outer housing.
    05U0TX-424
