WARNING LAMP AND SENDER UNIT

T-43prose procedure
Continued from T-42

BRAKE FLUID LEVEL SENSOR

Inspection

Brake fluid level sensor — Inspection

  1. 1
    Check continuity of the sensor.

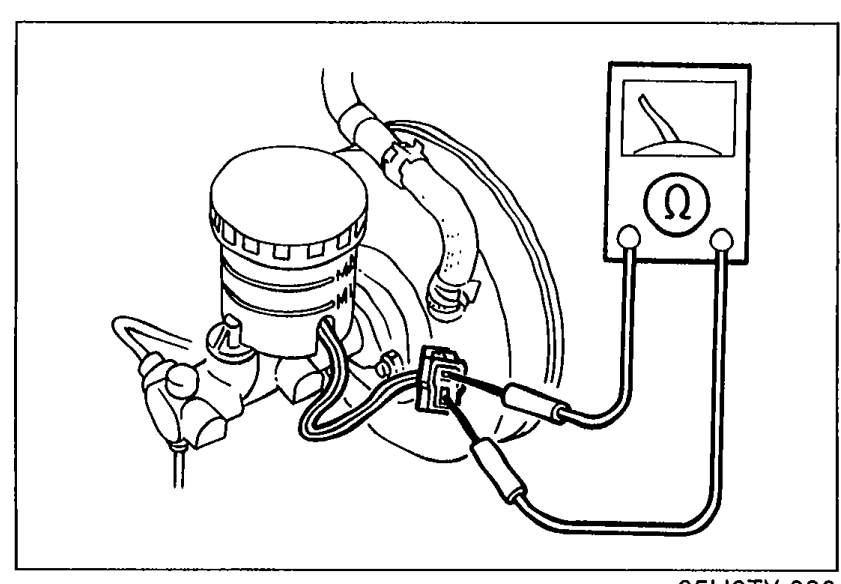

    Photo of the brake fluid reservoir with multimeter leads connected to the brake fluid level sensor terminals for continuity checking.
    05U0TX-080
  2. 2
    If continuity is not as specified, replace the level sensor.

Brake fluid level sensor continuity

Below MIN
ContinuityYes
Above MIN
ContinuityNo

PARKING BRAKE SWITCH

Inspection

Parking brake switch — Inspection

  1. 1
    Disconnect the parking brake switch connector.

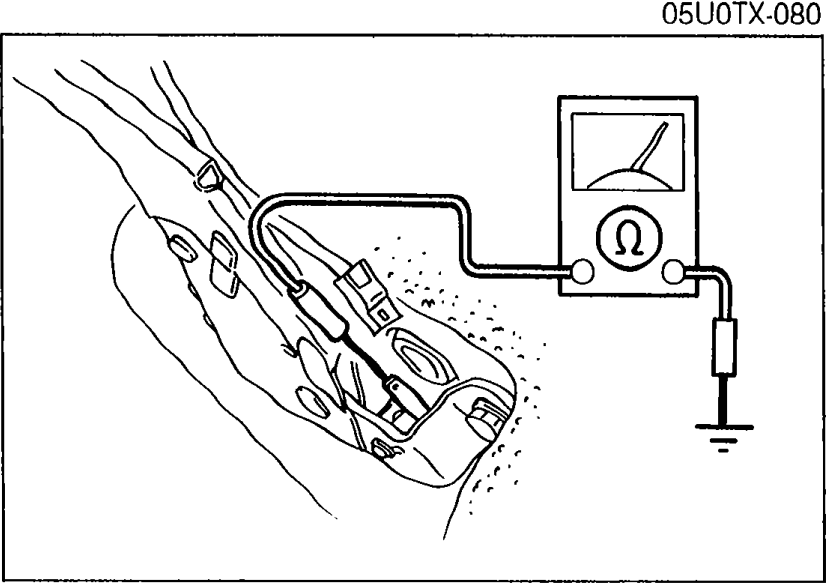

    Photo of the parking brake switch with multimeter leads connected between the switch connector and a body ground for continuity checking.
    05U0TX-081
  2. 2
    Check for continuity between the switch connector and a body ground.
  3. 3
    If continuity is not as specified, adjust or replace the parking brake switch.

Parking brake switch continuity

Pulled one notch
ContinuityYes
Released
ContinuityNo

SEAT BELT BUCKLE SWITCH

Inspection

Seat belt buckle switch — Inspection

  1. 1
    Disconnect the seat belt buckle switch connector.

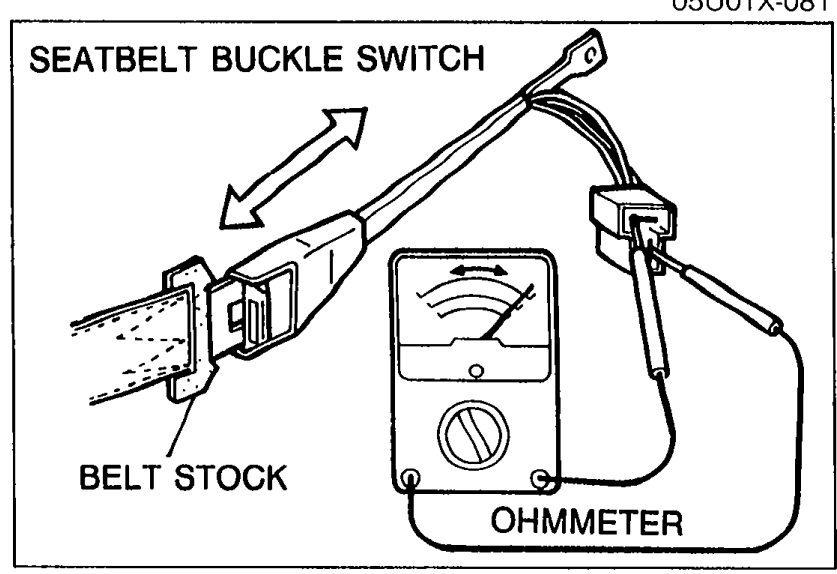

    Diagram of the seat belt buckle switch labeled 'SEATBELT BUCKLE SWITCH' with the belt stock partly inserted (labeled 'BELT STOCK') and an OHMMETER connected to the buckle switch terminals.
    05U0TX-082
  2. 2
    Check continuity of the switch.
  3. 3
    If continuity is not as specified, replace the buckle switch.

Seat belt buckle switch continuity

Seat belt buckled
ContinuityNo
Seat belt unbuckled
ContinuityYes
