LIGHTING SYSTEM

T-73prose procedure
Continued from T-72

Step 4 — Back-up light switch continuity

  1. 1
    Disconnect the back-up light switch connectors.

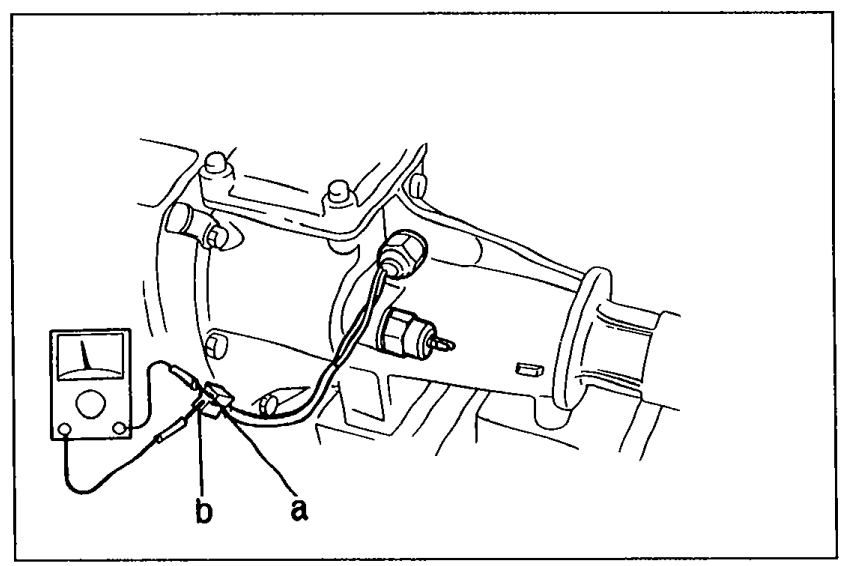

    Back-up light switch installation on transmission shown with continuity tester (ohmmeter) connected to terminals labeled 'b' and 'a' on the switch connector.
    05U0TX-145
  2. 2
    Check continuity between terminals of the switch with the transmission in reverse.

Step 4 — Continuity vs. action

Yes
ActionRepair wire harness (METER 10A fuse — Back-up light switch — Back-up light)
No
ActionReplace switch

Removal / Installation

Remove and install as shown in the figure.

Inspection

Back-up light switch

Back-up light switch inspection

  1. 1
    Disconnect the back-up light switch connectors.

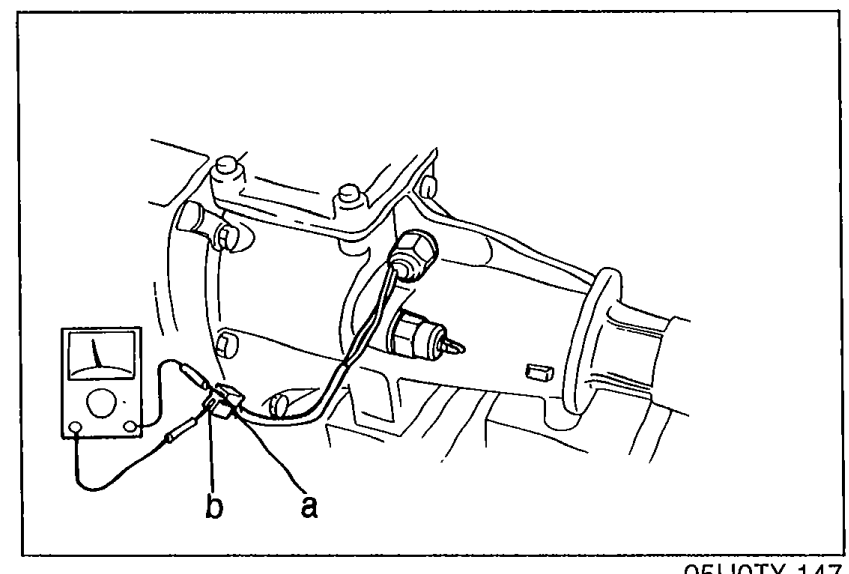

    Back-up light switch inspection — switch mounted on transmission with ohmmeter leads connected to terminals 'b' and 'a' for continuity check.
    05U0TX-147
  2. 2
    Check continuity between terminals of the switch as shown.
  3. 3
    If not as specified, replace the switch.

Back-up light switch continuity

Reverse
ContinuityYes
Others
ContinuityNo
