AIR BAG SYSTEM

T-152prose procedure
Continued from T-151

Clock Spring Connector Assembly

Clock Spring Connector Assembly Removal

  1. 1
    Disconnect the negative battery cable.
  2. 2
    Remove the knee protector, and disconnect the clock spring and combination switch connectors.

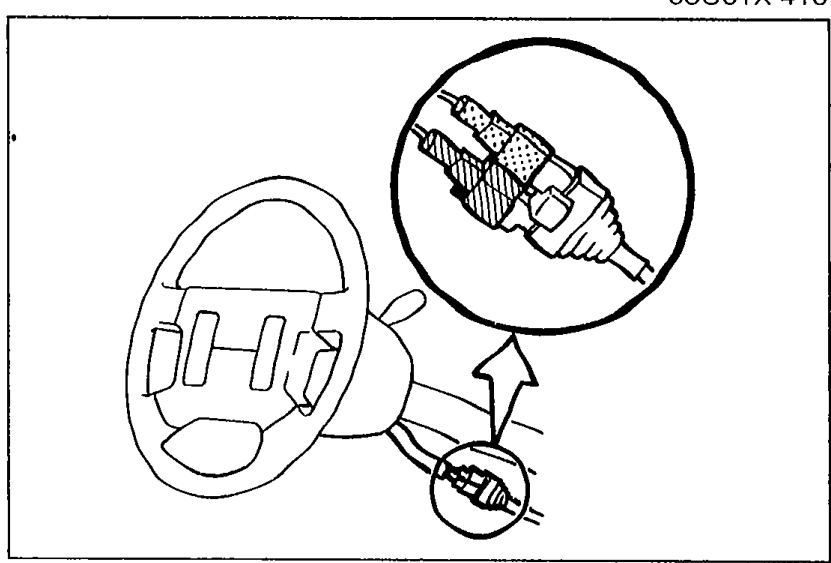

    Steering wheel with a circular detail callout showing the clock spring and combination switch connectors being disconnected after knee protector removal.
    05U0TX-417
  3. 3
    Remove the nuts and remove the air bag module. (Refer to page T-150.)

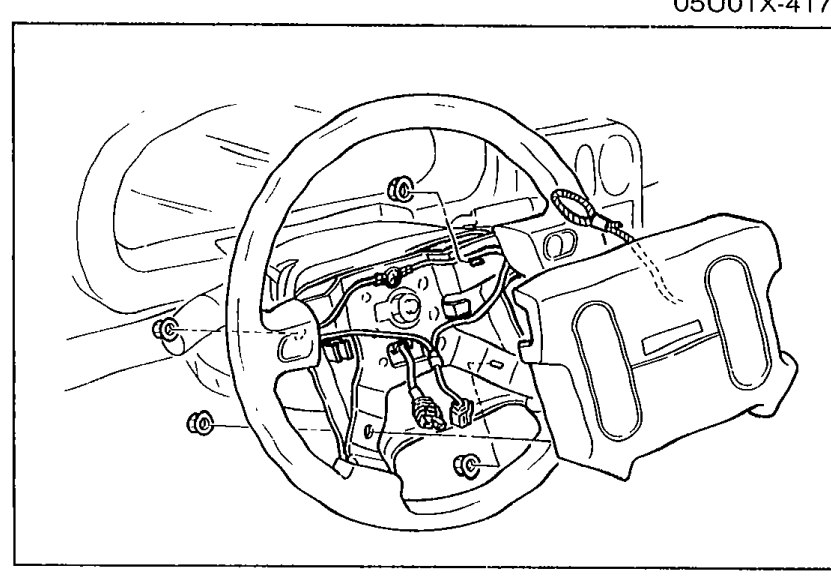

    Steering wheel with the air bag module removed showing the mounting structure for removal of the nuts and air bag module (refer to T-150).
    05U0TX-418
  4. 4
    Remove the nut and remove the steering wheel with a steering wheel puller.
    Do not strike the steering shaft with a hammer; the collapsible shaft may collapse.

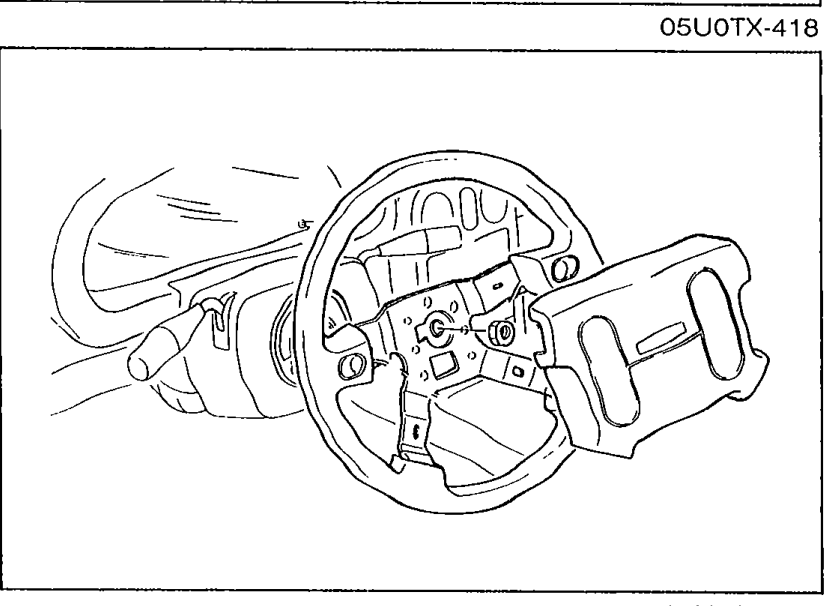

    Steering wheel with column cover removed, showing the area where the steering wheel nut is loosened and a steering wheel puller is used to remove the wheel.
    05U0TX-419
  5. 5
    Remove the screws and column cover.
  6. 6
    Loosen the screws and remove the clock spring connector assembly with the combination switch.

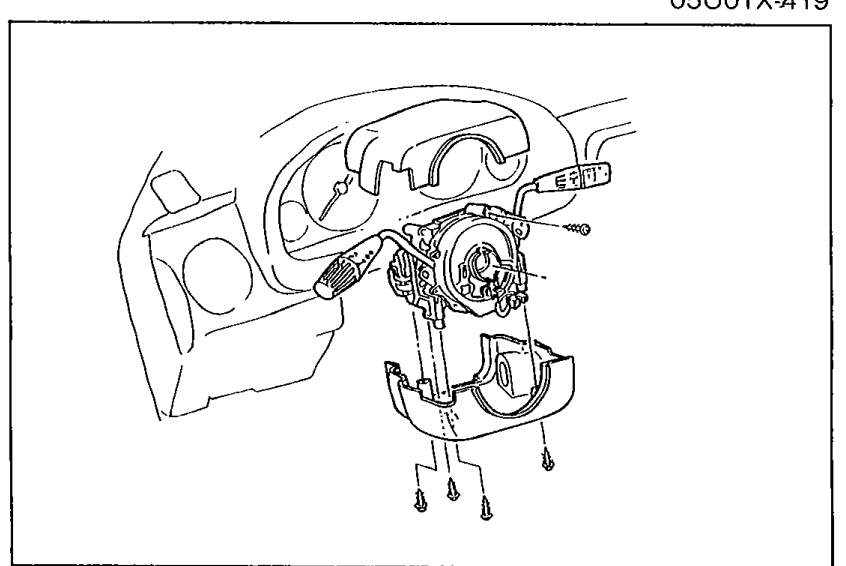

    Steering column with steering wheel removed showing the clock spring connector assembly screws being loosened to remove the assembly with the combination switch.
    05U0TX-420
