SWITCH

T-25prose procedure
Continued from T-24

HEADLIGHT RETRACTOR SWITCH AND HAZARD WARNING SWITCH ASSEMBLY

Removal / Installation

Remove and install as shown in the figure

Inspection

Headlight retractor switch

Headlight retractor switch inspection

  1. 1
    Remove the retractor switch.
  2. 2
    Check for continuity between terminals of the switch.

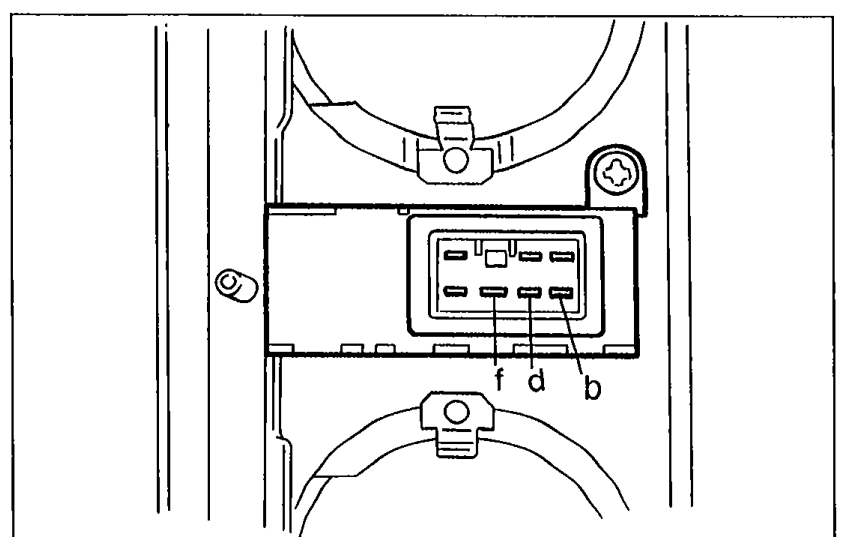

    Headlight retractor switch with connector terminals labelled b, d, f.
    05U0TX-047
  3. 3
    If not as specified, replace the retractor and hazard switch as an assembly.

Headlight retractor switch continuity

Off
bO
dO
f
On
bO
d
fO

Hazard warning switch

Hazard warning switch inspection

  1. 1
    Remove the hazard switch.
  2. 2
    Check continuity between terminals of the switch.

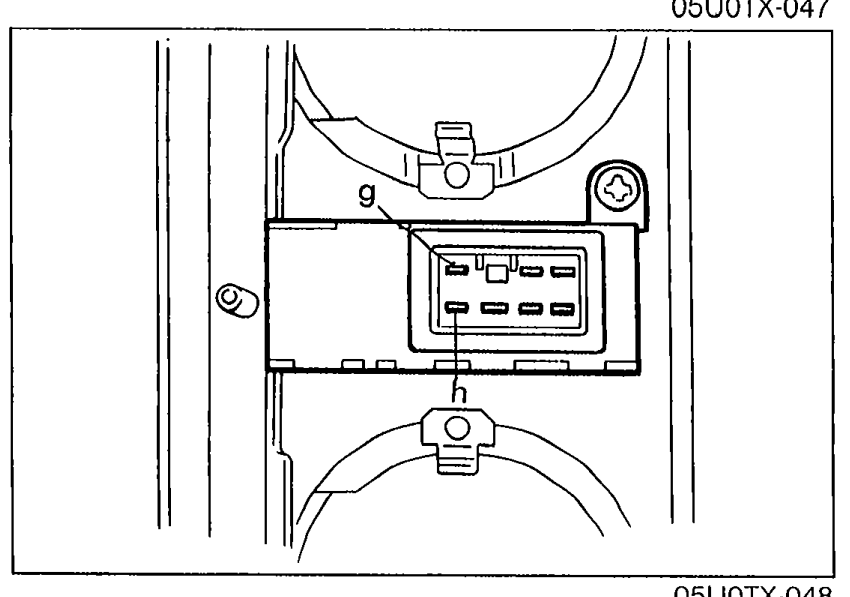

    Hazard warning switch with connector terminals labelled g, h.
    05U0TX-048
  3. 3
    If not as specified, replace the hazard and retractor switch as an assembly.

Hazard warning switch continuity

On
gO
hO
Off
g
h
