INSTRUMENT CLUSTER

T-35prose procedure
Continued from T-34

FUEL GAUGE Inspection

Preparation SST

SSTFor inspection of gauges
49 0839 285 Checker, fuel and thermometer

Fuel Gauge Inspection

  1. 1
    Remove the instrument cluster. (Refer to page T-33.)
  2. 2
    Apply 12V to terminal 2k and ground terminal 2j.

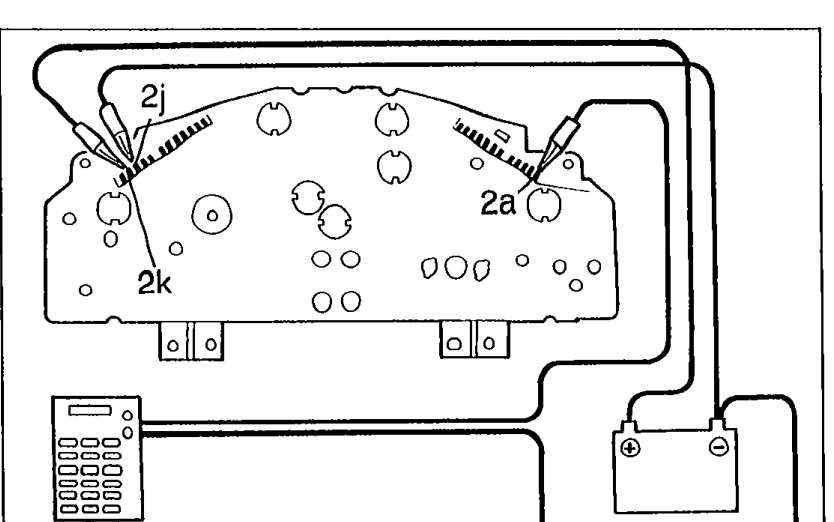

    Instrument cluster rear view showing connection of SST 49 0839 285 to terminals 2k, 2j, and 1a with red and black leads for fuel gauge inspection.
    05U0TX-065
  3. 3
    Connect the red lead of the SST to terminal 1a and the black lead to a ground.
  4. 4
    Set the SST to the resistance values shown in the figure.

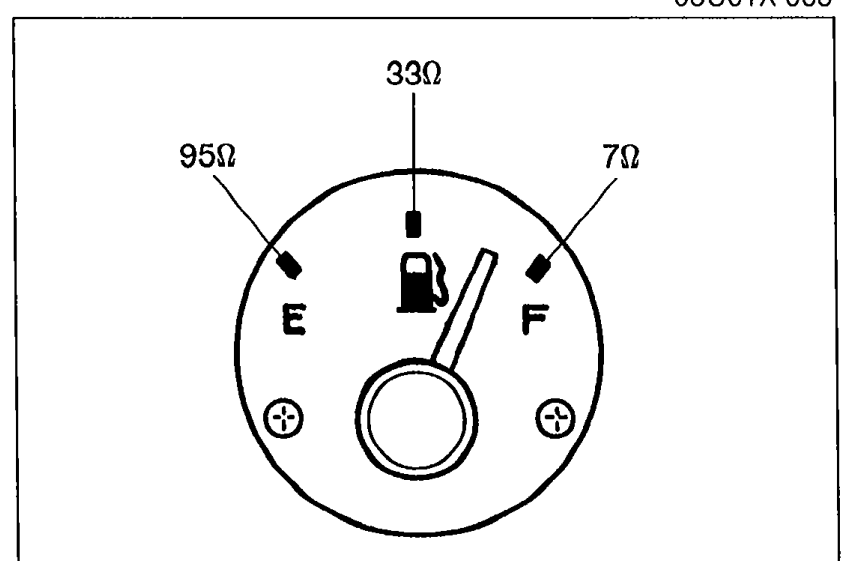

    Fuel gauge dial face showing needle test positions: 95 ohm (E), 33 ohm, and 7 ohm (F) with fuel pump icon.
    9MU0TX-087
  5. 5
    Verify that the needle indicates the correct values.

OIL PRESSURE GAUGE Inspection

Preparation SST

SSTFor inspection of gauges
49 0839 285 Checker, fuel and thermometer

Oil Pressure Gauge Inspection

  1. 1
    Remove the instrument cluster. (Refer to page T-33.)
  2. 2
    Apply 12V to terminal 2k and ground terminal 2j.

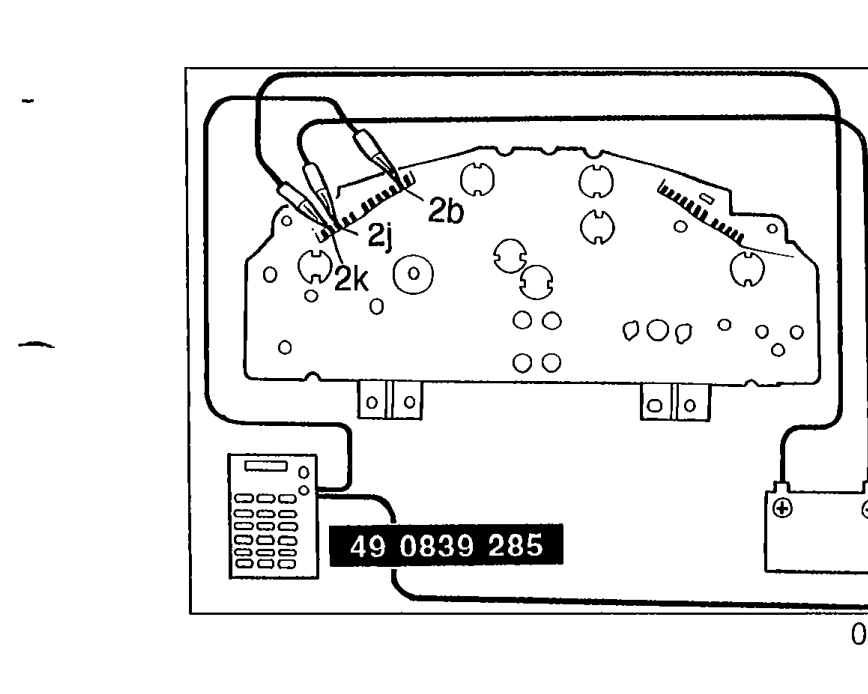

    Instrument cluster rear view showing connection of SST 49 0839 285 to terminals 2k, 2j, and 2b with red and black leads for oil pressure gauge inspection.
    05U0TX-065
  3. 3
    Connect the red lead of the SST to terminal 2b and the black lead to a ground.
