Removal / Installation

Remove and install as shown in the figure.

Inspection

Turn signal switch (U.S. spec.)

Turn signal switch (U.S. spec.) inspection

  1. 1
    Remove the knee protector.
  2. 2
    Disconnect the combination switch connector.
  3. 3
    Check continuity between terminals of the switch.
  4. 4
    If not as specified, replace the combination switch as an assembly.

Turn signal switch continuity (U.S. spec.)

Left
FUO—O
TLO—O
TR
Right
FUO—O
TL
TRO—O

Turn signal switch (Canada spec.)

Turn signal switch (Canada spec.) inspection

  1. 1
    Remove the column cover, then disconnect the turn signal switch connector.
  2. 2
    Check for continuity between terminals of the switch.
  3. 3
    If not as specified, replace the turn signal switch.

Turn signal switch continuity (Canada spec.)

Left
FUO—O
TLO—O
TR
Right
FUO—O
TL
TRO—O

Hazard warning switch

Hazard warning switch inspection

  1. 1
    Remove the hazard switch.

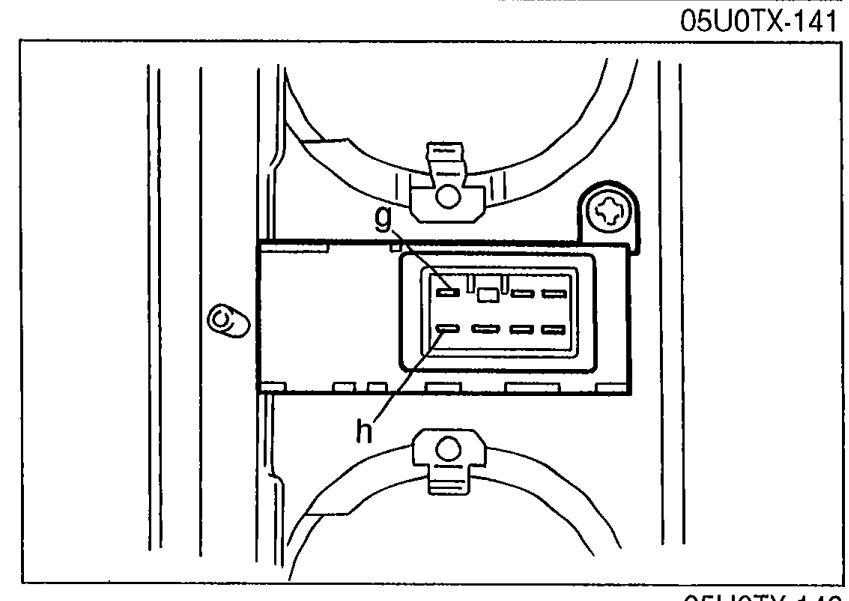

    Hazard warning switch removed from the cluster panel with terminal h identified on the switch connector.
    05U0TX-142
  2. 2
    Check continuity between terminals of the switch.
  3. 3
    If not as specified, replace the hazard switch and retractor switch as an assembly.

Hazard warning switch continuity

On
Terminal gO—O
Terminal hO—O
Off
Terminal g
Terminal h
