LIGHTING SYSTEM — Symptom: Turn and hazard warning lights do not operate (Canada spec.)

T-65prose procedureUnverified

Canada specification.

Symptom: Turn and hazard warning lights do not operate (Canada spec.)

Step 1 — Check HAZARD 15A fuse

  1. 1
    Check HAZARD 15A fuse in the fuse box.

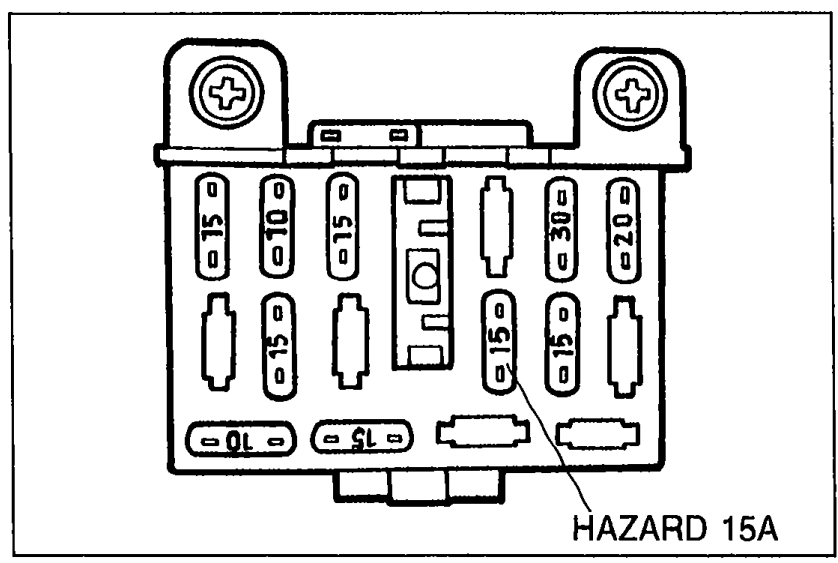

    Photo of the fuse box with HAZARD 15A fuse identified by a callout arrow.
    05U0TX-306
  2. 2
    If the fuse is burned, replace it. Check and repair the wire harness, if necessary.
  3. 3
    If the fuse is OK, go to Step 2.

Step 2 — Check turn and hazard warning flasher unit

Check turn and hazard warning flasher unit

  1. 1
    Remove the turn and hazard warning flasher unit.

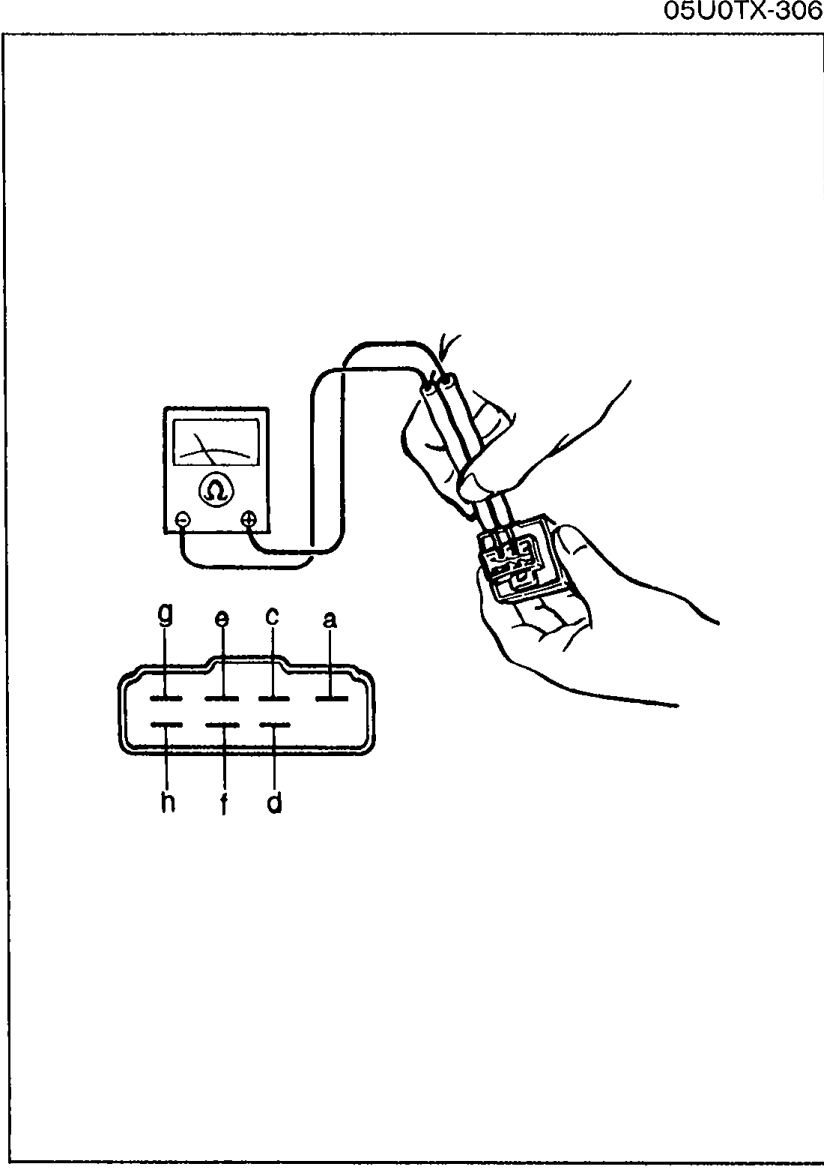

    Ohmmeter probing the turn-and-hazard warning flasher unit connector. Below it is the connector pin layout showing pins a, b, c, d, e, f, g, h.
    05U0TX-307
  2. 2
    Check continuity between terminals of the unit with an ohmmeter.
    Set the ohmmeter to ×1000Ω range.
  3. 3
    If not as specified, replace the flasher unit.
  4. 4
    If the flasher unit is OK, reconnect the connector and go to Step 3.

Turn and hazard warning flasher unit terminal continuity

a — c
ContinuityX
a — d
ContinuityX
a — e
ContinuityO
a — f
ContinuityO
a — g
ContinuityX
a — h
ContinuityX
c — a
ContinuityO
c — d
ContinuityO
c — e
ContinuityO
c — f
ContinuityX
c — g
ContinuityO
c — h
ContinuityO
d — a
ContinuityX
d — c
ContinuityX
d — e
ContinuityX
d — f
ContinuityX
d — g
ContinuityO
d — h
ContinuityO
e — a
ContinuityO
e — c
ContinuityX
e — d
ContinuityX
e — f
ContinuityX
e — g
ContinuityX
e — h
ContinuityX
f — a
ContinuityX
f — c
ContinuityX
f — d
ContinuityX
f — e
ContinuityX
f — g
ContinuityX
f — h
ContinuityX
g — a
ContinuityX
g — c
ContinuityX
g — d
ContinuityX
g — e
ContinuityO
g — f
ContinuityX
g — h
ContinuityX
h — a
ContinuityO
h — c
ContinuityX
h — d
ContinuityX
h — e
ContinuityX
h — f
ContinuityX
h — g
ContinuityX

Step 3 — Check turn signal switch

Check turn signal switch

  1. 1
    Remove the column cover, then disconnect the turn signal switch connector.

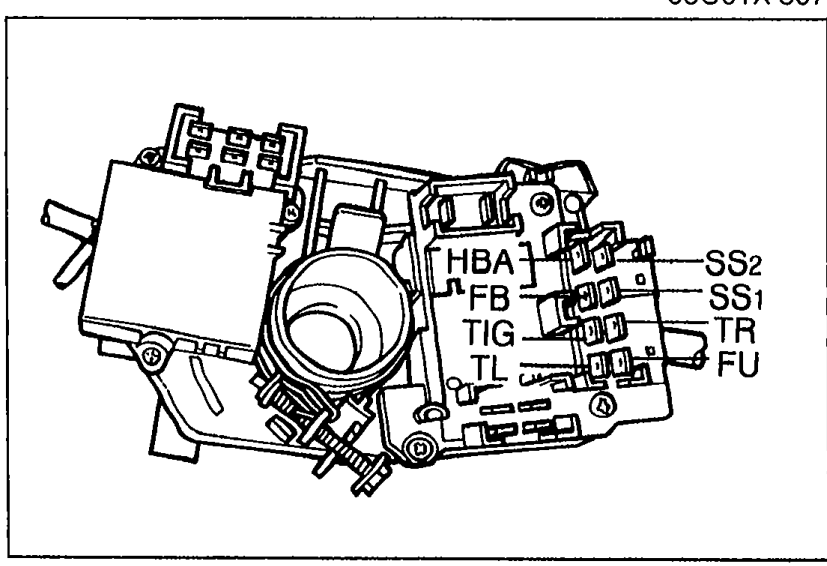

    Photo of the column-mounted turn signal switch with its multi-pin connector. Terminal labels visible: HBA, FBA, TIG, SSa, SSb, TR, TL, FU.
    9MU0TX-166
  2. 2
    Check for continuity between terminals of the switch.
  3. 3
    If not as specified, replace the turn signal switch.
  4. 4
    If the turn signal switch is OK, reconnect the connector and go to Step 4.

Turn signal switch continuity

Left
FUO
TLO
TR
Right
FUO
TL
TRO
