LIGHTING SYSTEM — Inspection

T-56prose procedureUnverified

Headlight switch continuity layout is the U.S. spec. variant; Canada spec. likely follows.

Inspection

Retractor motor

Retractor motor inspection

1
Disconnect the motor link.
2
Disconnect the retractor motor connector.
3

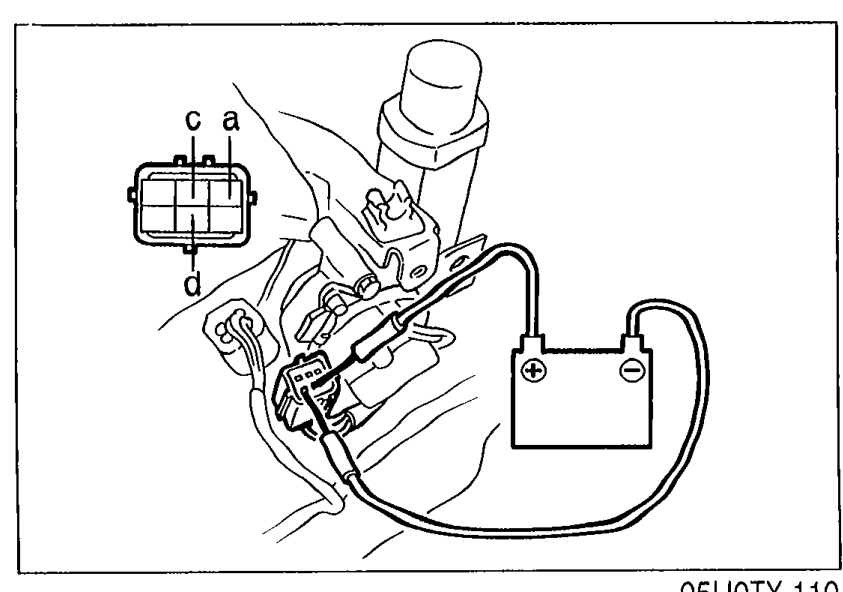

Connect 12V to terminal f and ground terminal a of the motor connector.
05U0TX-110
4
Check the motor operation when connecting 12V as shown.
5
If not as specified, replace the retractor motor.

Retractor motor operation check

Terminal 12V	Terminal Ground	Motor operation
c	a	Motor rotates to raised position
d	a	Motor rotates to retracted position

Terminal Grounda

Motor operationMotor rotates to raised position

Terminal Grounda

Motor operationMotor rotates to retracted position

Retractor switch

Retractor switch inspection

1

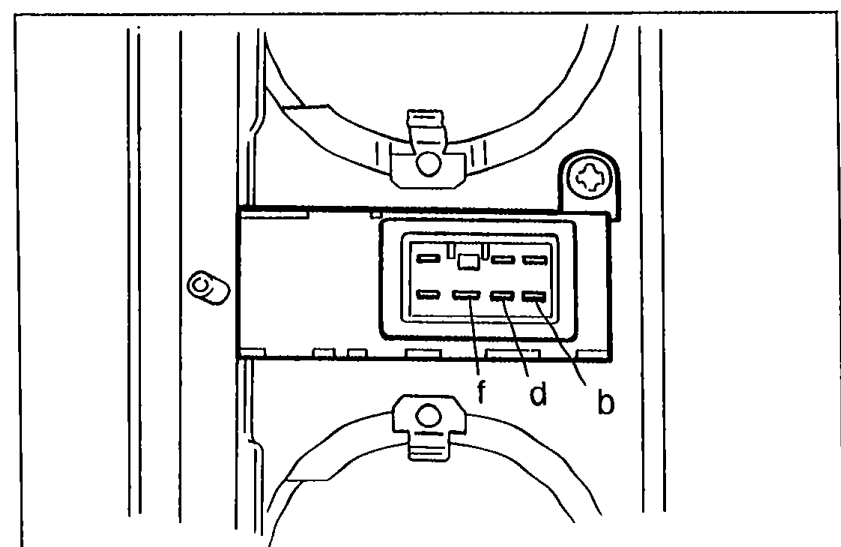

Remove the retractor switch.
2
Check for continuity between terminals of the switch.
05U0TX-111
3
If not as specified, replace the retractor switch.

Retractor switch continuity

Switch	b	d	f
Off	O—O
On		O—O	O—O

Off

bO—O

dO—O

fO—O

NOTE

O—O: Indicates continuity

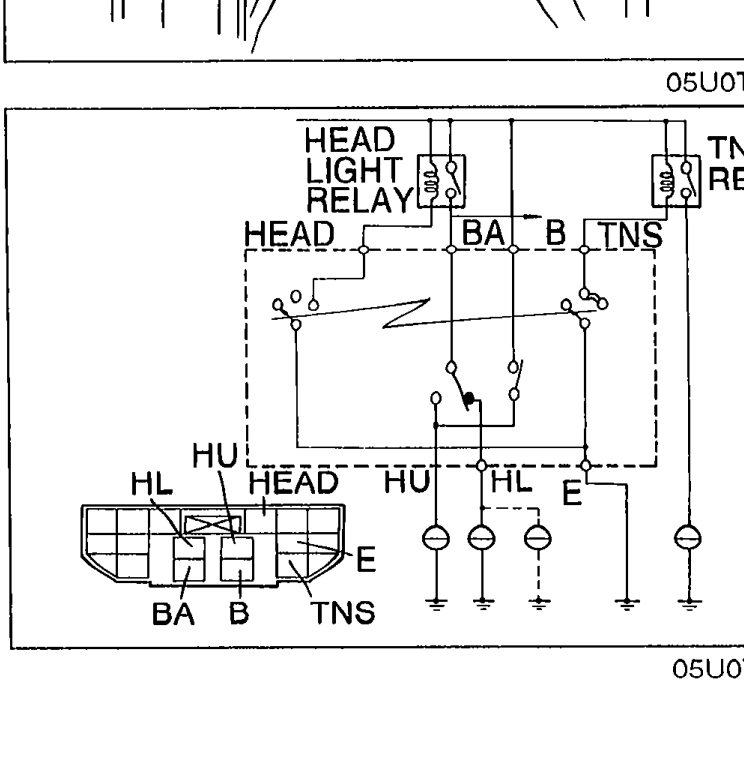

Headlight switch — U.S. spec.

Headlight switch (U.S. spec.) inspection

1
Remove the knee protector.
2
Disconnect the combination switch connector.
3
Check for continuity between terminals of the switch.
05U0TX-112
4
If not as specified, replace the combination switch as an assembly.

Headlight switch (U.S. spec.) continuity

Position		E	HL	HU	TNS	HEAD	BA	B
Headlight	Low beam	O	O			O	O	O
Headlight	High beam	O		O		O	O	O
Passing		O		O				O
Tail, Parking					O		O	O

Headlight

Low beam

HLO

TNS

HEADO

BAO

Headlight

High beam

HUO

TNS
