CRUISE CONTROL SYSTEM — STRUCTURAL VIEW

T-97component photo

STRUCTURAL VIEW

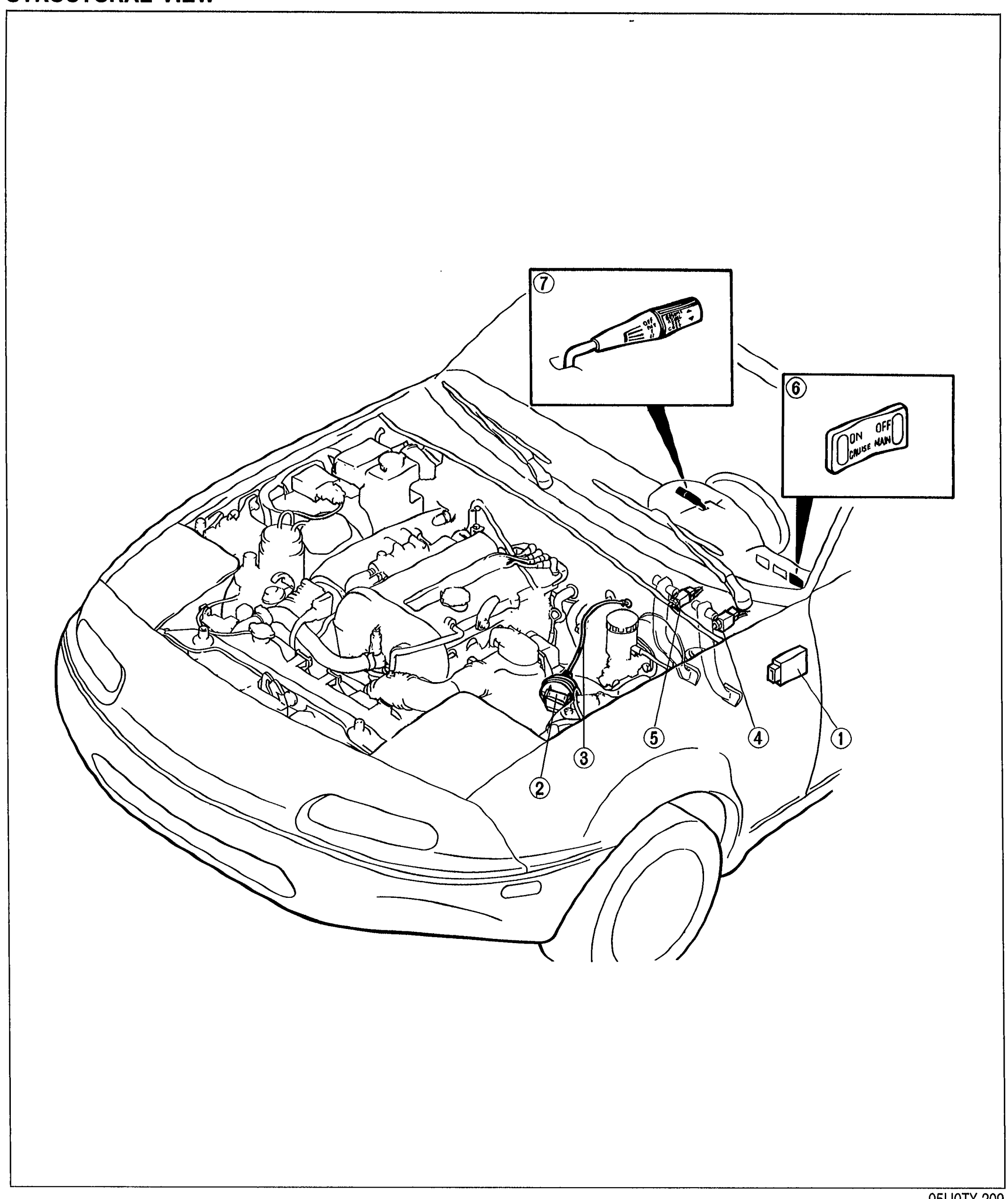

Component LocationFig. fig1

Cruise control system component locations.

Three-quarter front view of the MX-5 with the hood open exposing the engine bay. Numbered callouts identify the cruise control system components: 1 (cruise control unit, right side of engine bay), 2 (actuator on engine), 3 (actuator cable), 4 (clutch switch), 5 (brake switch), plus two zoomed callouts at the top right showing 7 (cruise control switch on combination switch lever) and 6 (cruise control main switch rocker on dash).

05U0TX-209

11(Cruise control unit)

22(Actuator)

33(Actuator cable)

44(Clutch switch)

55(Brake switch)

66(Cruise control main switch)

77(Cruise control switch)
