HORN — REMOVAL / INSTALLATION

T-95prose procedure

U.S. spec. horn-switch removal involves air bag handling; Canada spec. presumably continues on a later page.

REMOVAL / INSTALLATION

Horn

Remove and install as shown in the figure.

Horn Switch — U.S. spec.

Horn Switch — U.S. spec.

  1. 1
    Disconnect the negative battery cable.

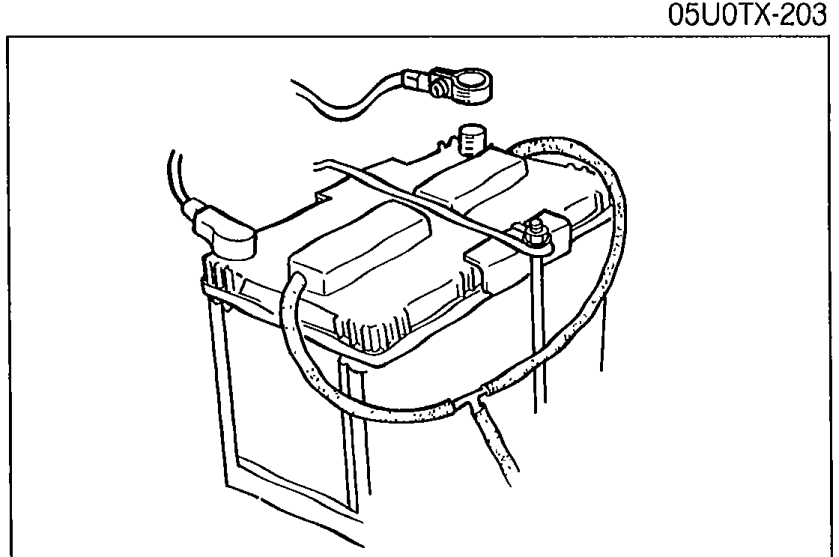

    Photo of the battery in the engine bay with the negative cable being disconnected.
    05U0TX-204
  2. 2
    Remove the air bag module, then remove the steering wheel assembly.
    When carrying an air bag module, make sure the trim cover is pointed away from your body to prevent injury in the event of an accidental deployment.
    When placing an air bag module on any surface place it with the trim cover upward. This will reduce the motion of the module if it is accidentally deployed.

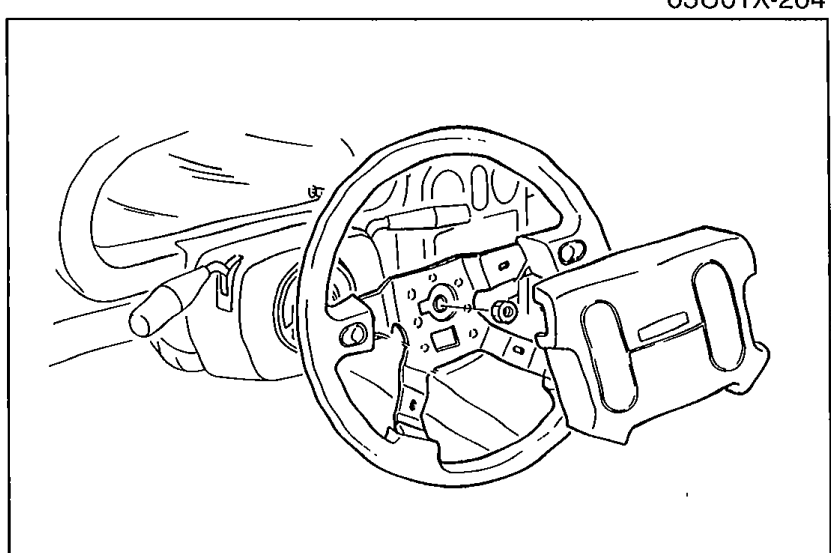

    Photo of the steering wheel with the air bag module removed, showing the clock spring assembly behind it.
    05U0TX-205
  3. 3
    Before installation of the steering wheel reset the clock spring connector as follows: (1) Set the front wheels straight ahead. (2) Turn the clock spring connector clockwise until it stops. (3) Return 2.75 turns. (4) Align the marks (counterclockwise) on the clock spring connector and the outer hausing.

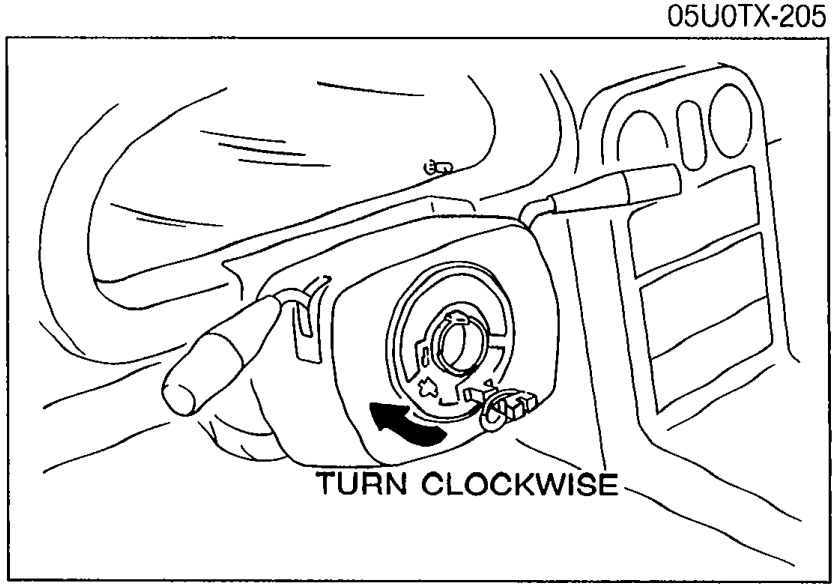

    Photo of the clock spring connector with an arrow indicating 'TURN CLOCKWISE' direction for resetting.
    05U0TX-206
