AIR BAG SYSTEM

T-151prose procedure
Continued from T-150

Air Bag Module Installation (cont.)

  1. 3
    Install in the reverse order of removal.

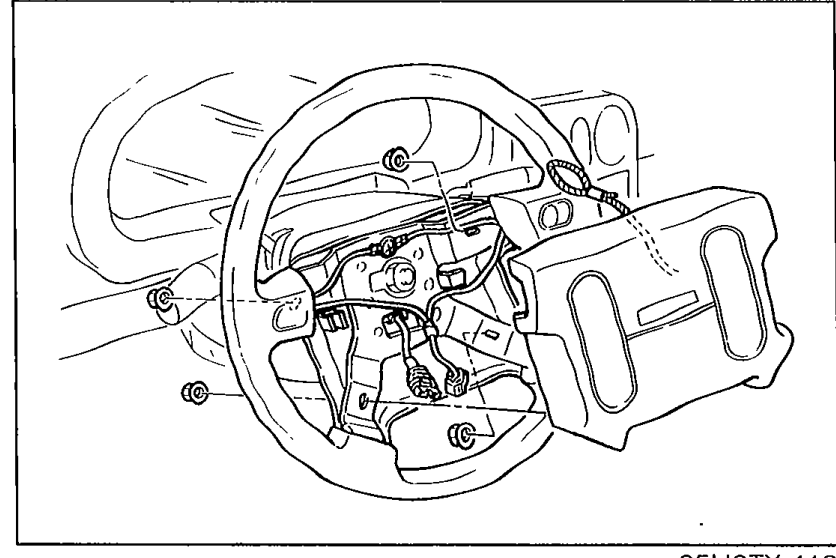

    Steering wheel with the air bag module removed showing the mounting points. Same view as previous page illustrating step 3 (install in reverse order).
    05U0TX-413

Diangosis Module and Backup Battery

Diangosis Module and Backup Battery Removal/Installation

  1. 1
    Disconnect the negative battery cable.
  2. 2
    Remove the knee protector, and disconnect the clock spring connectors (Orange and blue).

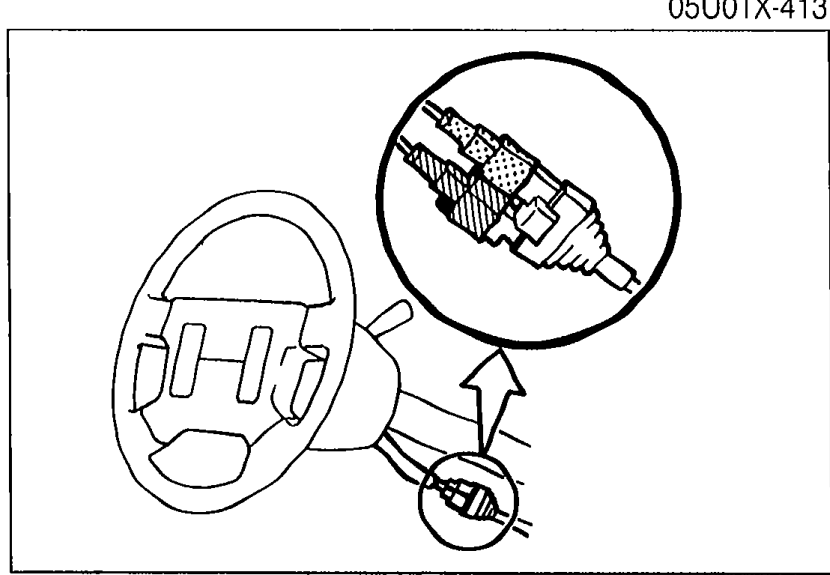

    Lower steering column area showing the clock spring connector (Orange and blue) being disconnected after removal of the knee protector.
    05U0TX-414
  3. 3
    Disconnect the diagnostic module and backup battery connectors.

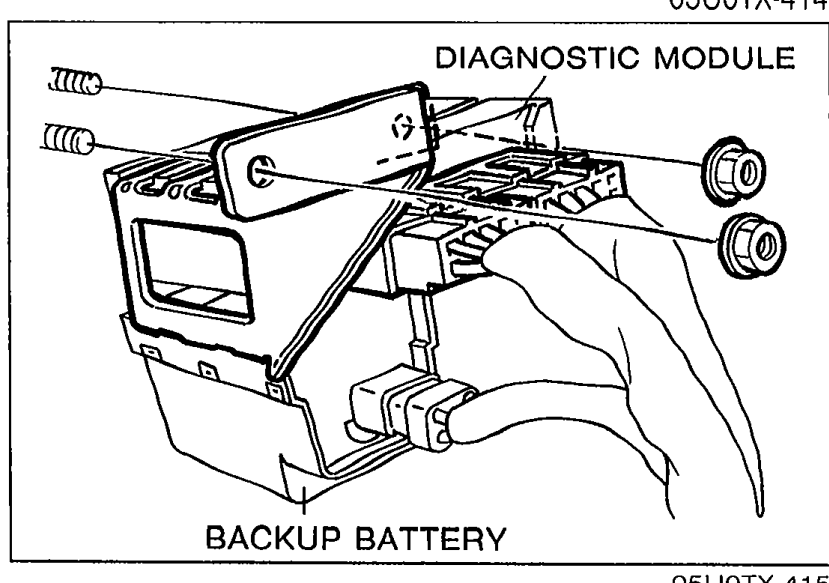

    View of the diagnostic module and backup battery assembly mounted in the vehicle, with labels 'DIAGNOSTIC MODULE' and 'BACKUP BATTERY' identifying the components.
    05U0TX-415
  4. 4
    Remove the nuts and remove the diagnostic module and backup battery as an assembly.
  5. 5
    Install the diagnostic module and backup battery in the reverse order of removal.
