AIR BAG SYSTEM — Inspection — D-sensor (LH) and D-sensor (RH)

T-157prose procedure
Continued from T-156

INSPECTION

D-sensor (LH)

D-sensor (LH) Inspection

  1. 1
    Disconnect the negative battery cable.
  2. 2
    Remove the knee protector, and disconnect the clock spring connectors (Orange and blue).

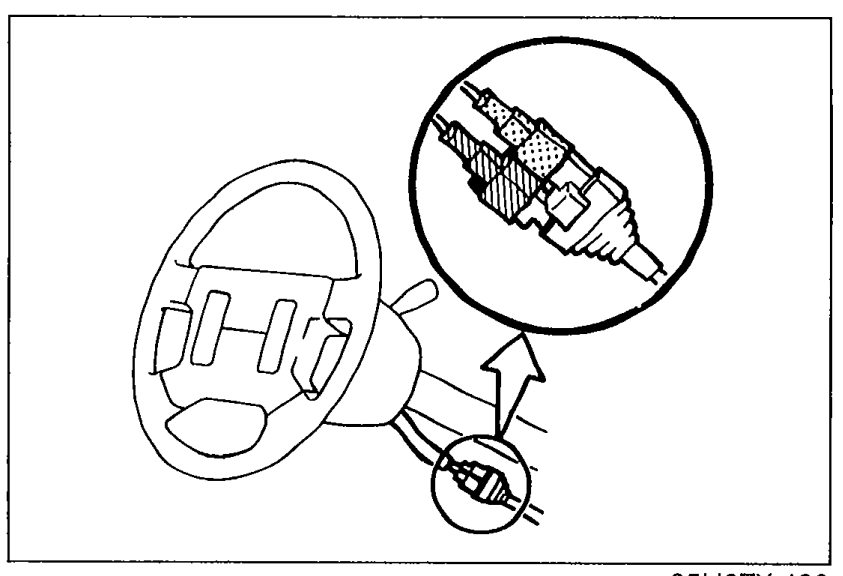

    Steering wheel (LH side) with callout zoom showing the D-sensor (LH) clock spring connectors being disconnected.
    05U0TX-436
  3. 3
    Remove the bolts and the relay box.
  4. 4
    Disconnect the D-sensor (LH) connector.
  5. 5
    Measure resistance between the terminals of the sensor connectors.
    Do not connect an ohmmeter to the harness side connector. Connect the ohmmeter to the sensor side connectors only.

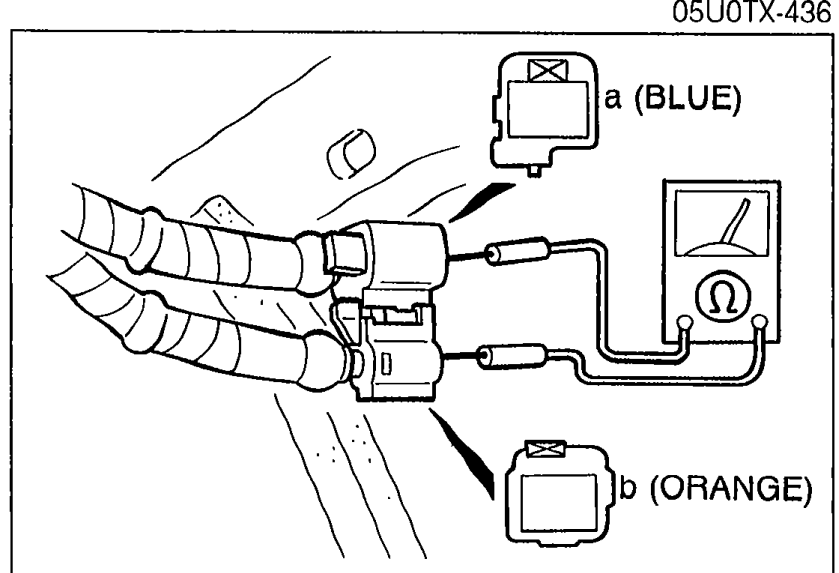

    Wire harness section showing two connectors labelled 'a (BLUE)' and 'b (ORANGE)' with an ohmmeter connected between terminals a and b on the sensor side to measure resistance.
    05U0TX-437
  6. 6
    If not as specified, replace the sensor.
    Do not try to repair the wire harness.

D-sensor (LH) resistance

a (blue)—b (orange)
ResistanceApprox. 1.2 kΩ

D-sensor (RH)

D-sensor (RH) Inspection

  1. 1
    Disconnect the negative battery cable.
  2. 2
    Remove the knee protector, and disconnect the clock spring connectors (Orange and blue).

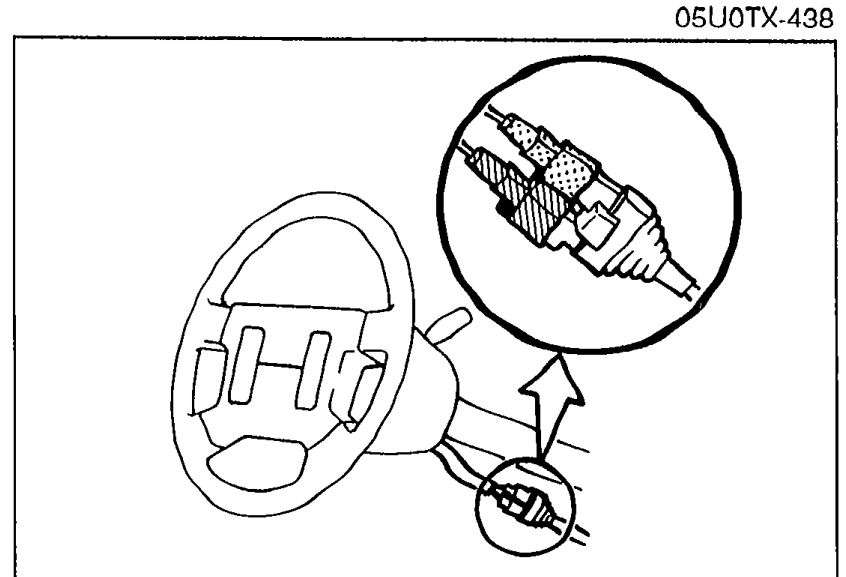

    Steering wheel (RH side) with callout zoom showing the D-sensor (RH) clock spring connectors being disconnected.
    05U0TX-439
  3. 3
    Remove the bolts and the main fuse block.
  4. 4
    Disconnect the D-sensor (RH) connector.
  5. 5
    Measure resistance between the terminals of the sensor connectors.
    Do not connect an ohmmeter to the harness side connector. Connect the ohmmeter to the sensor side connectors only.

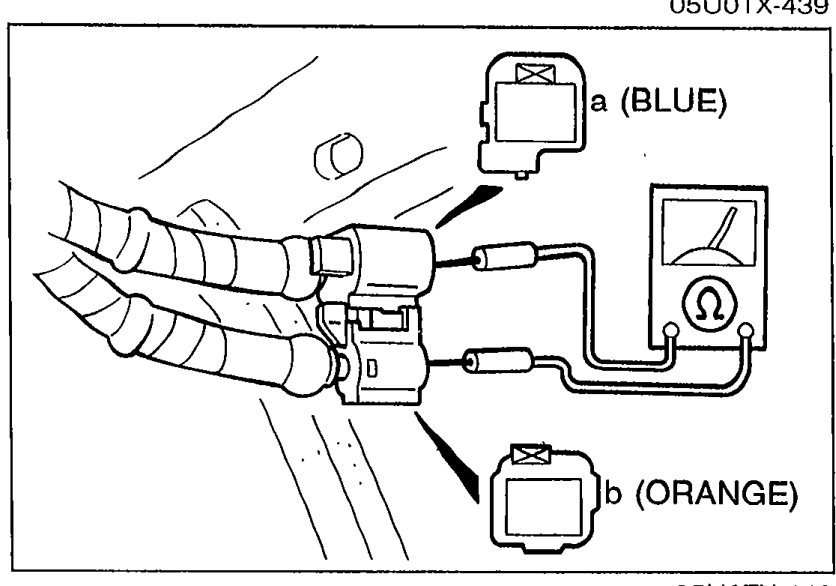

    Wire harness section showing two connectors labelled 'a (BLUE)' and 'b (ORANGE)' with an ohmmeter connected between terminals a and b on the sensor side to measure resistance.
    05U0TX-440
  6. 6
    If not as specified, replace the sensor.
    Do not try to repair the wire harness.

D-sensor (RH) resistance

a (blue)—b (orange)
ResistanceApprox. 1.2 kΩ
