SWITCH
T-23spec tableU.S. spec. combination switch inspection.
Inspection
U.S. spec.
Inspection (U.S. spec.)
- 1Disconnect the negative battery cable.
- 2Remove the knee protector.

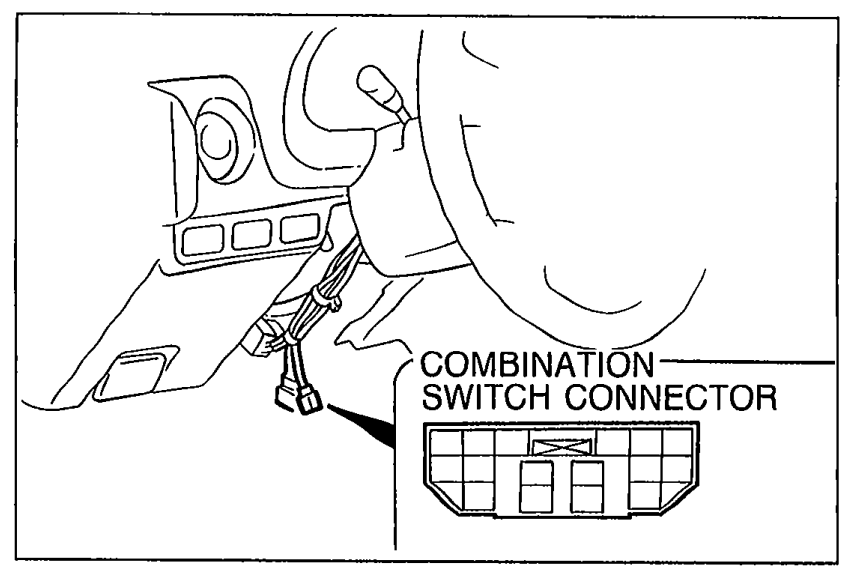

- 3Disconnect the combination switch connector.
05U0TX-038 - 4Check the continuity or the resistance between the terminals described with an ohmmeter.
- 5If the continuity or resistance is not as specified, replace the combination switch as an assembly.
Lights, dimmer, and passing switch
Lights, dimmer, and passing switch continuity
Headlight
Sub-PositionLow beam
EO
HLO
HU
TNSO
HEADO
BA
B
Headlight
Sub-PositionHigh beam
EO
HL
HUO
TNSO
HEADO
BA
B
Passing
Sub-Position
EO
HL
HUO
TNS
HEAD
BAO
BO
Tail, Parking
Sub-Position
EO
HL
HU
TNSO
HEAD
BA
B
NOTE
O—O : Indicates continuity
Turn signal switch
Turn signal switch continuity
Left
FUO
TLO
TR
Right
FUO
TL
TRO
NOTE
O—O : Indicates continuity
Windshield wiper and washer switch
Windshield wiper and washer switch continuity
Wiper switch
Sub-PositionOFF / OFF
ASO
WIG
SWL
SWH
INT
SW (One touch)
Wiper switch
Sub-PositionOFF / ON
ASO
WIG
SWL
SWH
INT
SW (One touch)O
Wiper switch
Sub-PositionINT
AS
WIGO
SWL
SWH
INTO
SW (One touch)
Wiper switch
Sub-PositionI (Low)
AS
WIGO
SWLO
SWH
INT
SW (One touch)
Wiper switch
Sub-PositionII (High)
AS
WIGO
SWL
SWHO
INT
SW (One touch)
Washer switch ON
Sub-Position
ASO
WIG
SWL
SWH
INT
SW (One touch)
NOTE
O—O : Indicates continuity
Cruise control switch
Cruise control switch continuity
SET/COAST
SEO
RE
EO
RESUME/ACCEL
SE
REO
EO
NOTE
O—O : Indicates continuity
