RELAY
T-18prose procedureDRL Unit is for Canada vehicles.
DRL UNIT
Inspection
Voltage test
NOTE
While performing the following voltage tests, apply 12V to terminal j and ground terminal i.
DRL Unit Voltage Test

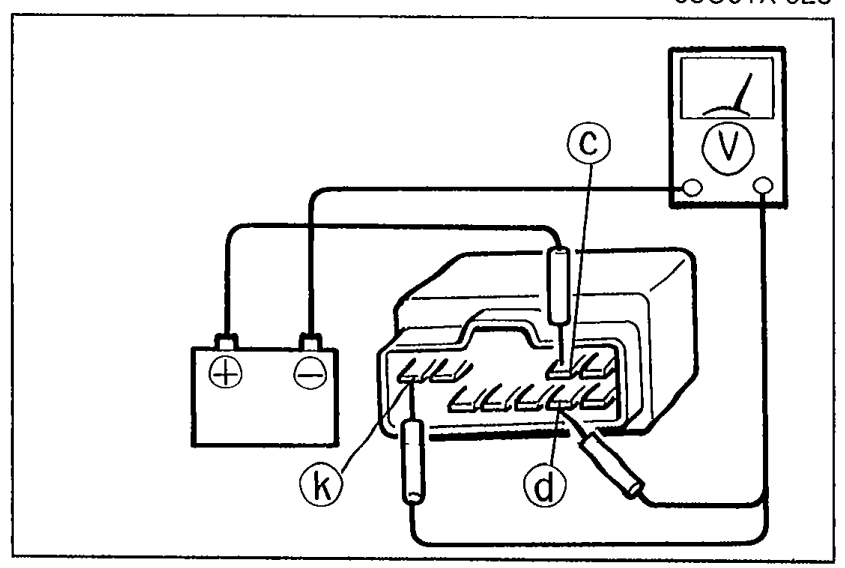

- 1Apply 12V to terminal c, and measure the voltage at terminals d and k.
05U0TX-026 - 2If not as specified, replace the DRL unit.
- 3Remove the 12V from terminal c.

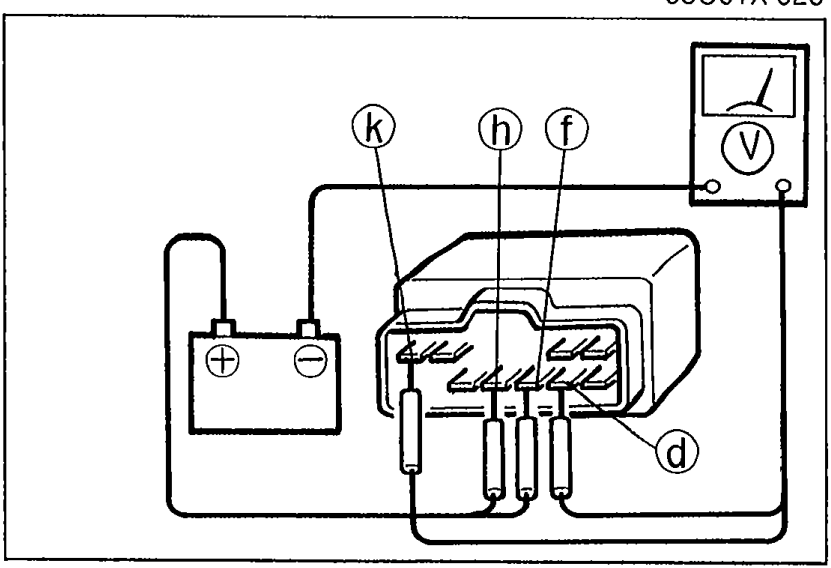

- 4Apply 12V to terminals f and h, and measure the voltage at terminals d and k.
05U0TX-027 - 5If not as specified, replace the DRL unit.
- 6Remove the 12V from terminals f and h.

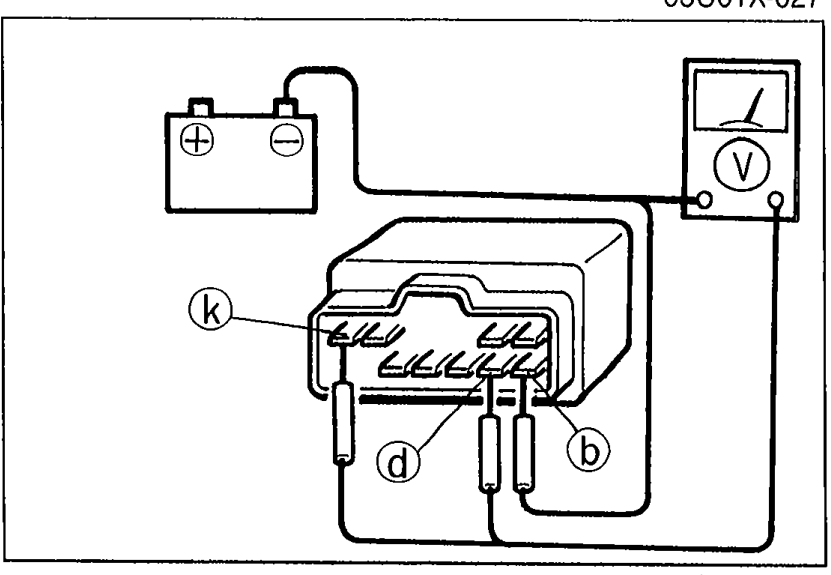

- 7Ground terminal b, and measure the voltage at terminals d and k.
05U0TX-028 - 8If not as specified, replace the DRL unit.
Voltage test — Step 1 (12V to terminal c)
d
Voltage12V
k
Voltage12V
Voltage test — Step 4 (12V to terminals f and h)
d
Voltage12V
k
Voltage12V
Voltage test — Step 7 (terminal b grounded)
d
Voltage12V
k
Voltage12V
Continuity test
DRL Unit Continuity Test

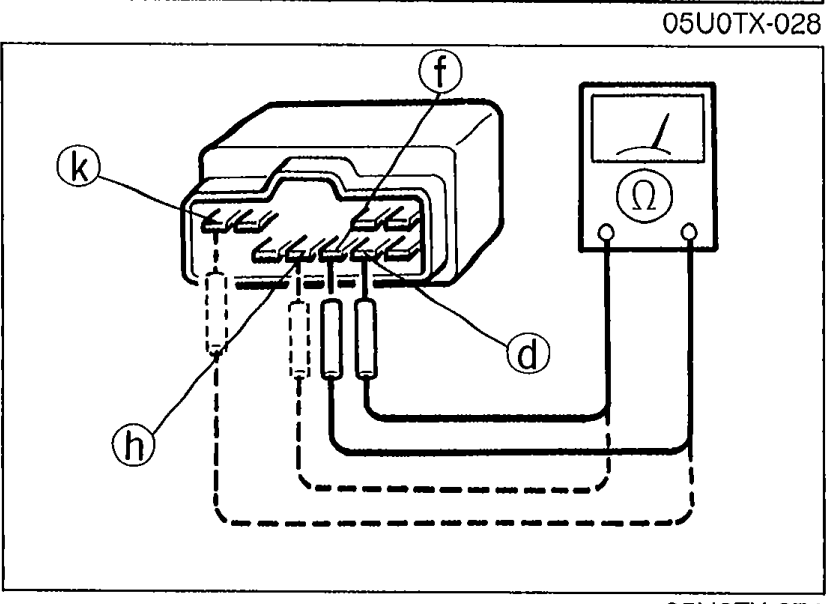

- 1Check for continuity between terminals of the DRL unit.
05U0TX-274 - 2If not as specified, replace the DRL unit.
Continuity test
d—f
ContinuityYes
h—k
ContinuityYes
