LIGHTING SYSTEM
T-46prose procedureU.S. spec.
Description
The headlight system consists of two halogen headlights mounted on retractable mechanisms, a headlight switch in the combination switch, and a retractor switch between the center ventilation outlets. When the headlight switch is rotated to the second position, the headlights are activated and the headlight retractor motors lift the headlights. If only the retractor switch is turned ON, the headlights will raise to the upright position, but all lights will be off. An emergency manual retractor knob is located atop each headlight retractor motor.
WARNING
When using the manual control knob, the negative battery cable must be disconnected to prevent accidental movement of the headlight and possible injury.
Troubleshooting
IMPORTANT
Symptom: Headlights do not operate. (U.S. spec.)
Step 1

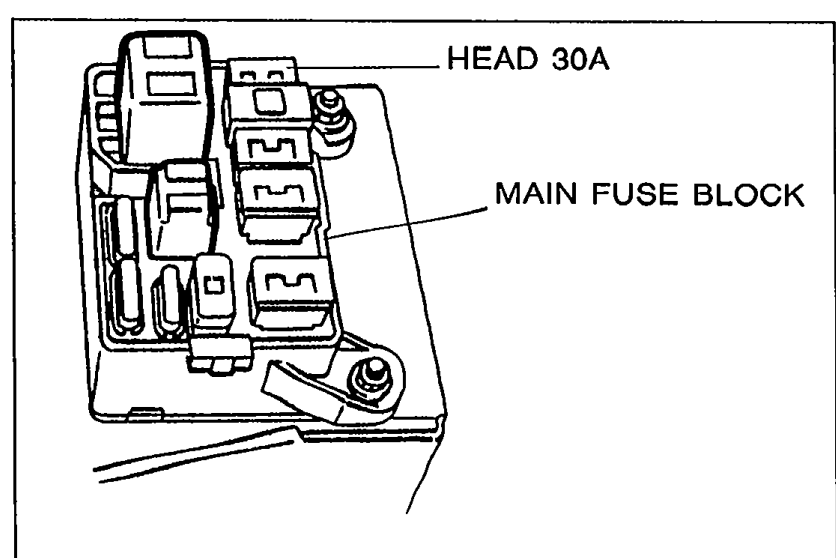

Step 1 — Check HEAD 30A fuse
- 1Check HEAD 30A fuse in the main fuse block.
05U0TX-296 - 2If the fuse is burned, replace it. Check and repair the wiring harness, if necessary.
- 3If the fuse is OK, go to Step 2.
Step 2

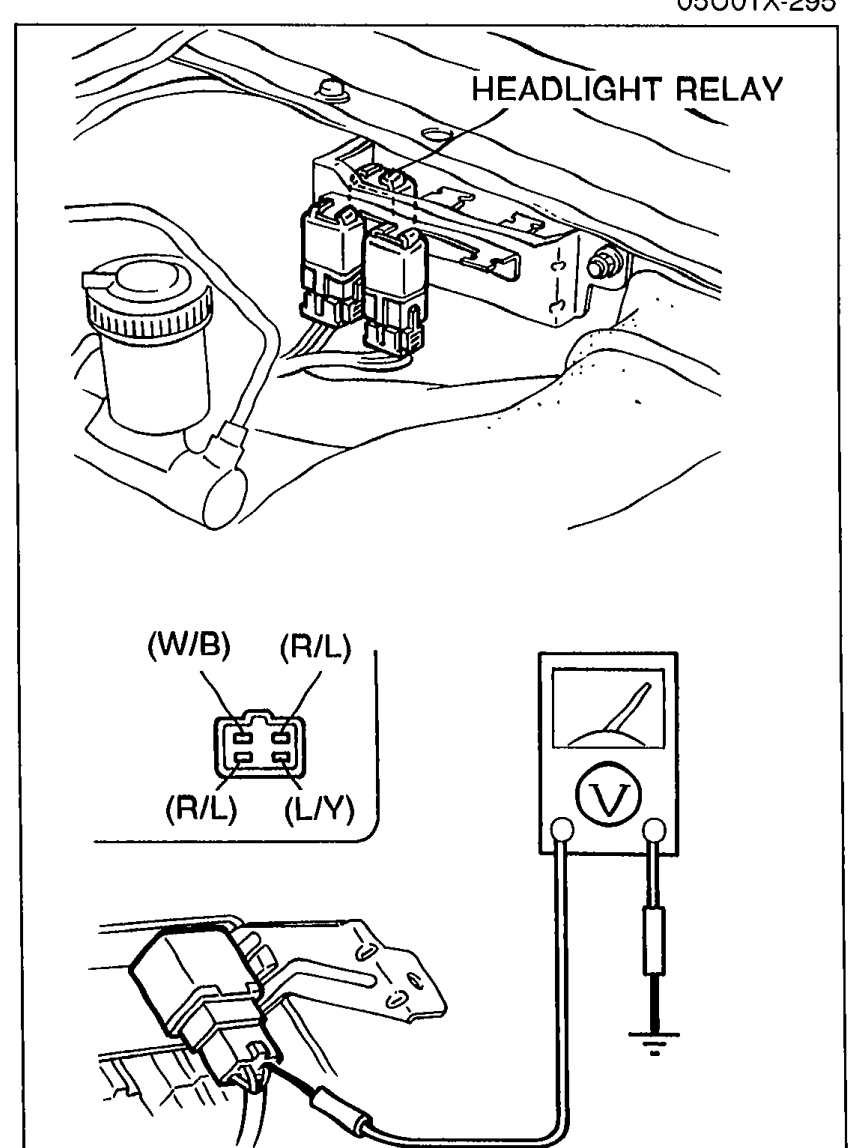

Step 2 — Check headlight relay connector voltages
- 1Turn the headlight switch ON.
05U0TX-087 - 2Measure the voltage at the following terminal-wires of the headlight relay connector.
Headlight relay connector voltages — Action
(W/B)
Voltage12V
ActionGo to Step 3
(W/B)
Voltage0V
ActionNext check wire (L/Y)
(L/Y)
Voltage12V
ActionGo to Step 6
(L/Y)
Voltage0V
ActionNext check wire (R/L)
(R/L: Terminal A)
Voltage12V
ActionNext check wire (R/L)
(R/L: Terminal A)
Voltage0V
ActionRepair wire (R/L) (HEAD 30A—Headlight relay)
(R/L: Terminal D)
Voltage12V
ActionReplace headlight relay
(R/L: Terminal D)
Voltage0V
ActionRepair wire (R/L) (HEAD 30A—Headlight relay)
