RELAY
T-15component photoDRL control unit applies to Canada vehicles only.
STRUCTURAL VIEW

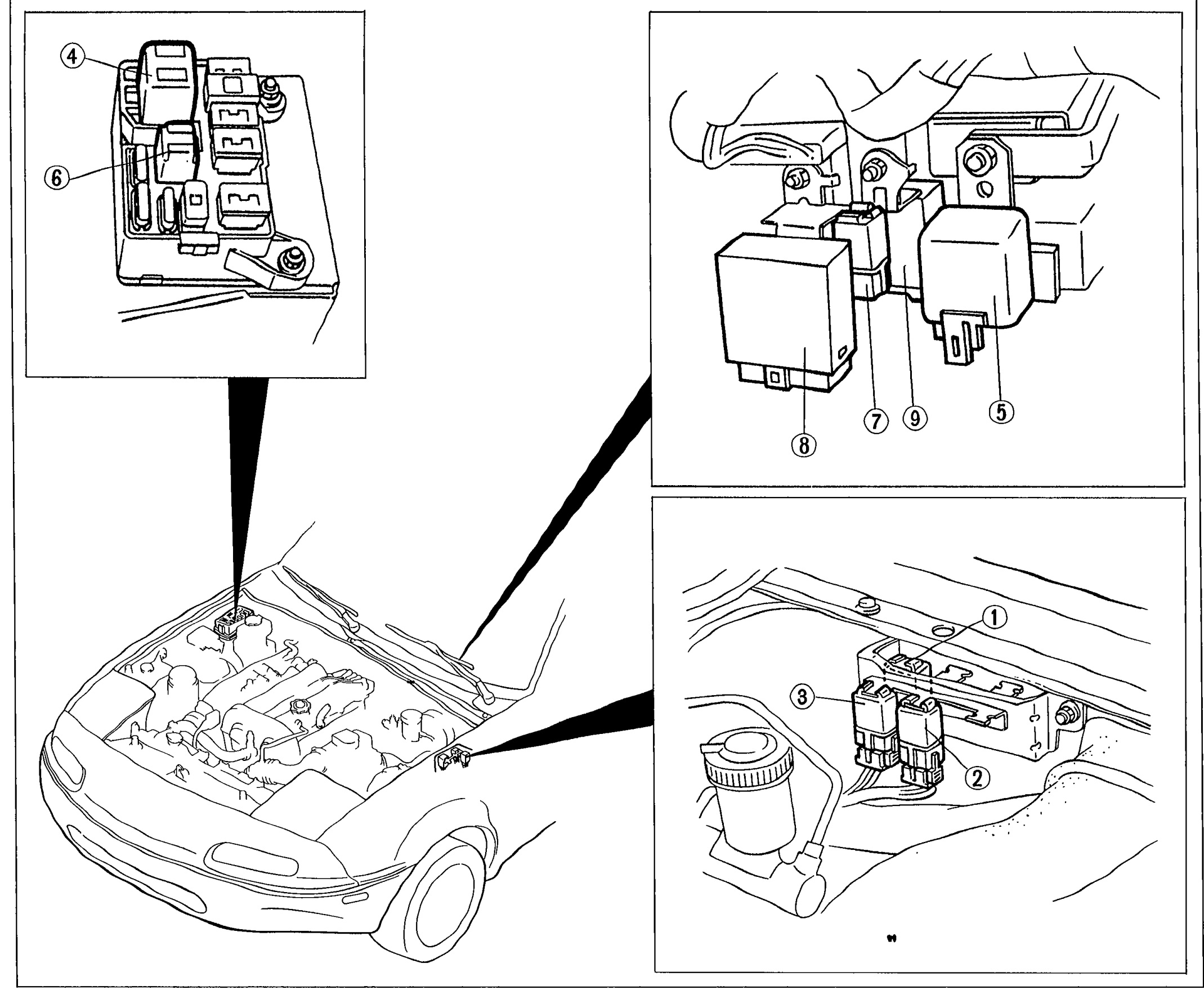

Component LocationFig. fig1
Relay locations
05U0TX-016
11(Headlight relay)
22(TNS relay)
33(Retractor relay)
44(EGI main relay)
55(Circuit-opening relay)
66(Cooling fan relay)
77(Horn relay)
88(Turn and hazard warning flasher unit)
99(Timer and buzzer unit)
NOTE
For inspection of the following relays, refer to specified Section.
• EGI main relay ... Refer to Section F
• Circuit-opening relay ... Refer to Section F
• A/C relay ... Refer to Section U
DESCRIPTION
The DRL control unit which is equipped for Canada vehicles controls the turn lights operation. Except bellow conditions, whenever the ignition switch is in ON or START position, front turn signal lights will illuminate to be running lights.
• Headlight switch ON.
• Turn signal switch ON.
• Hazard switch ON.
• Parking brake switch ON.
